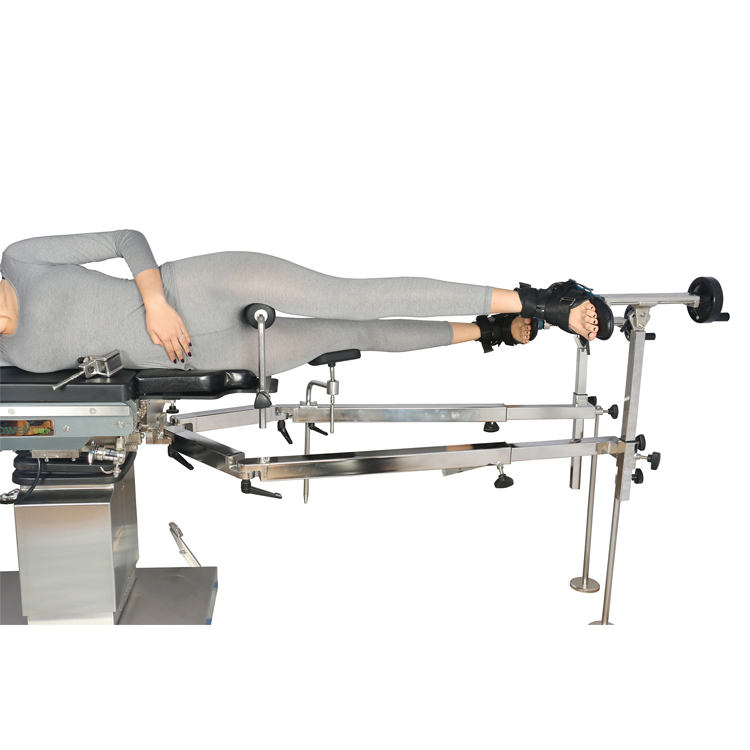

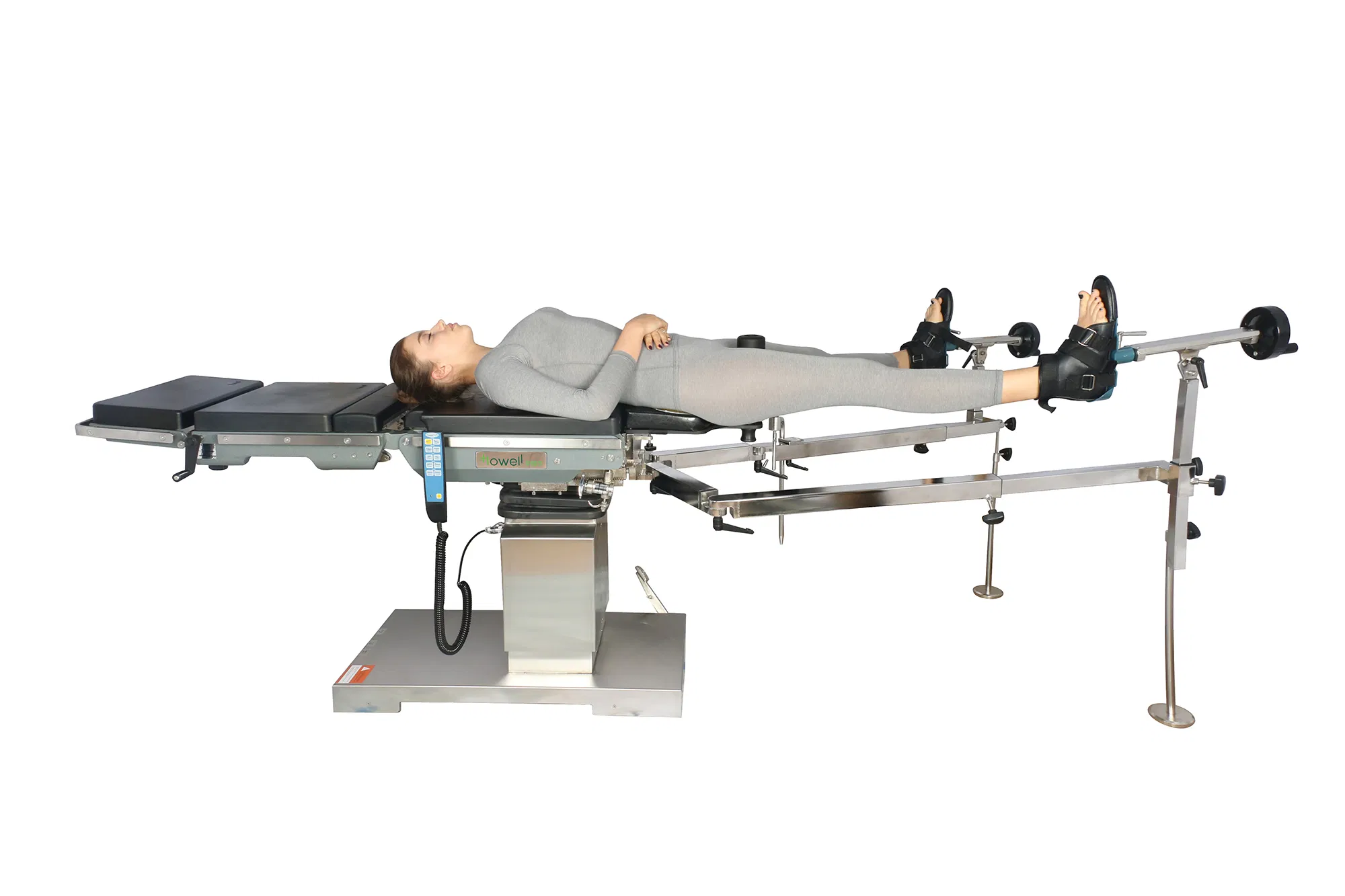

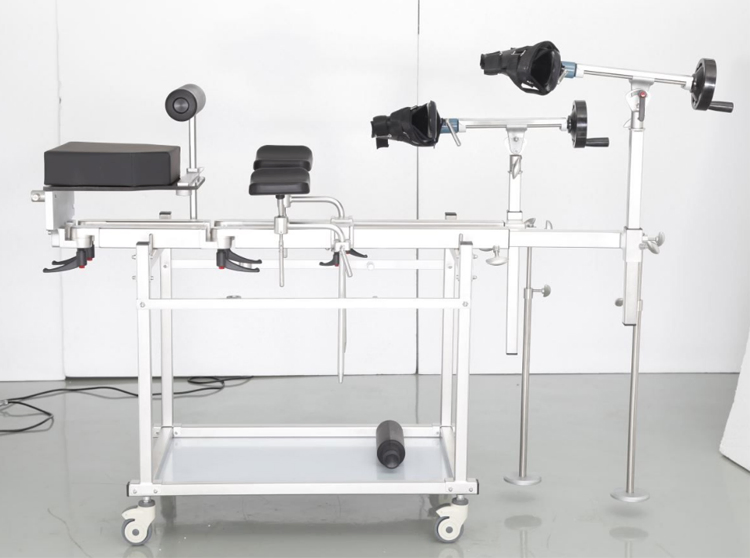

304 Stainless Steel Lower Extremity Orthopedic Traction Frame Hip Surgery Accessories
304 Stainless Steel Lower Extremity Orthopedic Traction Frame Hip Surgery Accessories
304 Stainless Steel Lower Extremity Orthopedic Traction Frame Hip Surgery Accessories
304 Stainless Steel Lower Extremity Orthopedic Traction Frame Hip Surgery Accessories
304 Stainless Steel Lower Extremity Orthopedic Traction Frame Hip Surgery Accessories
1 / 5
304 Stainless Steel Lower Extremity Orthopedic Traction Frame Hip Surgery Accessories
304 Stainless Steel Lower Extremity Orthopedic Traction Frame Hip Surgery Accessories
304 Stainless Steel Lower Extremity Orthopedic Traction Frame Hip Surgery Accessories
304 Stainless Steel Lower Extremity Orthopedic Traction Frame Hip Surgery Accessories
304 Stainless Steel Lower Extremity Orthopedic Traction Frame Hip Surgery Accessories

304 Stainless Steel Lower Extremity Orthopedic Traction Frame Hip Surgery Accessories

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.:HE-F06
Certification:ISO13485, ISO
Application:Hospital Orthopedics
C Arm Compatible:Yes
Material:304 Stainless Steel
Loading Capacity:150kg - 160kg
Traction Range:1150-1650mm
HS Code:9402900000

Product Description

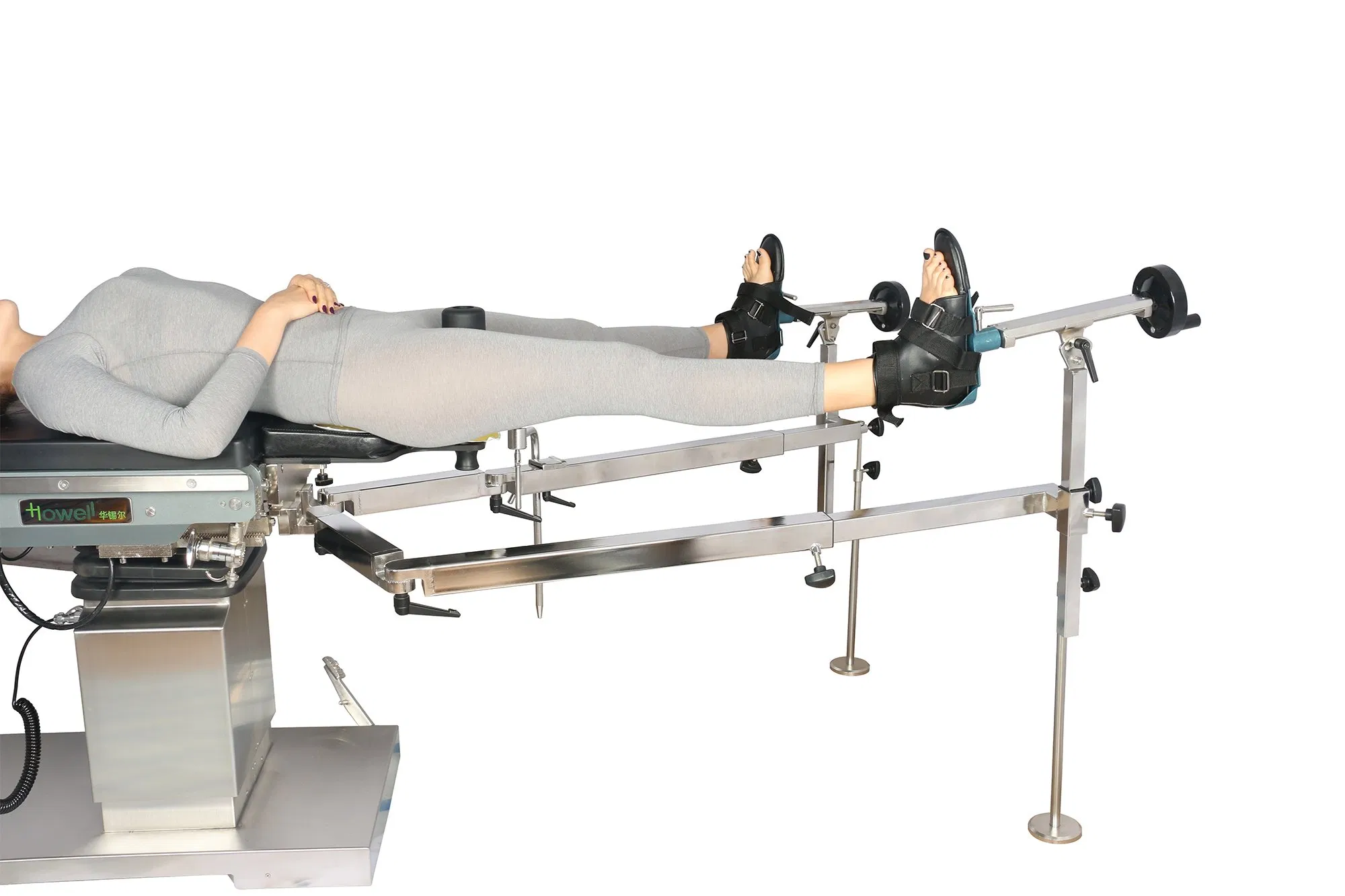

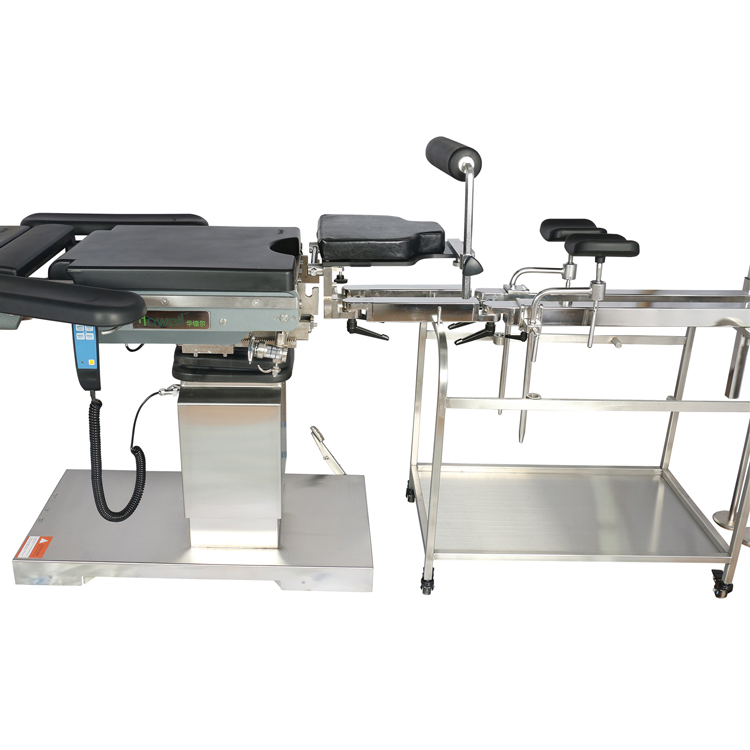

304 Stainless Steel Lower Extremity Orthopedic Traction Frame

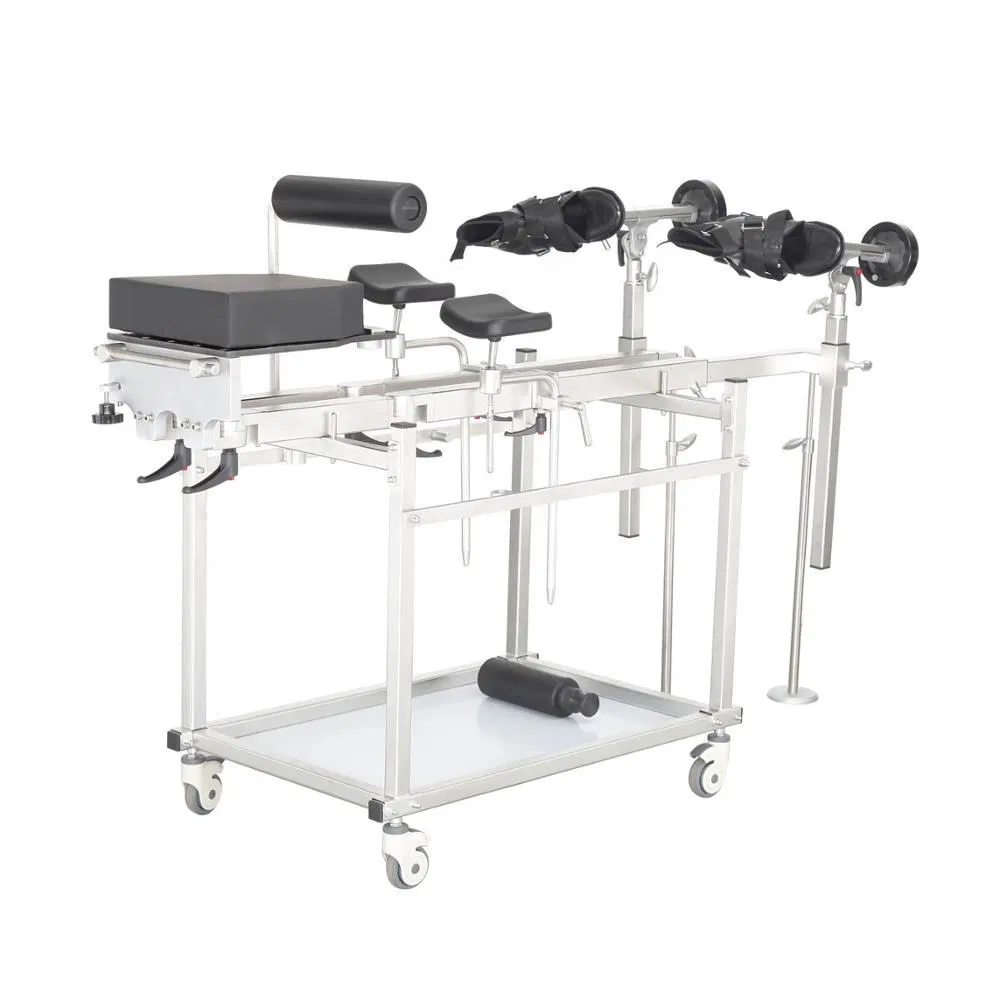

Orthopedic Traction Frame

The HE-F06 docking-type traction frame is designed for orthopedic and trauma surgery. Featuring quick installation, it combines perfectly with C-arm and X-ray machines to achieve unobstructed fluoroscopy. The two-joint design allows for outward unfolding and inward folding at any angle to meet diverse surgical requirements.

Key Advantages & Characteristics

  • Double joints with retractable traction arm and gyroscopic pelvic frame set.
  • Pelvic frame features three optional positions (left, center, right) to avoid obstruction during hip fluoroscopy.
  • 30 cm ascending and descending stroke to adapt to patients of different sizes (men, women, children).
  • 360-degree rotation of the ankle fixer and removable components for flexible application.
  • Constructed from premium 304 stainless steel with smooth, easy-to-clean surfaces.
  • Equipped with universal brake wheels for effortless movement and precise positioning.

Main Technical Parameters

Traction Range1150 - 1650 mm
Maximum Load Capacity160 kg
Maximum Traction Force400 N
Telescopic Displacement500 mm
Traction Stroke210 mm
Abduction Width120 - 770 mm
Traction Frame Weight35 KG (Total with trolley: 50 Kg)

Detailed Visuals

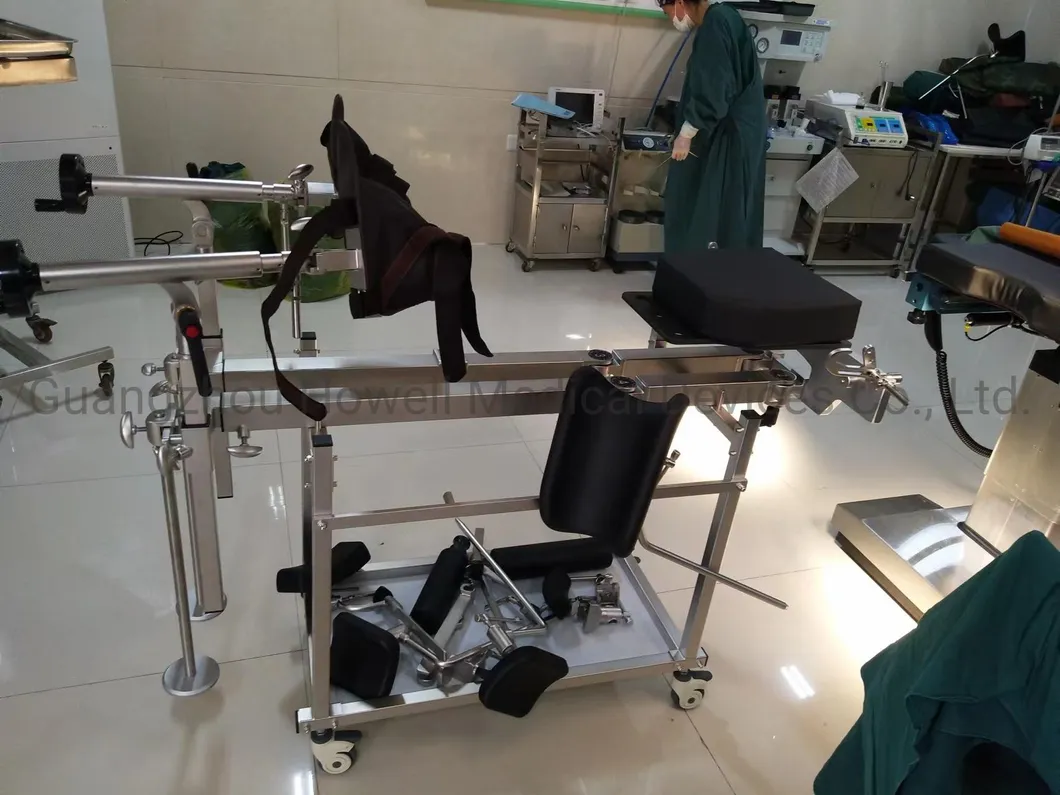

Traction Frame Detail 1

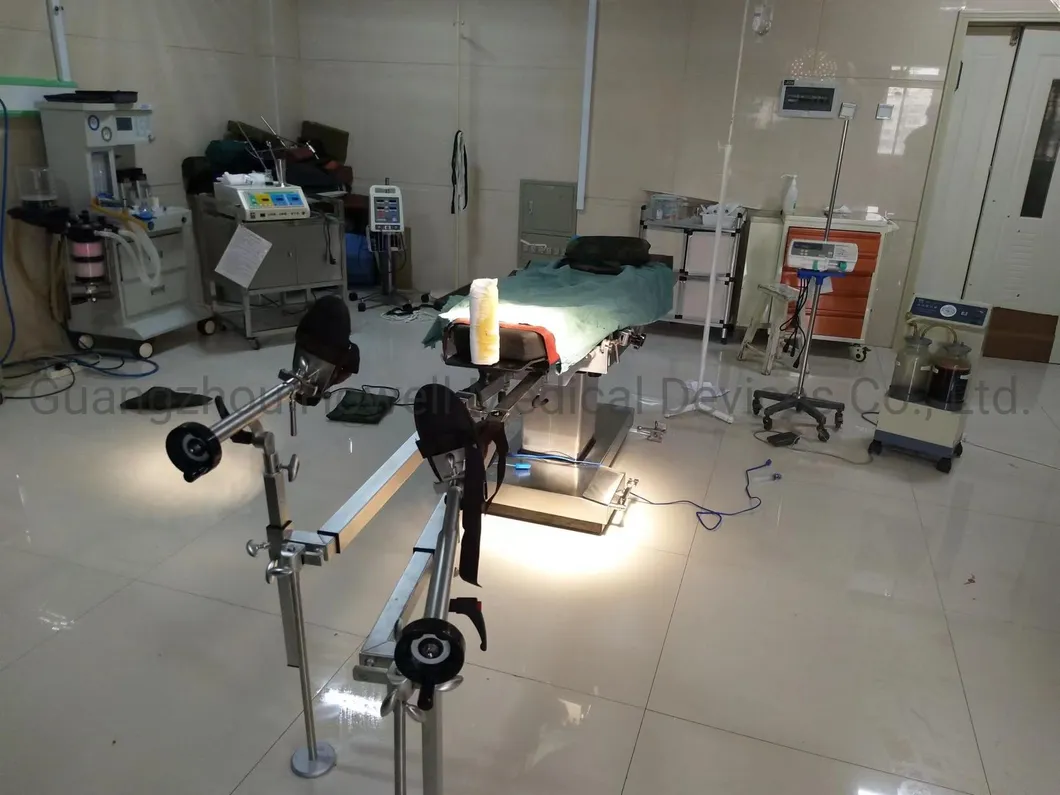

Traction Frame Detail 2
Traction Frame Detail 3

Quality Assurance & Certification

Production Process
Quality Control
Equipment Setup
ISO Certification

Professional Packing & Secure Transportation

Packing Details

Frequently Asked Questions

Q1: Is the HE-F06 traction frame compatible with all C-arms? A: Yes, it is designed with an open area and radiolucent materials to allow unimpeded irradiation for most standard C-arm X-ray machines.
Q2: What medical procedures is this equipment suitable for? A: It is ideal for trauma surgery, hip joint fluoroscopy, femoral plate surgery, intramedullary nail surgery, and tibia/fibula traction surgery.
Q3: How durable is the material used in construction? A: The frame is made of high-quality 304 stainless steel, which is corrosion-resistant, stable, and easy to disinfect for hospital environments.
Q4: What is the maximum patient weight the frame can support? A: The equipment has a maximum load capacity of 160kg, ensuring stability for a wide range of adult patients.
Q5: Does the traction frame support pediatric surgery? A: Yes, the 30 cm adjustable stroke and flexible positioning allow it to adapt to the bone structures of both adults and children.
Q6: How easy is it to move the frame between operating rooms? A: The frame is equipped with universal brake wheels, making it very easy to move, position, and lock securely during surgery.
