Aota202 Carbon Fiber Surgical Operation Table Extension Device Orthopedic Traction Frame for Various Positions
Aota202 Carbon Fiber Surgical Operation Table Extension Device Orthopedic Traction Frame for Various Positions
Aota202 Carbon Fiber Surgical Operation Table Extension Device Orthopedic Traction Frame for Various Positions
Aota202 Carbon Fiber Surgical Operation Table Extension Device Orthopedic Traction Frame for Various Positions
Aota202 Carbon Fiber Surgical Operation Table Extension Device Orthopedic Traction Frame for Various Positions
1 / 5
Aota202 Carbon Fiber Surgical Operation Table Extension Device Orthopedic Traction Frame for Various Positions
Aota202 Carbon Fiber Surgical Operation Table Extension Device Orthopedic Traction Frame for Various Positions
Aota202 Carbon Fiber Surgical Operation Table Extension Device Orthopedic Traction Frame for Various Positions
Aota202 Carbon Fiber Surgical Operation Table Extension Device Orthopedic Traction Frame for Various Positions
Aota202 Carbon Fiber Surgical Operation Table Extension Device Orthopedic Traction Frame for Various Positions

Aota202 Carbon Fiber Surgical Operation Table Extension Device Orthopedic Traction Frame for Various Positions

Customization: Available
Type: Operating Table
Kind: Orthopedics
Send Inquiry

Product Description

Basic Info.

Model NO.
AOTA202 Carbon Fiber
Certification
CE, FDA, ISO
Group
Adult
Size
1300mm*300*850mm
Material
Carbon Fiber, 304 Stainless Steel
Traction Stroke
≥180mm
Traction Range
50°~140°
Production Capacity
500 Sets/Month

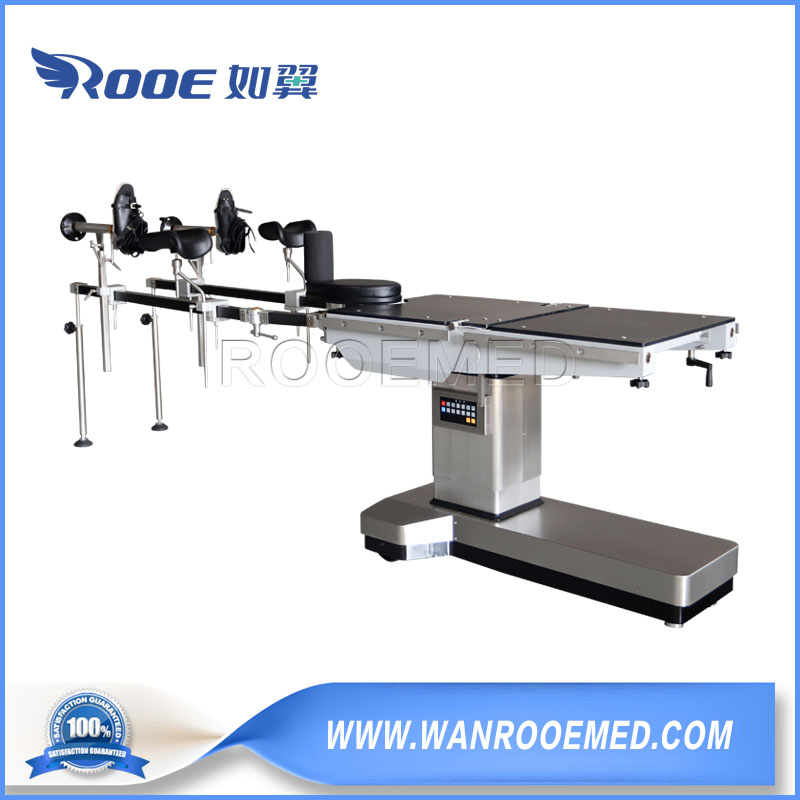

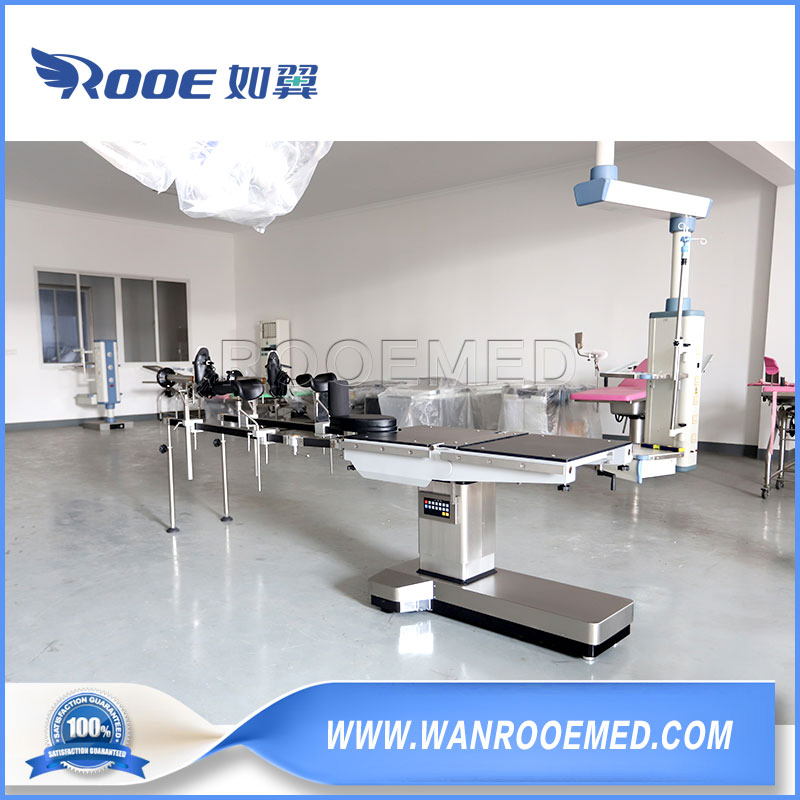

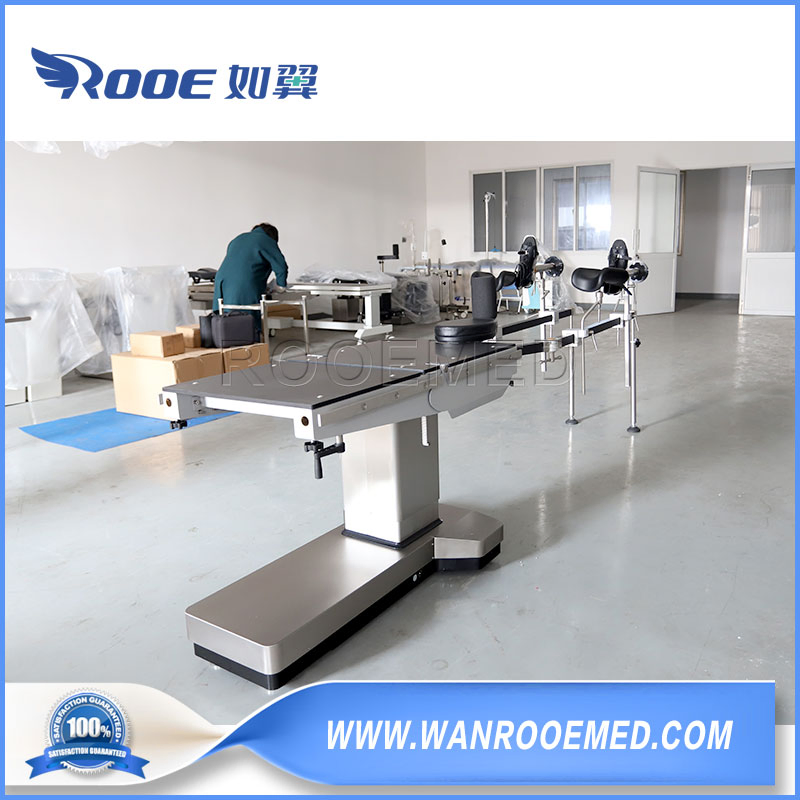

AOTA202 Carbon Fiber Surgical Operation Table Extension Device

Product Description

The Orthopedic traction rack is engineered for traction, reduction, and fixation of lower limbs during orthopedic operations. It facilitates lateral and horizontal traction, as well as internal and external extension positions. Designed to be combined with an operating table, this device significantly enhances the effectiveness of orthopedic treatments. Constructed from premium 304 stainless steel, it features an easy-to-clean, smooth surface. The perineal column and leg frame utilize medical-grade polyurethane cushions, providing optimal support for trauma and orthopedic traction surgeries.

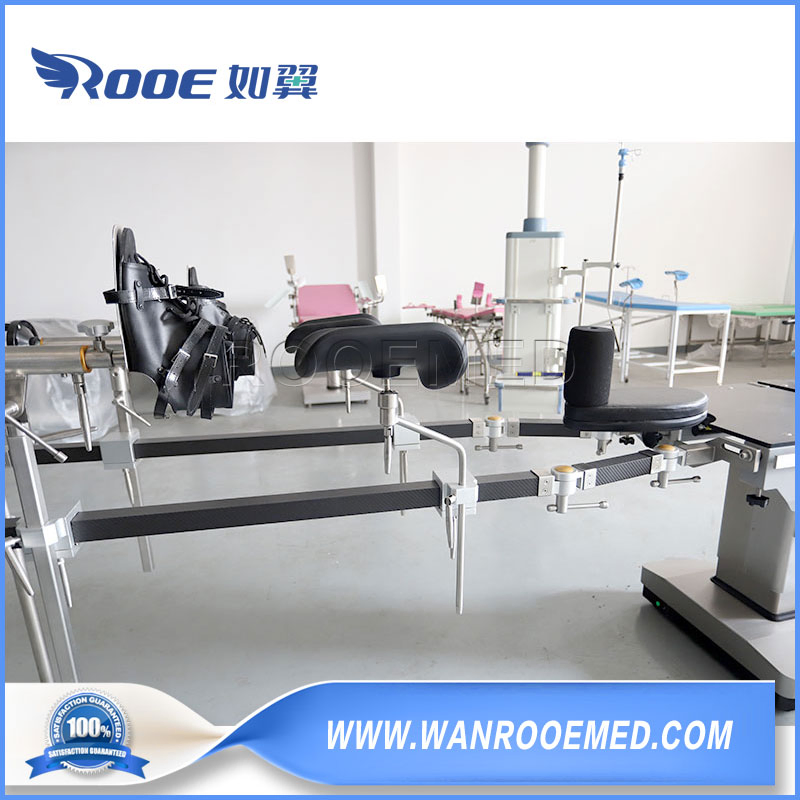

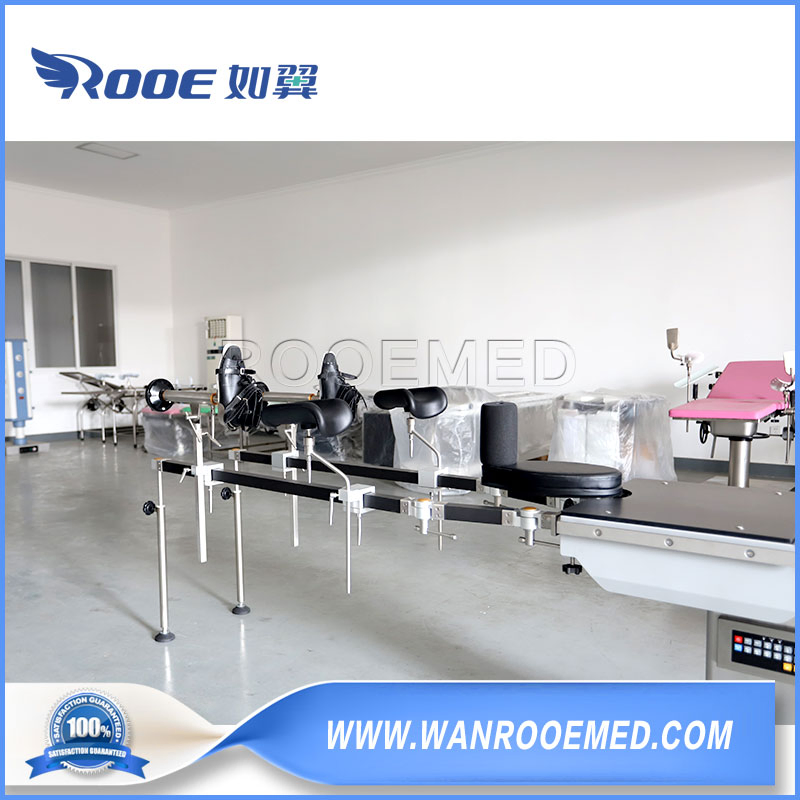

Traction Frame Details
Technical Layout

Key Features

C-Arm Compatibility: The carbon fiber material ensures the device is fully radiolucent, allowing for unobstructed X-ray imaging with a C-arm at any position, eliminating blind spots during surgery.
Precision Traction: Features a built-in scale display that accurately reflects the traction stroke, allowing surgeons to monitor and adjust precisely.
Adjustable Range: Supports various surgical positions with lateral and horizontal traction adjustments. The carbon fiber tube has no angle limits, saving positioning time.
Durable Construction: Made with 304 stainless steel and high-quality polyurethane cushions for durability and hygiene in medical environments.

Technical Parameters

Parameter Item Specification
Horizontal opening Angle of rotary arm ≥60°
Horizontal movement range of leg bracket ≥550mm
Traction stroke S ≥180mm
Horizontal movement range S2 ≥400mm
Vertical Angle of traction mechanism 50°~140°
Overall Length 1300 mm
Overall Width 300 mm
Overall Height 850 mm

Frequently Asked Questions

Q: Is the traction frame compatible with all C-arms?
A: Yes, the AOTA202 uses carbon fiber material which is radiolucent, providing an unhindered area for C-arm X-ray imaging from any angle without obstruction.
Q: What surgical procedures is this frame best suited for?
A: It is primarily designed for traction, reduction, and fixation of lower limbs, specifically for trauma surgery and orthopedic traction procedures.
Q: Can it be used with any operating table?
A: The traction frame is designed to be combined with standard surgical operating tables to assist in lower limb orthopedic operations.
Q: How does the scale display help during surgery?
A: The integrated scale display reflects the traction stroke in real-time, allowing the surgeon to accurately monitor the extension distance for safer adjustments.
Q: What materials are used for the patient cushions?
A: The perineal column and leg frame are equipped with one-time medical-grade polyurethane cushions, ensuring patient comfort and hygiene.
Q: What is the maximum traction stroke available?
A: The AOTA202 model provides a traction stroke of ≥180mm, ensuring sufficient range for various reduction requirements.
