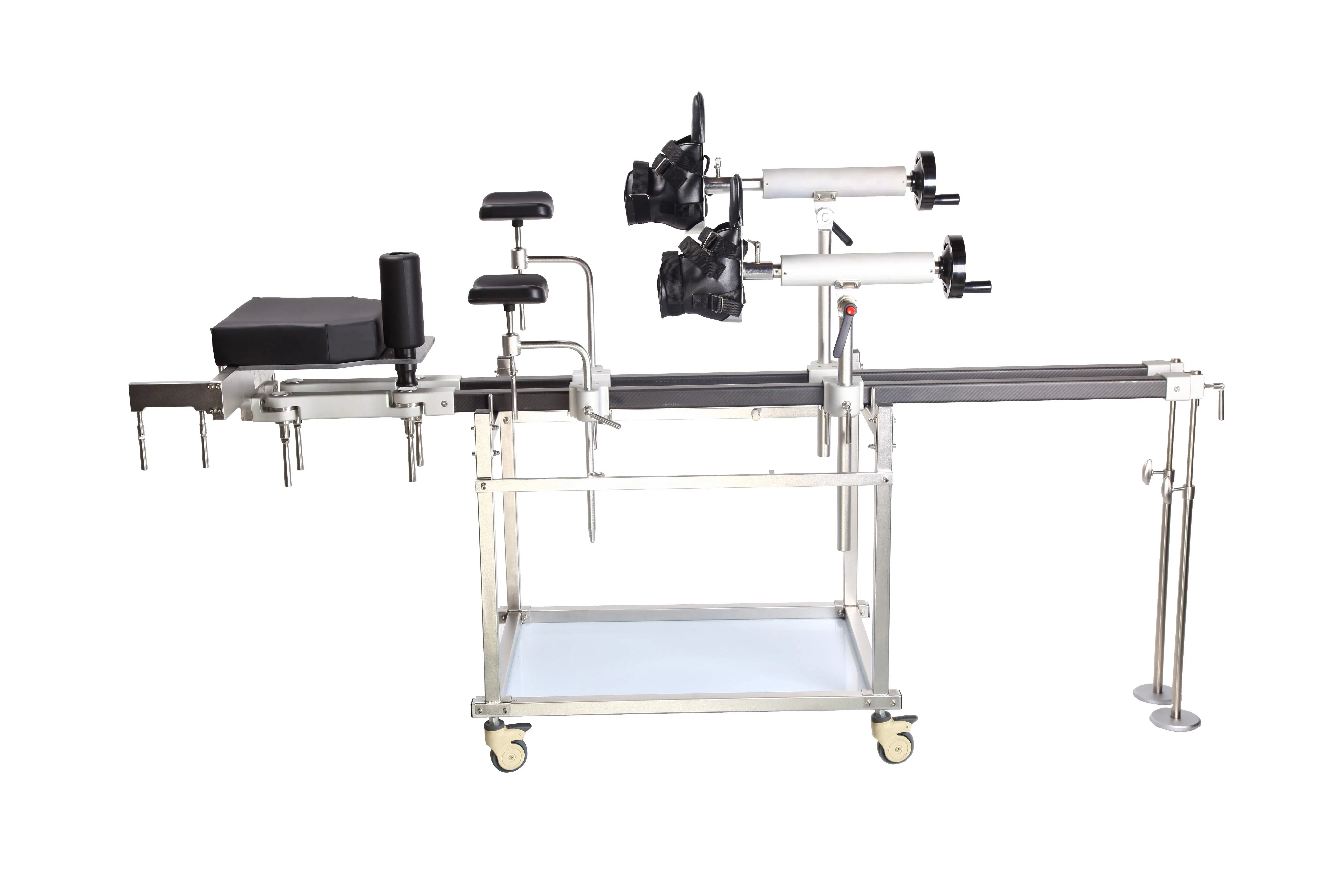

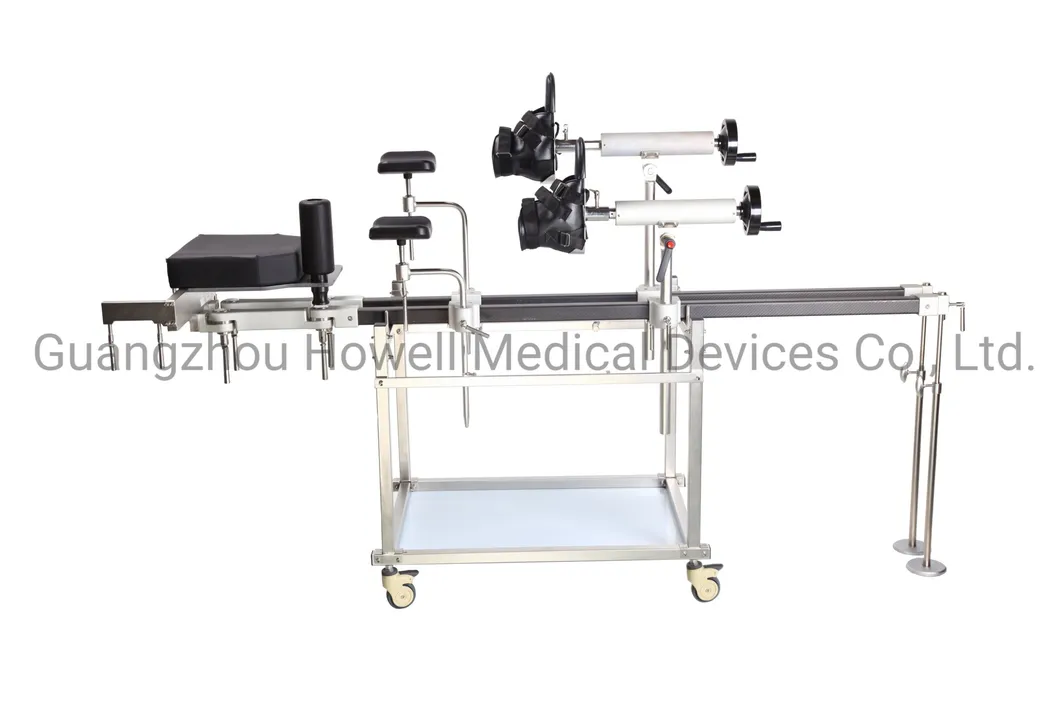

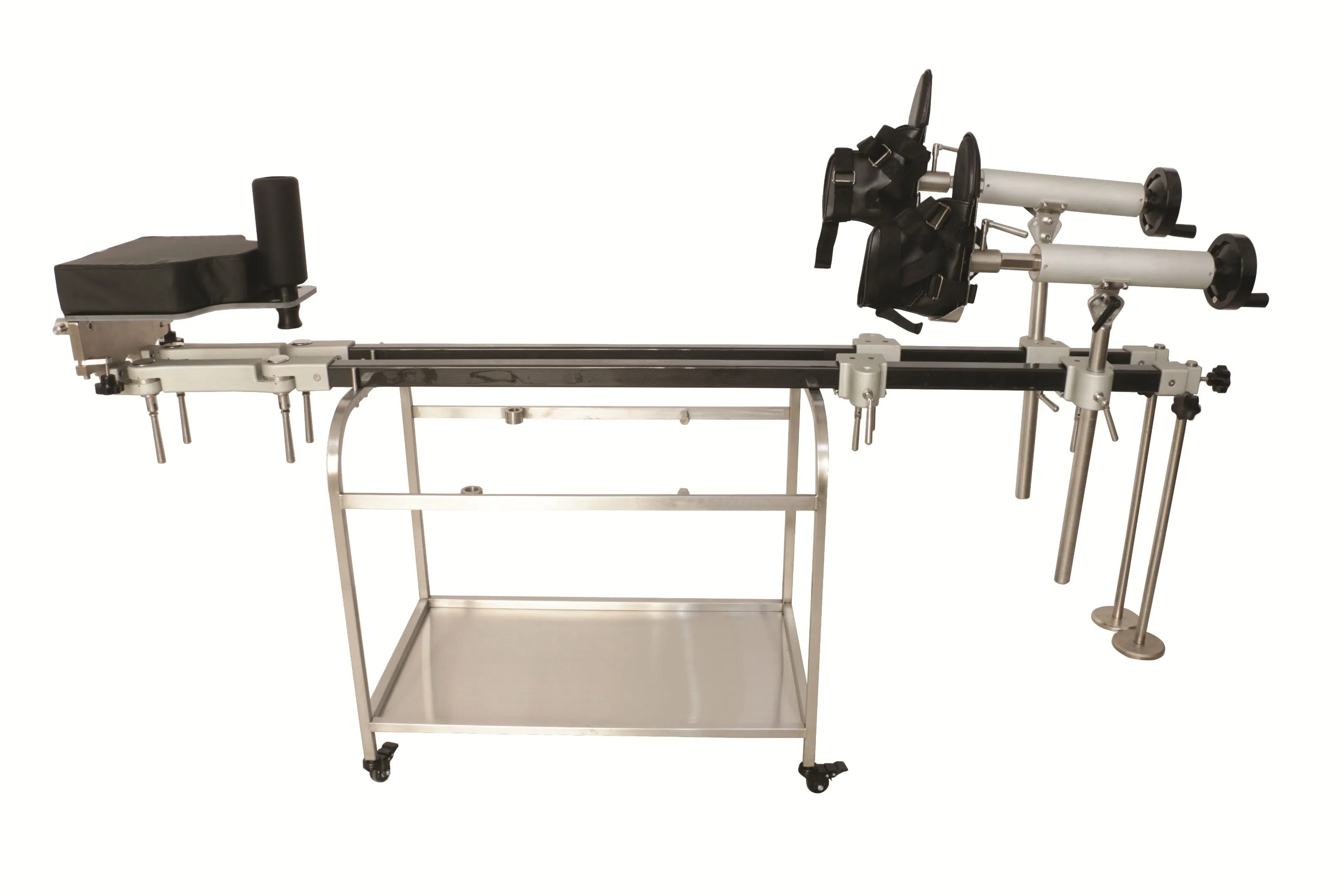

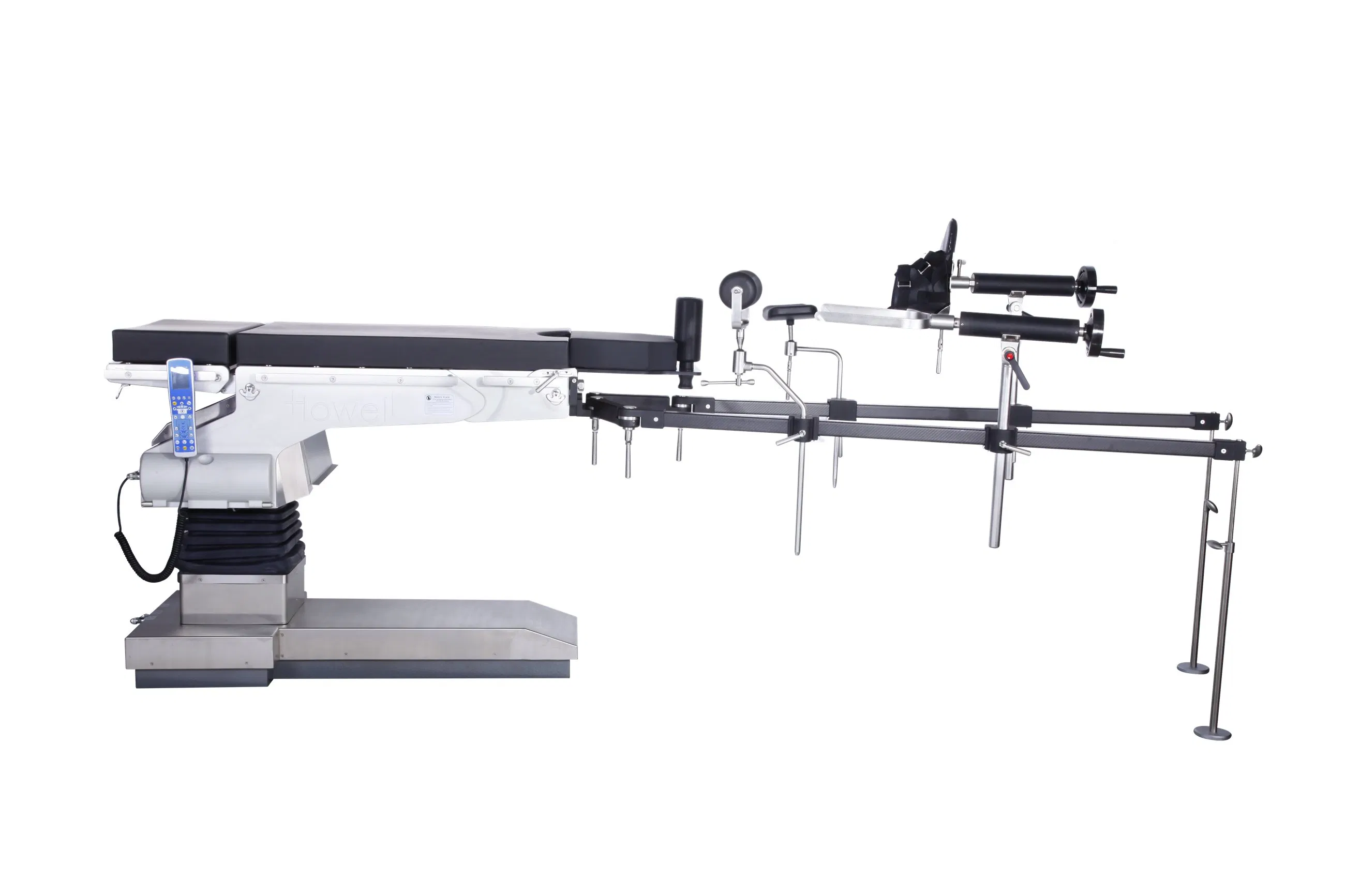

Medical Equipment Carbon Fiber Orthopedic Traction Frame

Basic Info.

Model NO.:HE-F07

Certification:ISO13485, ISO

Group:Adult

LCD Display:Without LCD Display

MOQ:1 Set

Keywords:Orthopedic Traction Table

C Arm Compatible:Yes

Material:Carbon Fiber

Loading Capacity:150kg

Warranty:1 Year

Application:Hospital

Color:Black

Product Description

Medical Equipment Orthopedic Traction Set Carbon Fiber

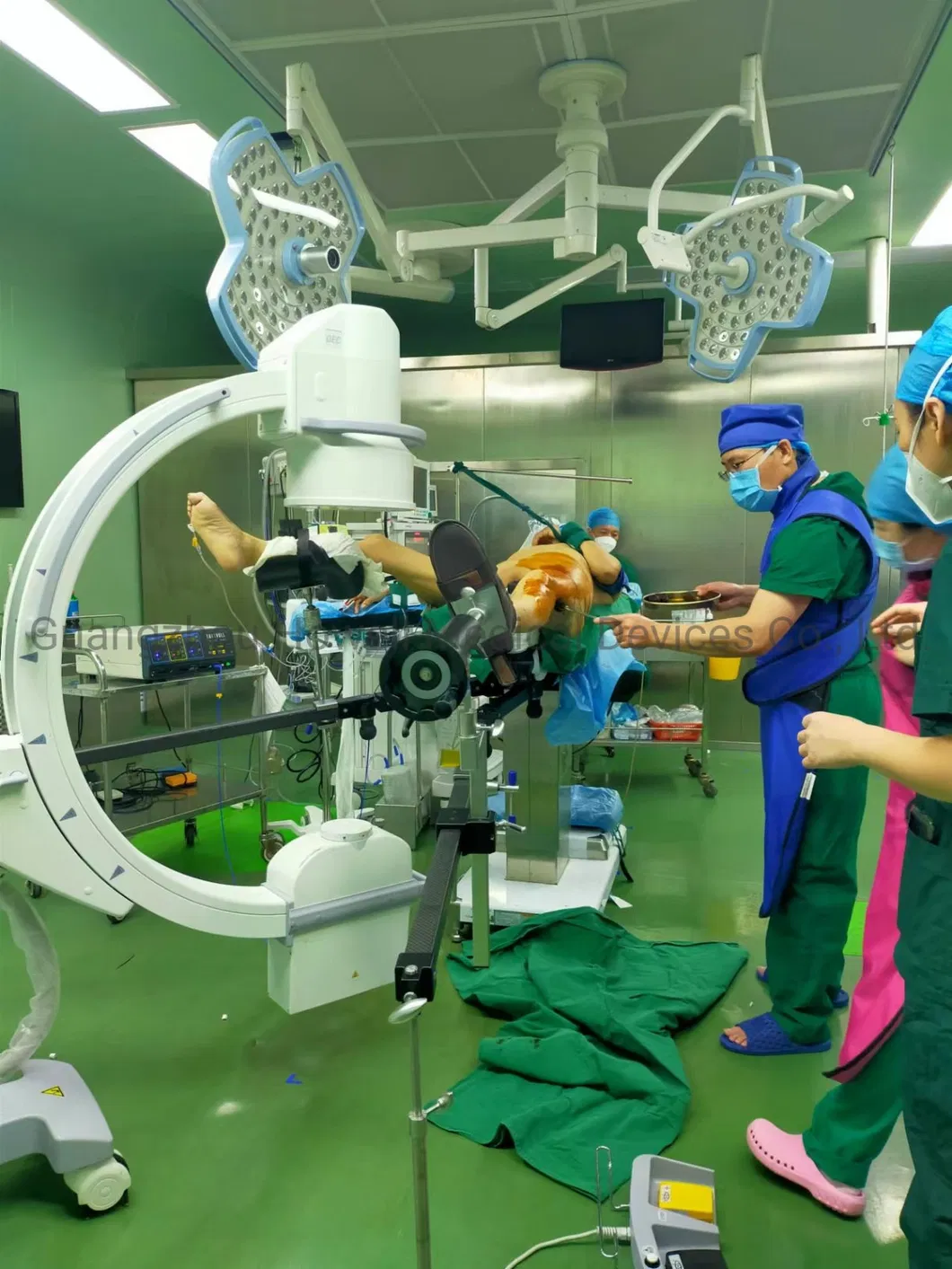

Our traction frame can be used for orthopedic/trauma surgery, with quick installation function. It can be combined with C-arm and X-ray machines to achieve unobstructed fluoroscopy. The two-joint design allows it to unfold outward and fold inward at any appropriate angle to meet surgical requirements.

Advantages and Characteristics

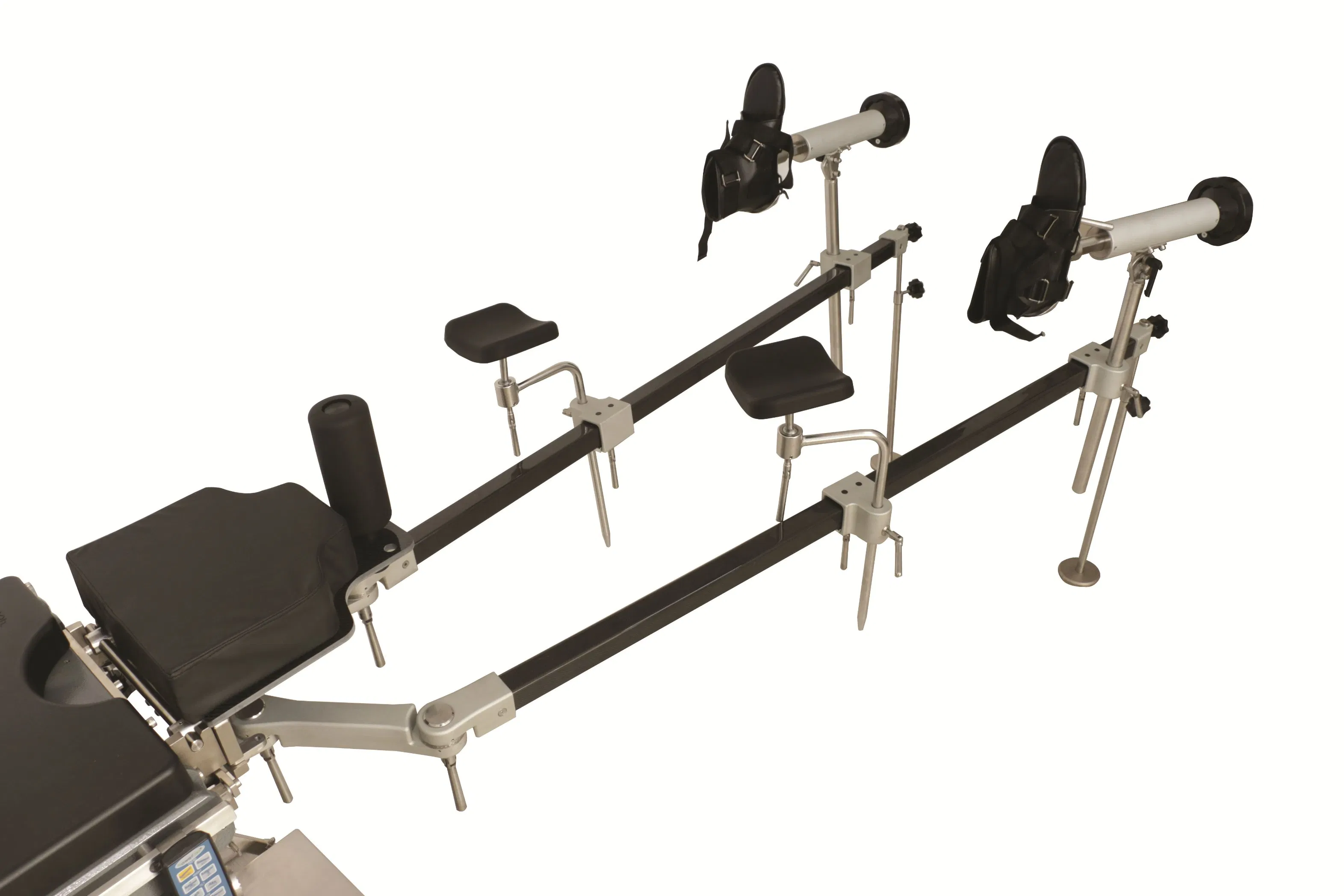

With double joints, both arms are carbon fiber material, retractable traction arm, and rotatable pelvic frame set.
The pelvic frame has three optional insertion positions (left, middle, right) to avoid obstruction during hip surgery.
The ascending and descending stroke is 30 cm, adaptable for men, women, and children.
Equipped with universal brake wheels for easy movement and location.
Stable and reliable for lower extremity surgery, femoral plate surgery, and hip replacement.

Technical Specifications

Parameter	Specification
Length	1750±30mm
Outreach Width	120mm-750mm
Highest Bearing Capacity	160kg
Maximum Traction Force	400N
Traction Stroke	200mm
Abduction Angle	90° at any appropriate angle
Boot Rotation	360° Rotation

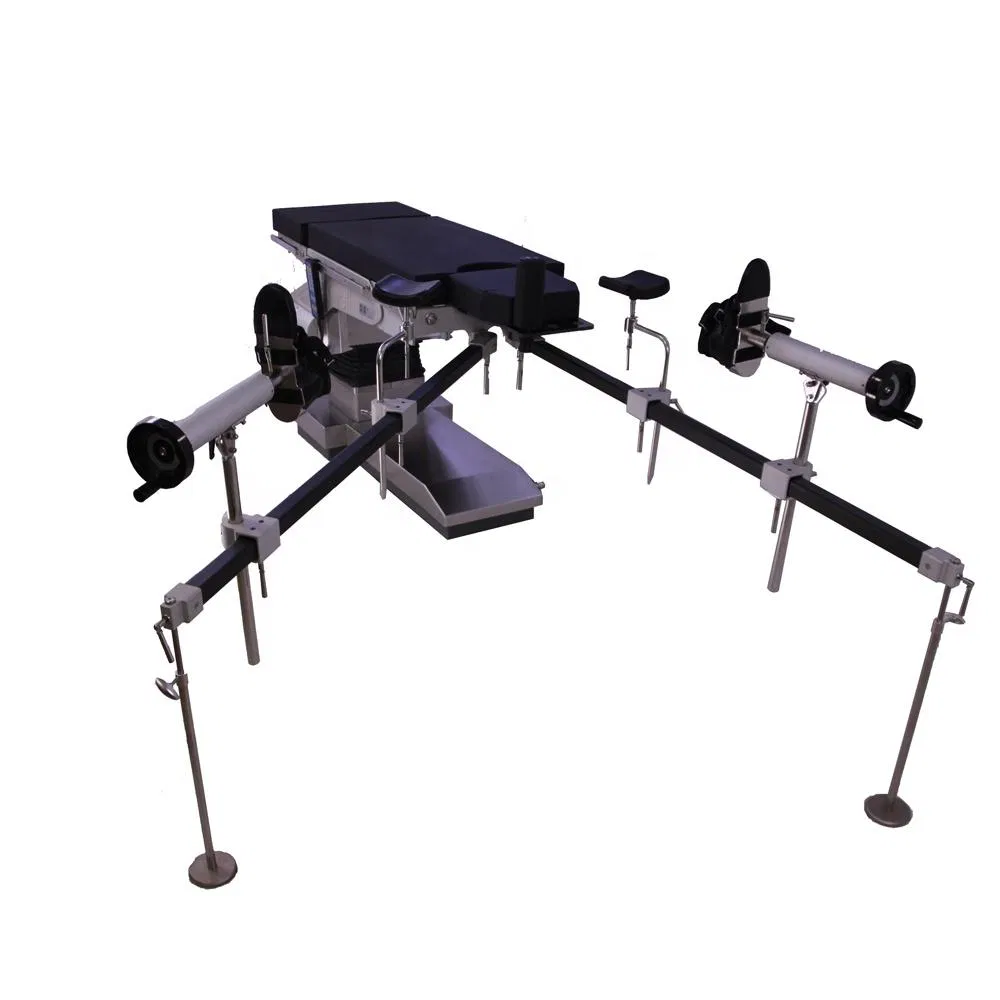

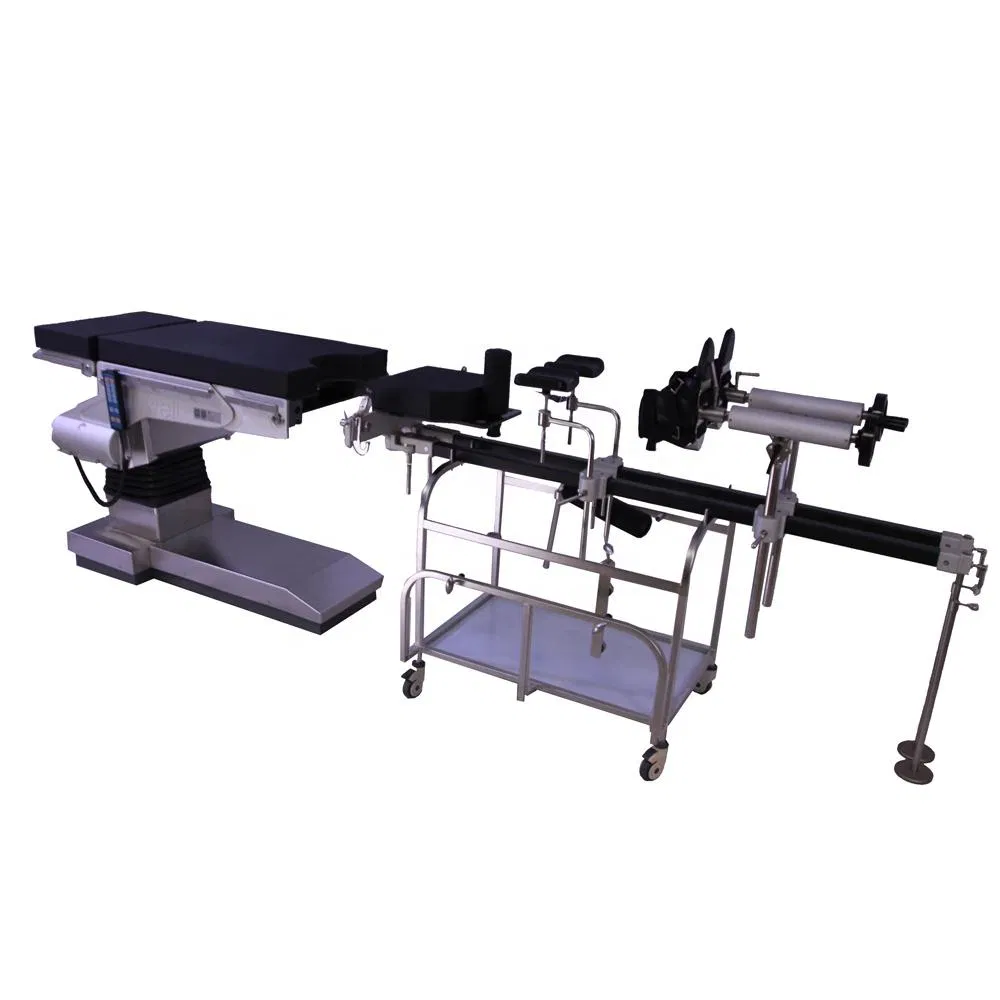

Detailed Photos

Certifications & Packing

FAQ

1. What types of surgeries can this orthopedic traction frame be used for?

It is ideal for orthopedic and trauma surgery, specifically hip X-ray fluoroscopy, femoral plate surgery, femoral intramedullary nail surgery, tibial/fibular traction, and total hip replacement.

2. How do you ensure the quality of the medical equipment?

We maintain high standards through pre-production samples before mass production and a strict final inspection process before every shipment.

3. What are the main materials used in the traction frame?

The main traction arms and components are made from high-quality carbon fiber, ensuring durability and excellent radiolucency for imaging.

4. Is the traction frame compatible with standard imaging equipment?

Yes, it is designed to be fully compatible with C-arms and X-ray machines to achieve unobstructed fluoroscopy during procedures.

5. What is the weight capacity and adjustability of the frame?

The frame has a maximum loading capacity of 160kg and features a 30cm ascending/descending stroke to accommodate patients of various sizes, including men, women, and children.

6. What delivery and payment terms are accepted?

We accept various terms including FOB, CFR, CIF, EXW and payments via T/T, L/C, Credit Card, and PayPal in multiple major currencies.
