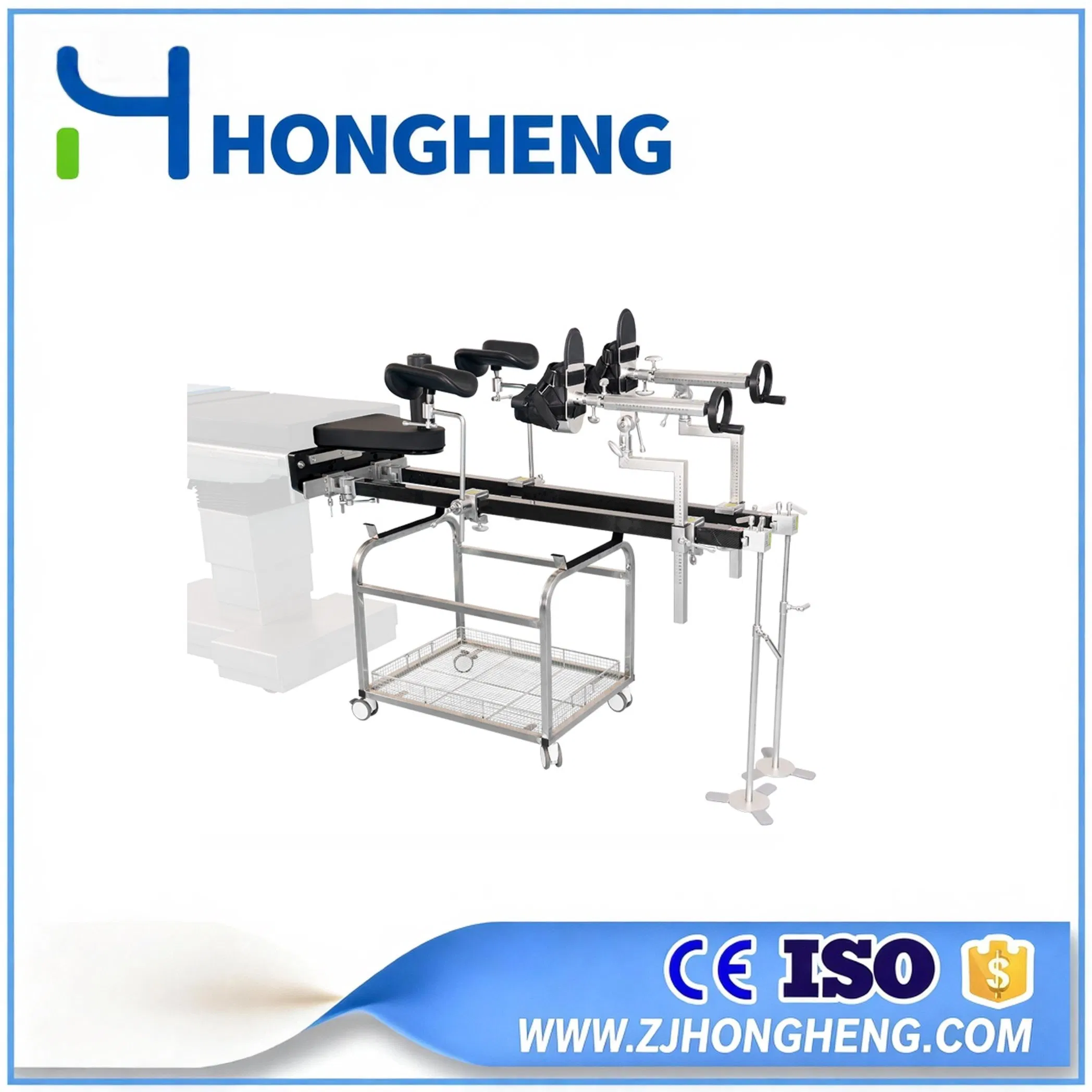

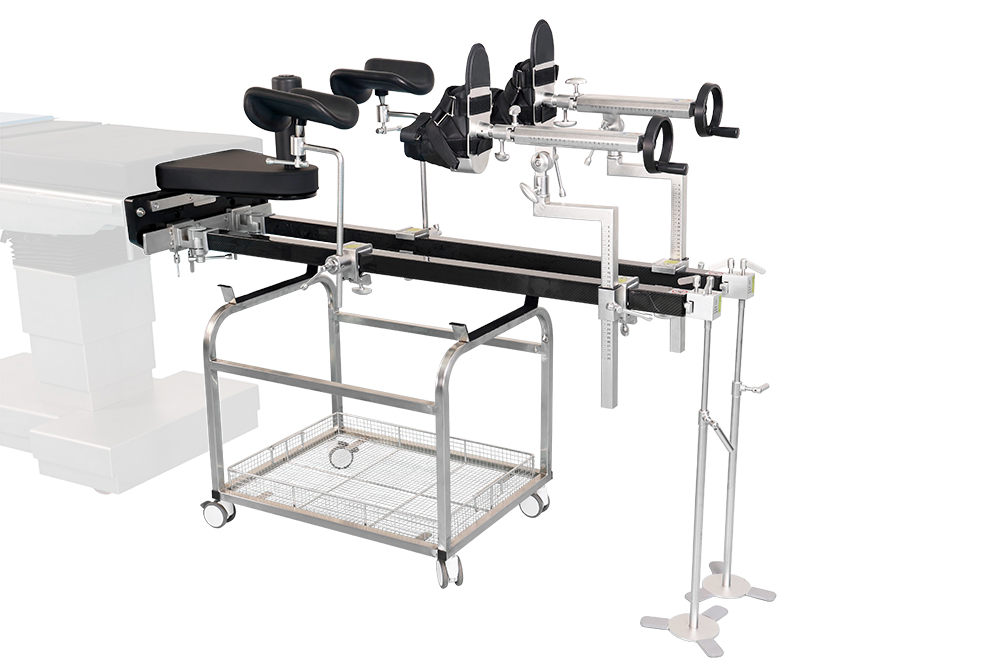

The Orthopedic Traction Rack is designed primarily for the traction, reduction, and fixation of lower limbs and other orthopedic procedures. It allows for lateral and horizontal traction, as well as internal and external extension positioning. This traction frame is intended to be used in combination with an operating table to significantly enhance surgical outcomes in trauma and orthopedic surgeries.
Constructed from high-quality 304 stainless steel, the frame features an easy-to-clean, smooth surface. The perineal column and leg frame utilize medical-grade polyurethane cushions for patient comfort and hygiene. Its open-design area is compatible with C-arm X-ray machines, ensuring unobstructed imaging during procedures.
| Parameter | Specification Details |
|---|---|
| Model | OT03 |
| Rotary Arm Horizontal Angle | ≥60° |
| Leg Bracket Movement Range (S1) | ≥550mm |
| Traction Stroke (S) | ≥180mm |
| Horizontal Movement Range (S2) | ≥400mm |
| Vertical Angle Adjustment Range | 50° ~ 140° |
| Dimensions (L*W*H) | 1300mm * 300mm * 850mm |
