Factory Wholesale Multi-Purpose Carbon Fiber Surgery Instruments Spine Orthopedic Traction Frame
Factory Wholesale Multi-Purpose Carbon Fiber Surgery Instruments Spine Orthopedic Traction Frame
Factory Wholesale Multi-Purpose Carbon Fiber Surgery Instruments Spine Orthopedic Traction Frame
Factory Wholesale Multi-Purpose Carbon Fiber Surgery Instruments Spine Orthopedic Traction Frame
Factory Wholesale Multi-Purpose Carbon Fiber Surgery Instruments Spine Orthopedic Traction Frame
1 / 5
Factory Wholesale Multi-Purpose Carbon Fiber Surgery Instruments Spine Orthopedic Traction Frame
Factory Wholesale Multi-Purpose Carbon Fiber Surgery Instruments Spine Orthopedic Traction Frame
Factory Wholesale Multi-Purpose Carbon Fiber Surgery Instruments Spine Orthopedic Traction Frame
Factory Wholesale Multi-Purpose Carbon Fiber Surgery Instruments Spine Orthopedic Traction Frame
Factory Wholesale Multi-Purpose Carbon Fiber Surgery Instruments Spine Orthopedic Traction Frame

Factory Wholesale Multi-Purpose Carbon Fiber Surgery Instruments Spine Orthopedic Traction Frame

Customization: Available
Certification: CE, ISO13485
Group: Adult
Send Inquiry

Product Description

📊 Basic Product Information

Model No.
He-F06
Keywords
Orthopedic Traction Table
C Arm Compatible
Yes
Material
304 Stainless Steel
Warranty
1 Year
Capacity
600 Sets/Month

🔬 Professional Medical Orthopedic Traction Frame

Orthopedic Traction Frame

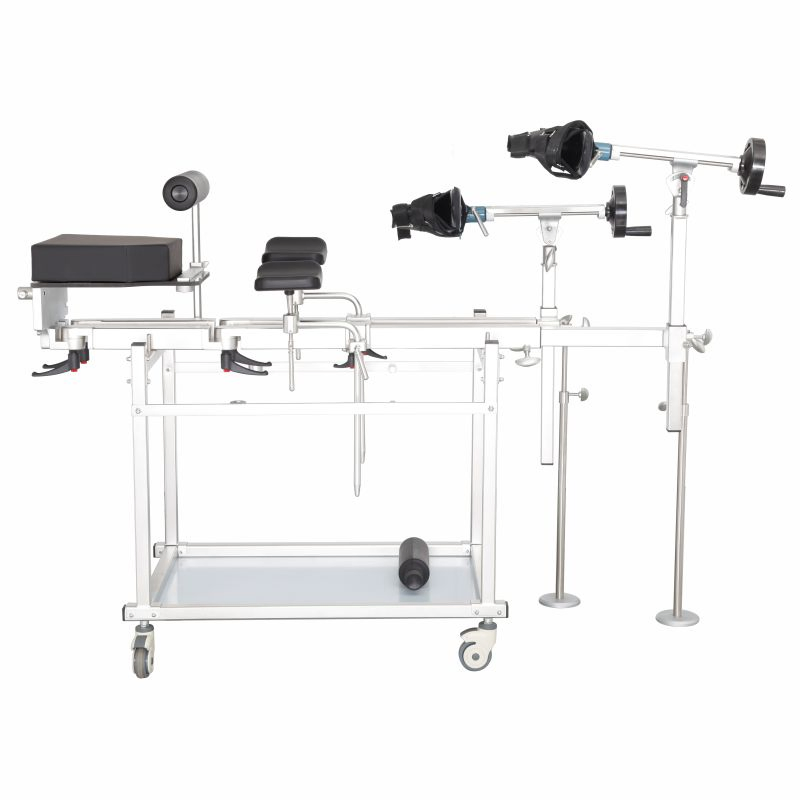

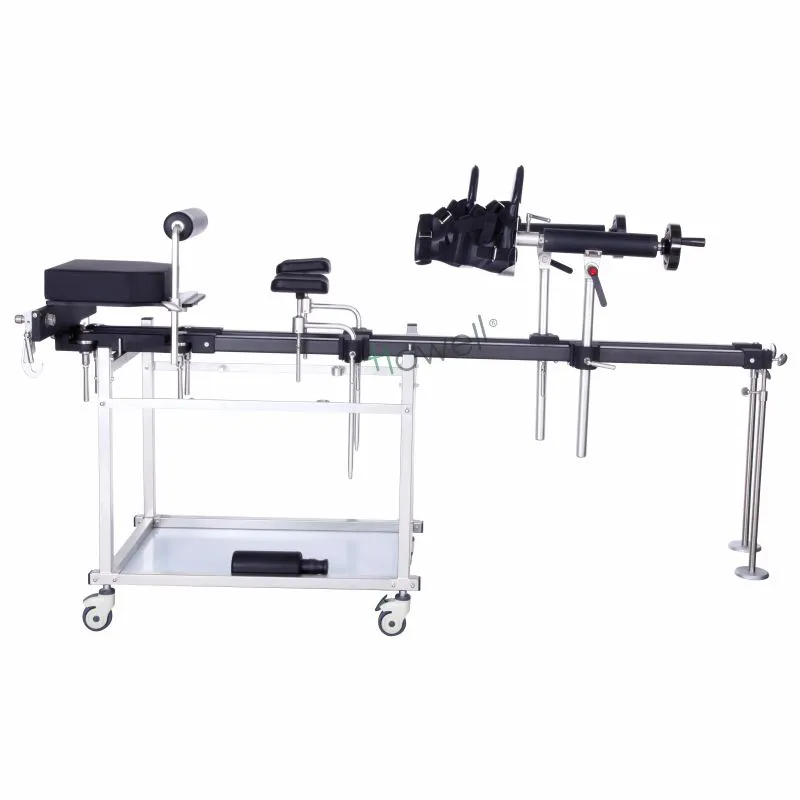

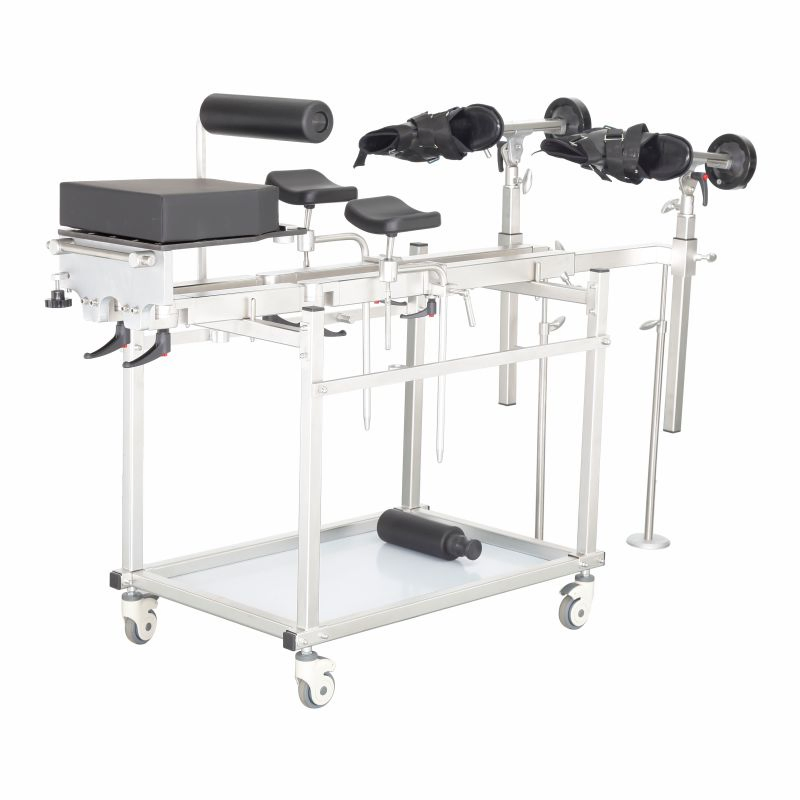

F-06 Stainless Steel Docking-type Traction Frame

The F-06 type traction frame is designed for orthopedic and trauma surgery. Featuring quick installation, it combines seamlessly with C-arm and X-ray machines for unobstructed fluoroscopy. Its two-joint design allows for outward unfolding and inward folding at any angle to meet precise surgical positioning requirements.

⭐ Advantages and Characteristics

  • Double joints with retractable traction arm and gyroscopic pelvic frame set.
  • Three optional insertion positions (left, center, right) to avoid obstruction during hip fluoroscopy.
  • Lifting column stroke of 30 cm, adaptable for men, women, and children.
  • Traction rod with large angle adjustment and telescopic design.
  • 360-degree rotation of the ankle fixer (removable for other accessories).
  • 304 stainless steel construction with smooth, easy-to-clean surfaces.
  • Universal brake wheels for effortless movement and positioning.
  • Ideal for: X-ray hip images, femoral plate surgery, intramedullary nails, tibia/fibula traction, and total hip replacement.

📐 Technical Specifications

Traction Range 1150-1650mm
Maximum Load Capacity 160kg
Maximum Traction Force 400N
Telescopic Displacement 500mm
Traction Stroke 210mm
Abduction Width 120-770mm
Traction Frame Weight 35KG

📸 Detailed Product Views

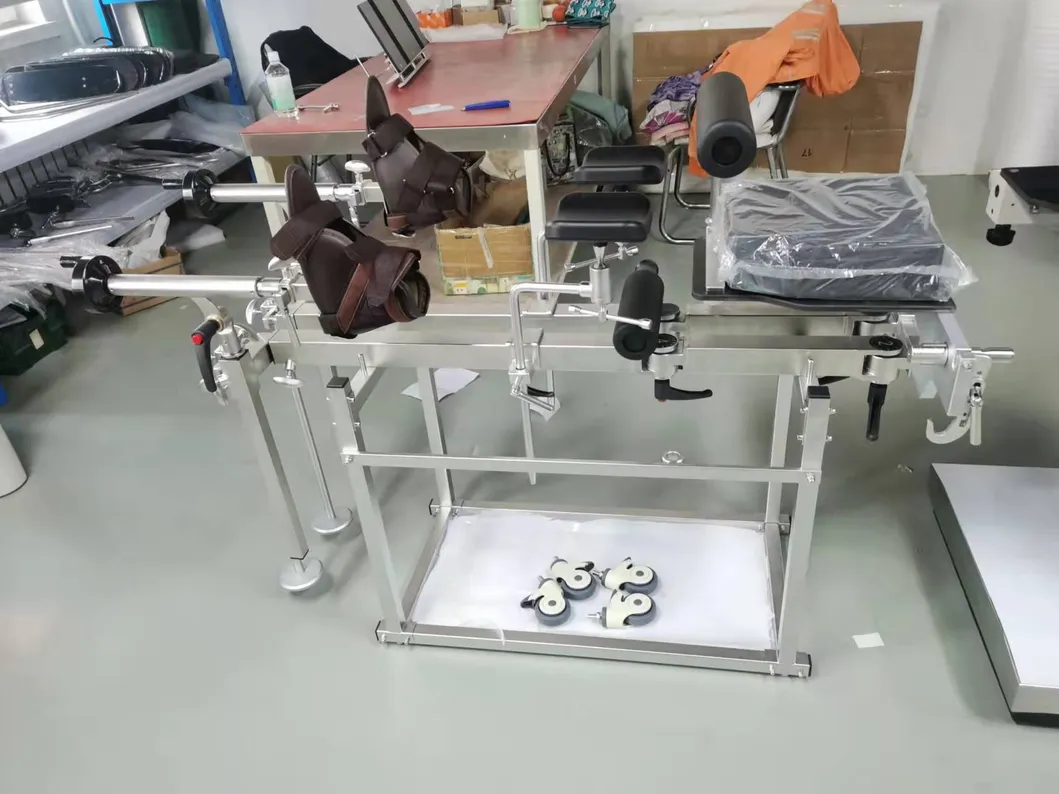

Detail 1

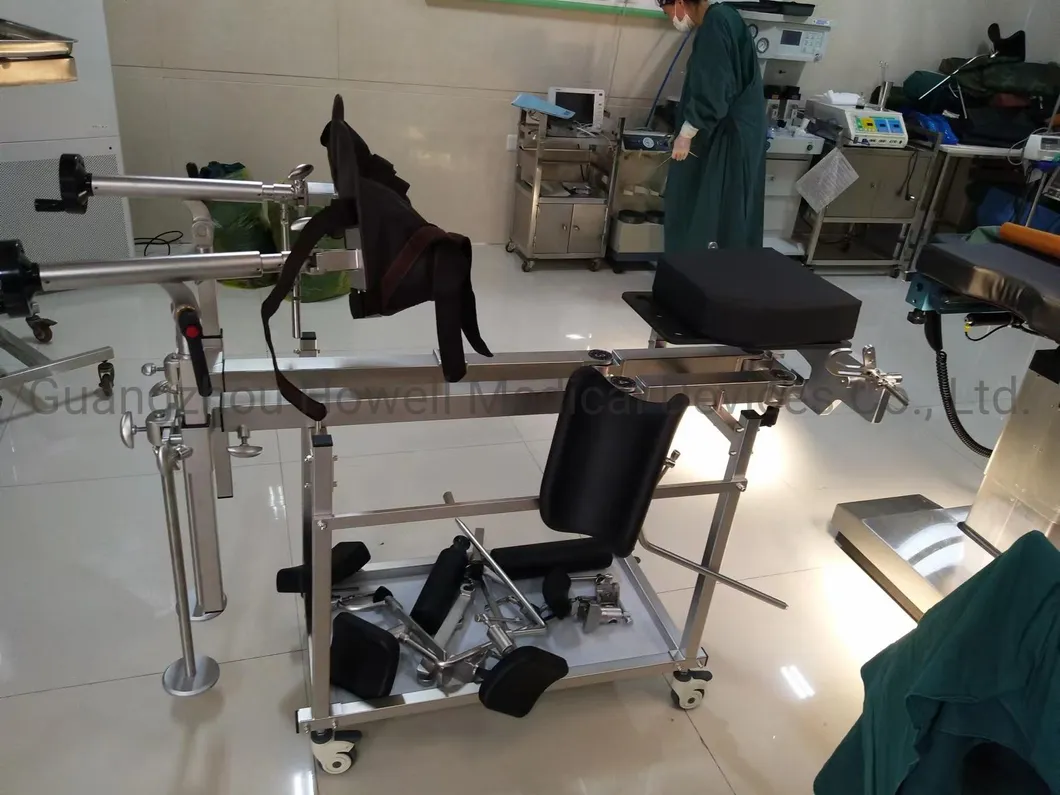

Detail 2

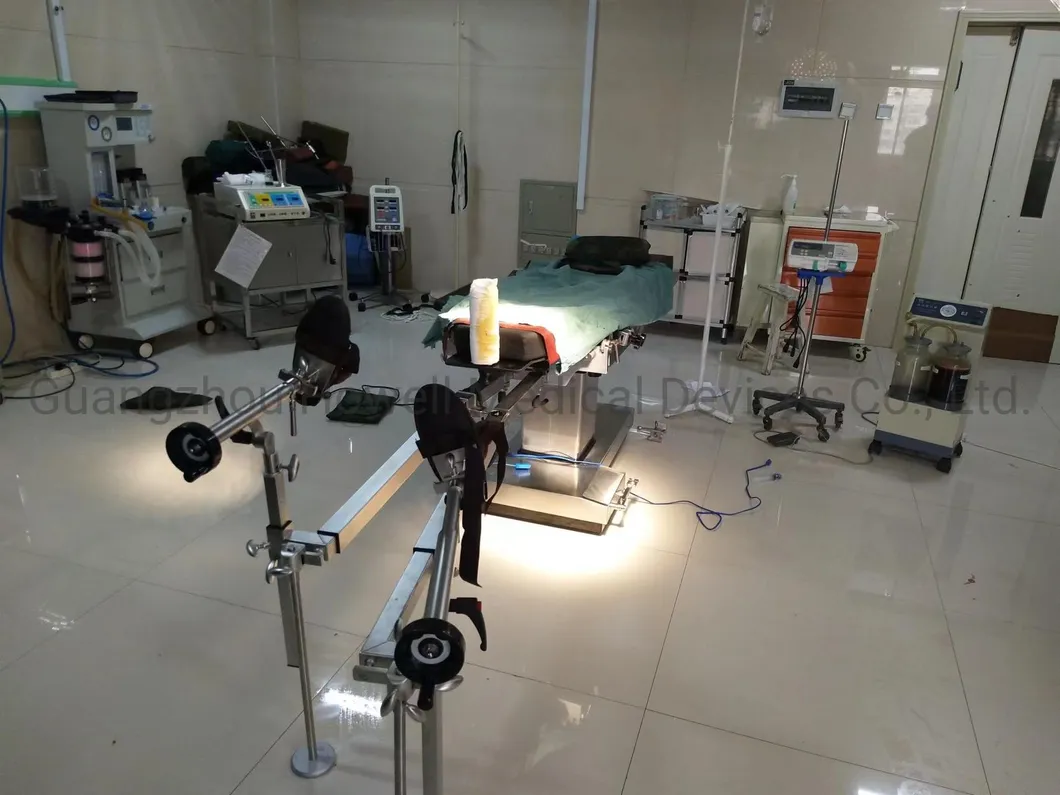

Detail 3

🏭 Manufacturing & Quality

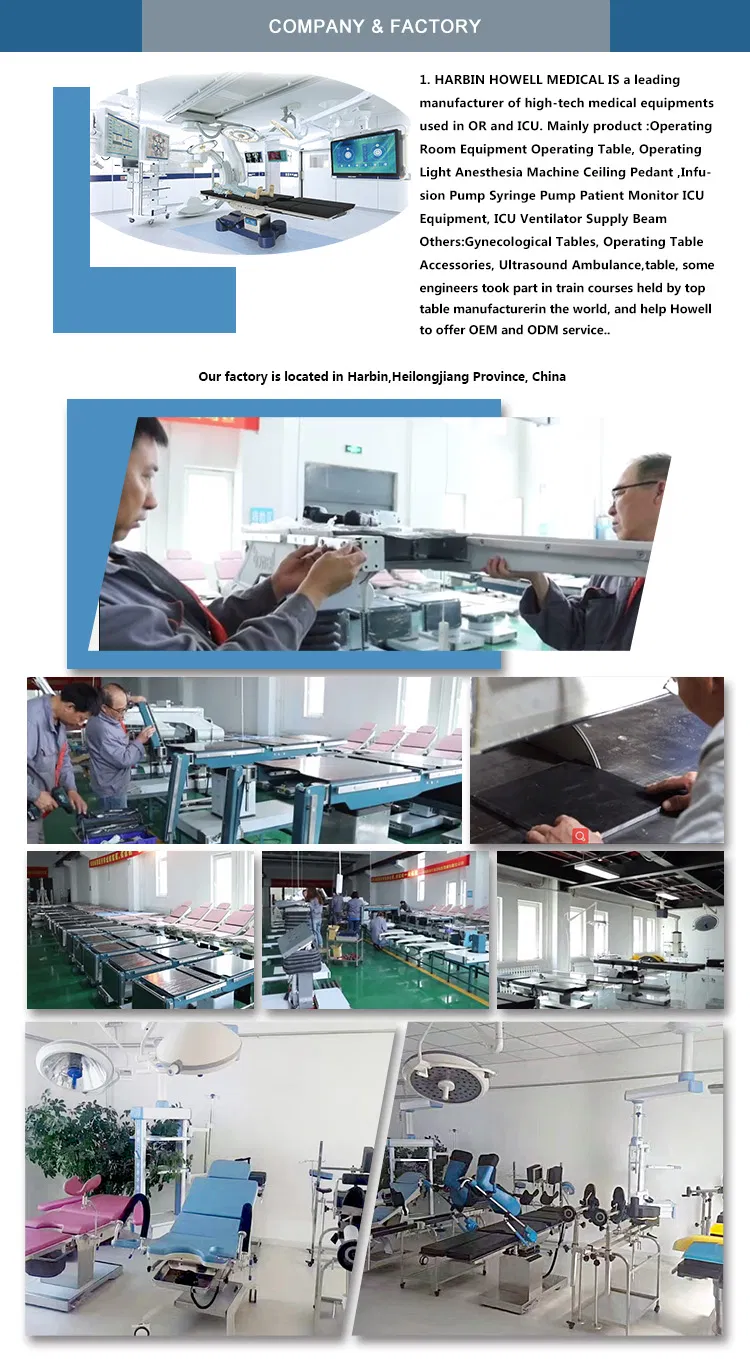

Production

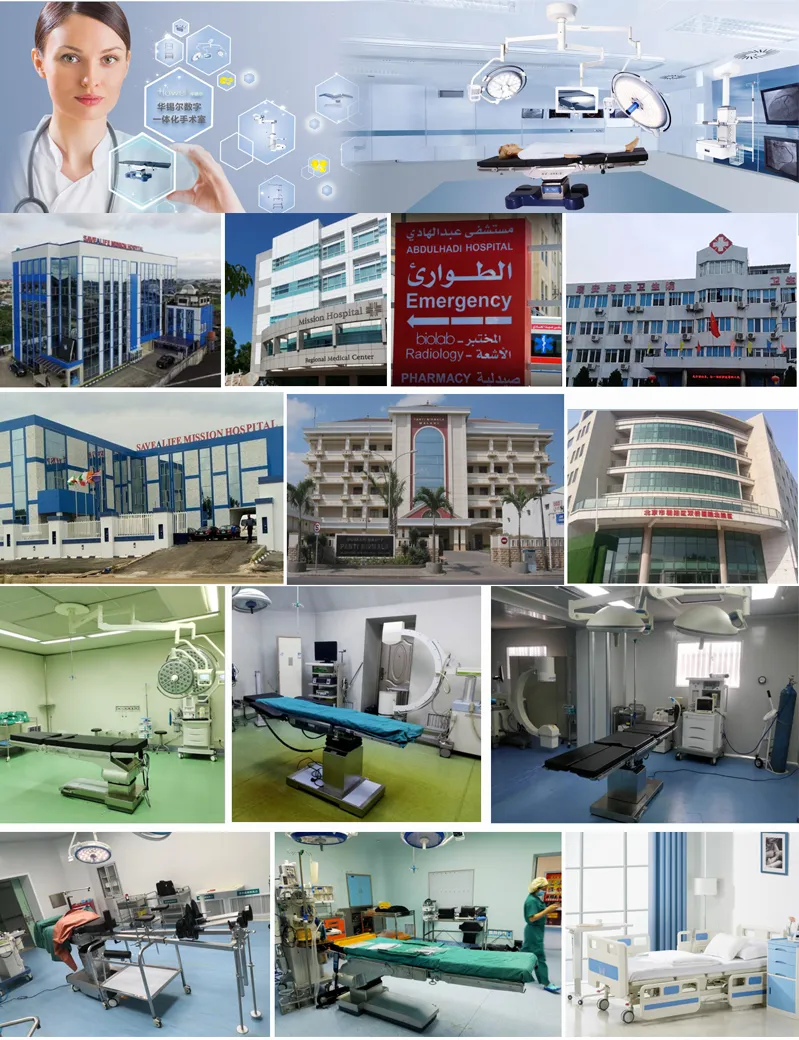

Quality Control
Facility
Certifications
Packing

❓ Frequently Asked Questions

Is this traction frame compatible with C-arm X-ray machines?
Yes, the frame is designed to provide an open area that allows for unobstructed irradiation when used with C-arm X-ray image intensifiers.
What material is used for the construction?
The entire traction frame is made of high-quality 304 stainless steel, ensuring durability and a surface that is easy to clean and sanitize.
What is the maximum patient weight the frame can support?
The maximum load capacity for the F-06 orthopedic traction frame is 160kg.
Can it be adjusted for different patient heights?
Yes, the pelvic frame on the lifting column features an ascending and descending stroke of 30cm, making it adaptable for men, women, and children.
What types of surgeries is this frame suitable for?
It is ideal for trauma surgery, hip joint fluoroscopy, femoral plate surgery, femoral intramedullary nail surgery, and tibia/fibula traction surgery.
Does the traction rod offer flexible positioning?
Absolutely. The traction rod features a telescopic design and large angle adjustment, combined with a 360-degree rotating ankle fixer for precise positioning.
