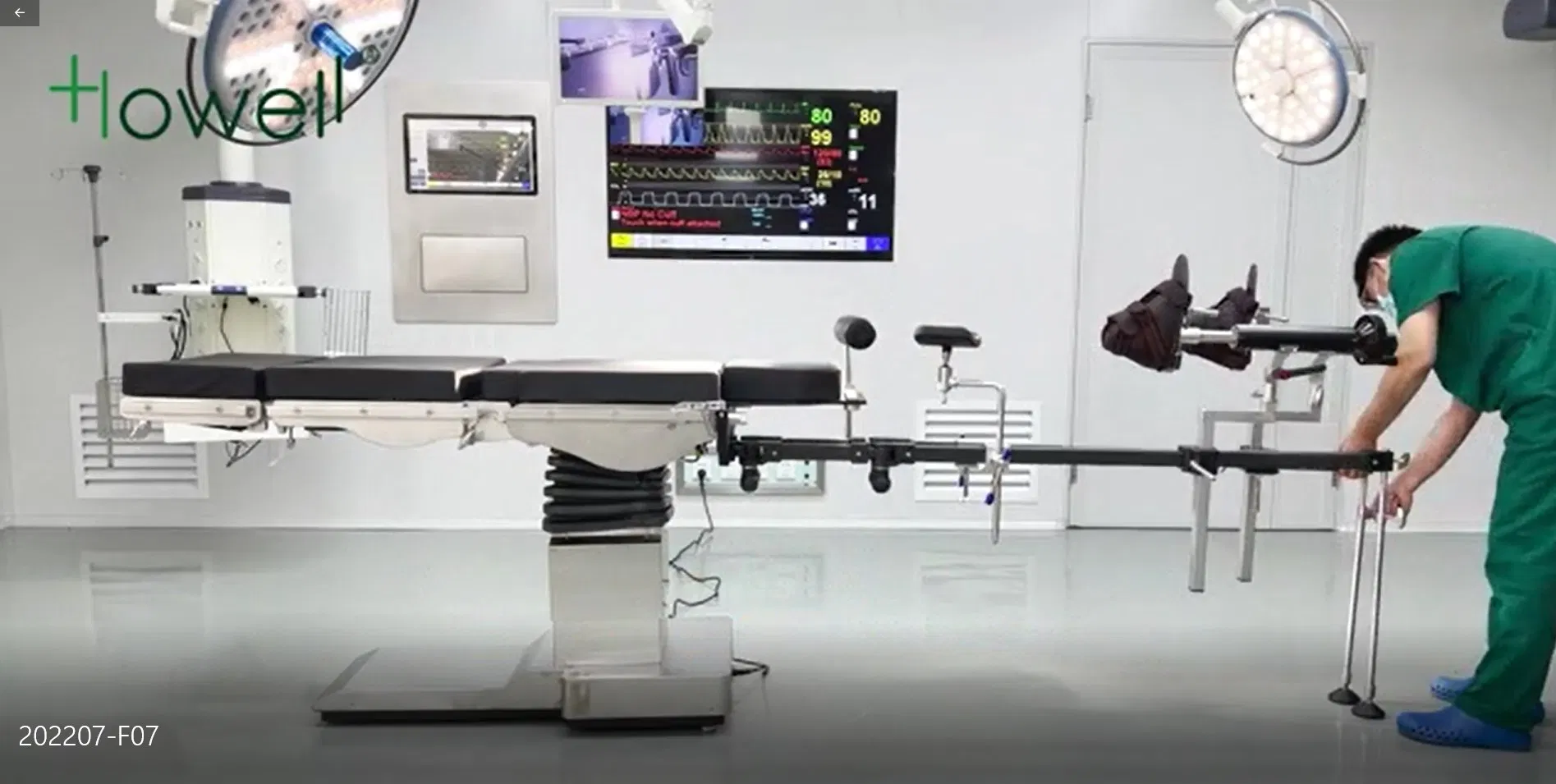

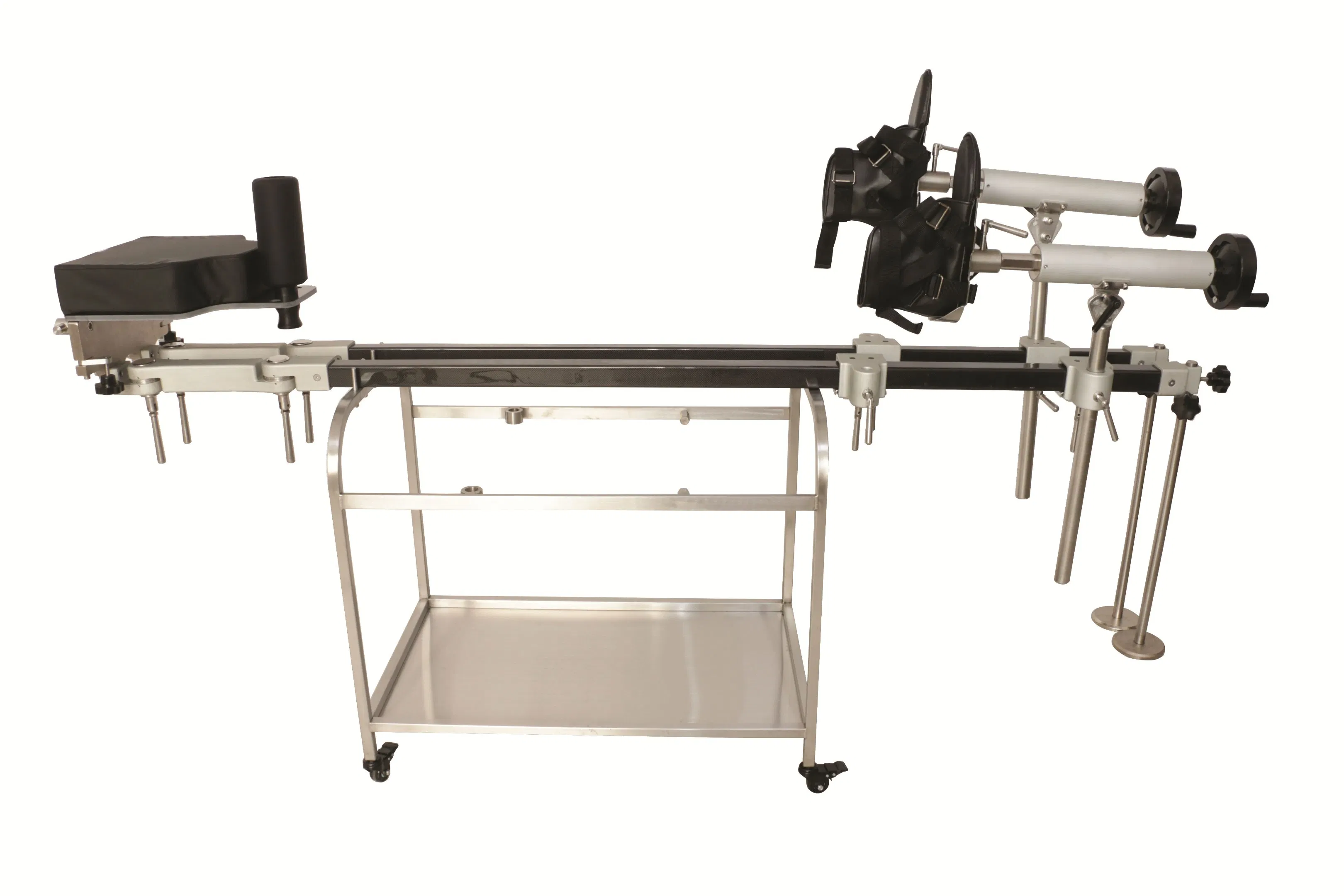

He-F07 Orthopedic Traction Carbon Fiber Docking-Type Traction Frame
He-F07 Orthopedic Traction Carbon Fiber Docking-Type Traction Frame
He-F07 Orthopedic Traction Carbon Fiber Docking-Type Traction Frame
He-F07 Orthopedic Traction Carbon Fiber Docking-Type Traction Frame
He-F07 Orthopedic Traction Carbon Fiber Docking-Type Traction Frame
1 / 5
He-F07 Orthopedic Traction Carbon Fiber Docking-Type Traction Frame
He-F07 Orthopedic Traction Carbon Fiber Docking-Type Traction Frame
He-F07 Orthopedic Traction Carbon Fiber Docking-Type Traction Frame
He-F07 Orthopedic Traction Carbon Fiber Docking-Type Traction Frame
He-F07 Orthopedic Traction Carbon Fiber Docking-Type Traction Frame

He-F07 Orthopedic Traction Carbon Fiber Docking-Type Traction Frame

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO.
HE-F07
Certification
ISO13485, ISO
Application
Hospital / Orthopedic Surgery
Material
Carbon Fiber
C Arm Compatible
Yes
Loading Capacity
150kg - 160kg
Warranty
1 Year
Packing
Wooden Case
🏥

Product Description

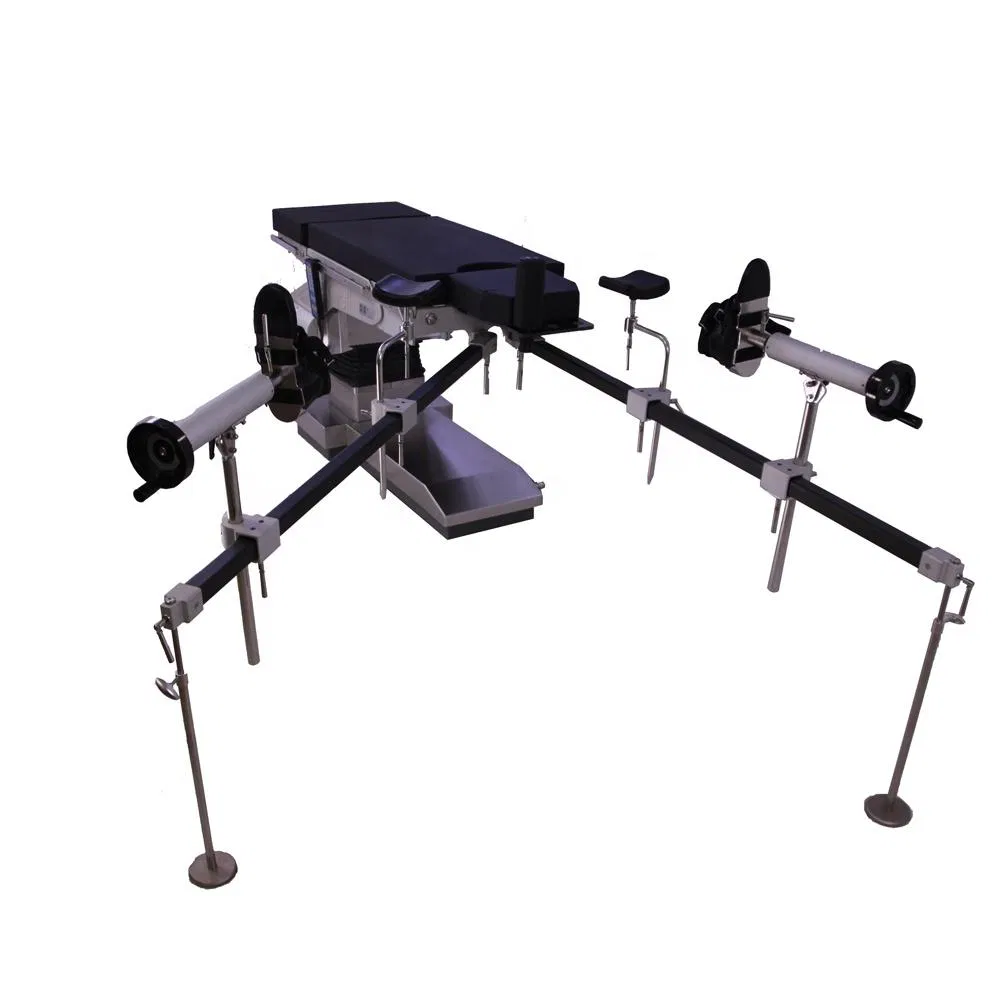

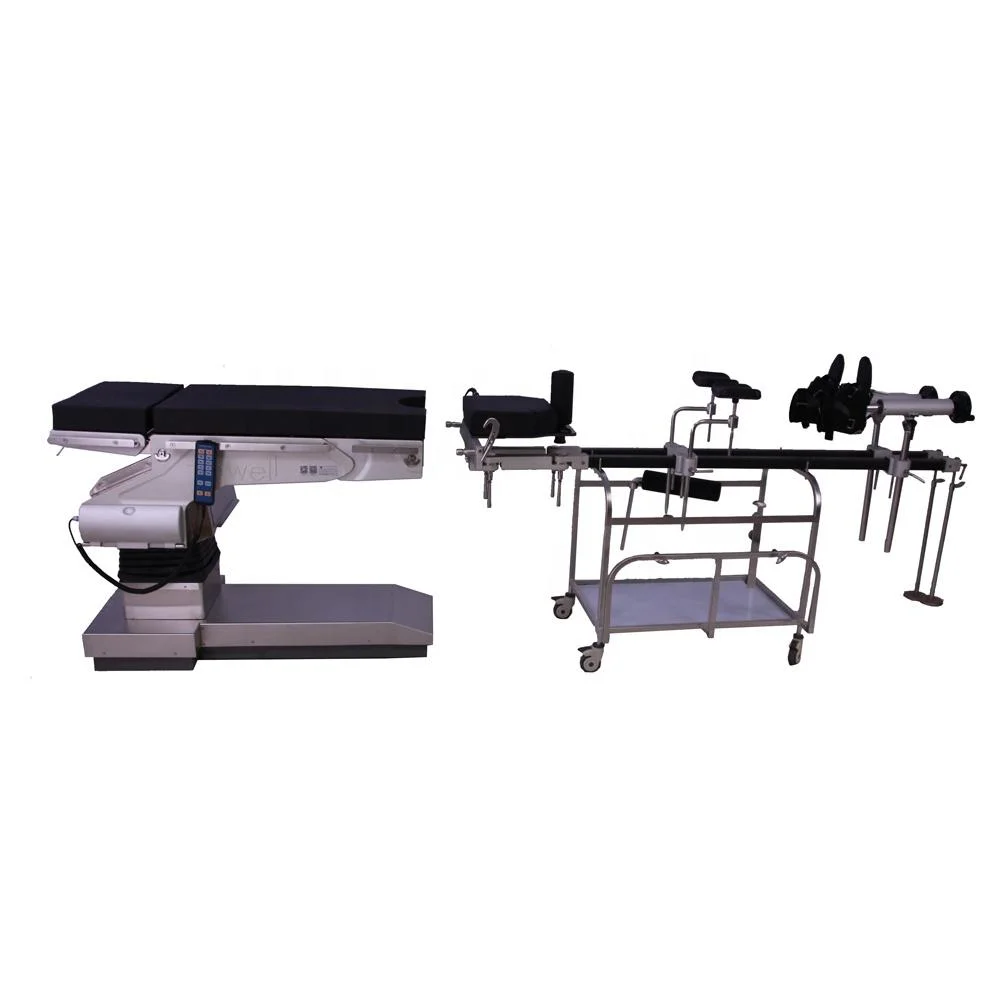

Orthopedic Traction Carbon Fiber Docking-Type Traction Frame HE-F07

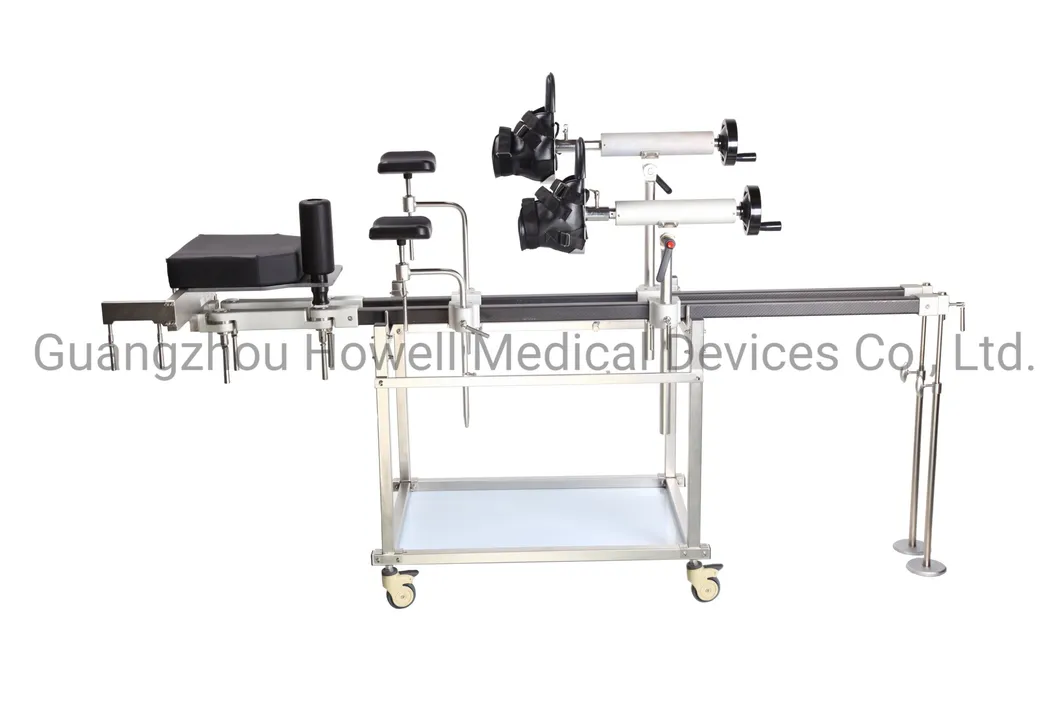

Orthopedic Traction Frame

Quick Installation & Compatibility: Designed for orthopedic/trauma surgery with a quick installation function. It can be combined with C-arms and X-ray machines to achieve unobstructed fluoroscopy.

Advanced Design: Featuring a two-joint design, the arms can unfold outward and fold inward at any angle to meet diverse surgical position requirements.

Key Advantages & Characteristics:

  • 🔹 Premium Material: Both arms are made of high-quality carbon fiber.
  • 🔹 Flexible Positioning: Rotatable pelvic frame with three optional insertion positions (left, middle, right) to avoid obstruction during hip fluoroscopy.
  • 🔹 Adjustable Column: Ascending and descending stroke of 30 cm to adapt to patients of all sizes.
  • 🔹 Mobility: Equipped with universal brake wheels for easy movement and location.
  • 🔹 Stability: Reliable performance for femoral intramedullary nail surgery, total hip replacement, and tibial traction.
⚙️

Technical Specifications

Length1750±30mm
Outreach Width120mm-750mm
Highest Bearing Capacity160kg
Maximum Traction Force400N
Traction Stroke200mm
Abduction Angle90° (at any appropriate angle)
Boot Rotation360° Rotation
📸

Detailed Photos

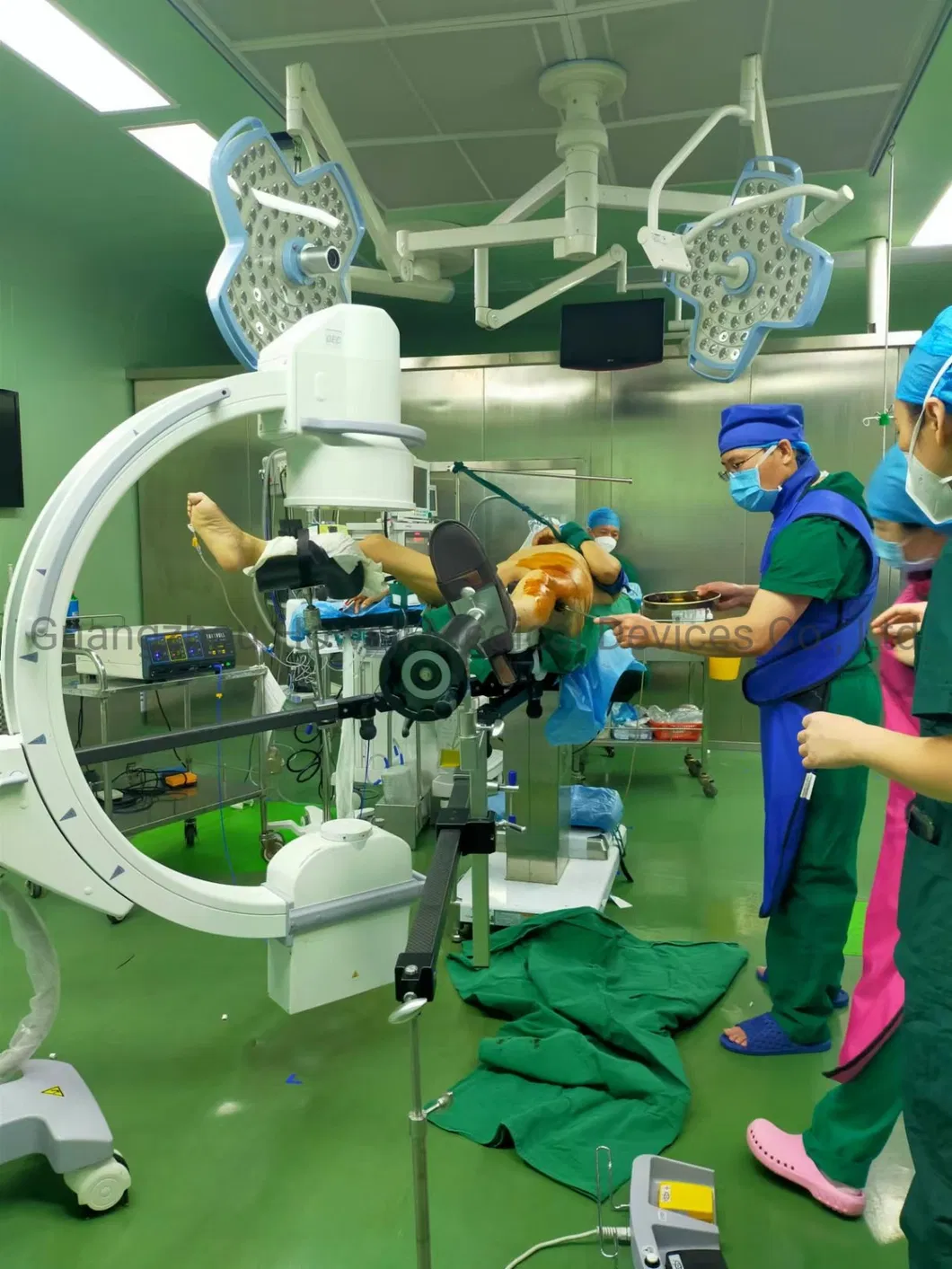

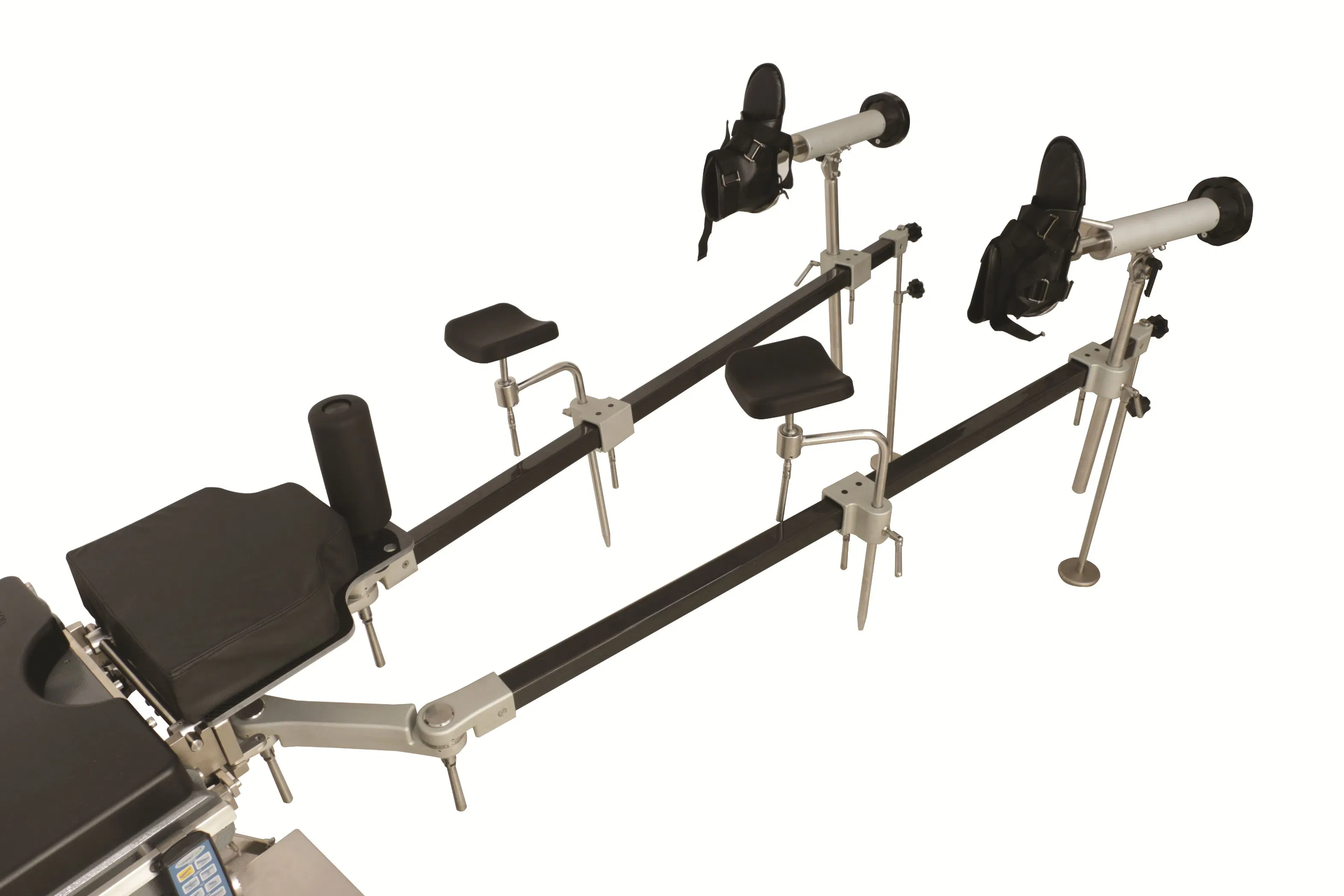

Detail 1

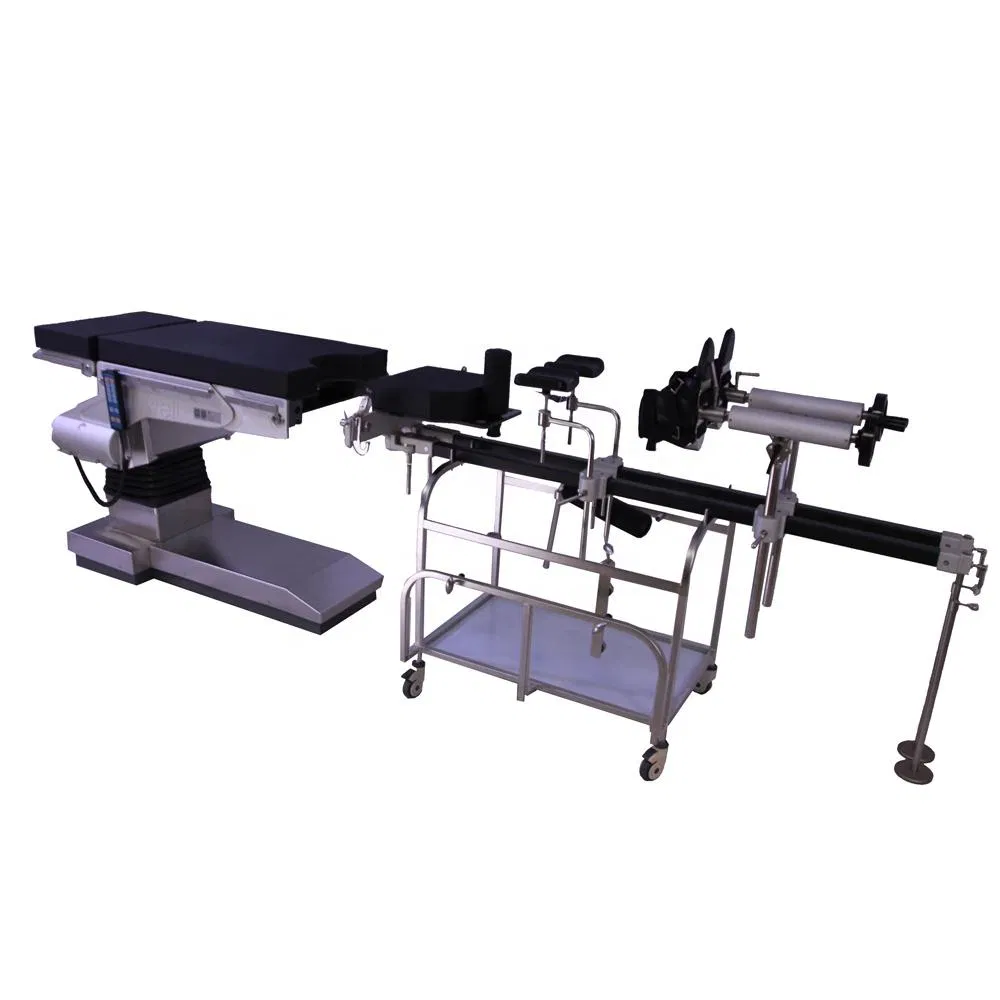

Detail 2 Detail 3
🏭

Manufacturing & Quality

Factory 1 Factory 2 Factory 3
✅

Certifications & Packing

Certification Packing
❓

Frequently Asked Questions

What imaging equipment is the traction frame compatible with?
The HE-F07 traction frame is fully compatible with C-arms and X-ray machines, featuring carbon fiber arms that allow for unobstructed fluoroscopy during surgery.
What are the main surgical applications for this equipment?
It is ideal for orthopedic lower extremity surgeries, including hip X-ray fluoroscopy, femoral plate surgery, femoral intramedullary nail surgery, and total hip replacement.
What is the maximum load capacity?
The traction frame is designed to support a maximum weight of 160kg, making it suitable for adult patients.
How is product quality guaranteed?
We ensure quality through a pre-production sample before mass production and a final inspection process before every shipment.
Is the equipment easy to move within the operating room?
Yes, the frame is equipped with universal brake wheels, making it easy to move, position, and securely lock in place during procedures.
What are the available payment and delivery terms?
We accept various delivery terms including FOB, CFR, CIF, and EXW. Payments can be made via T/T, L/C, Credit Card, and other major secure methods.
