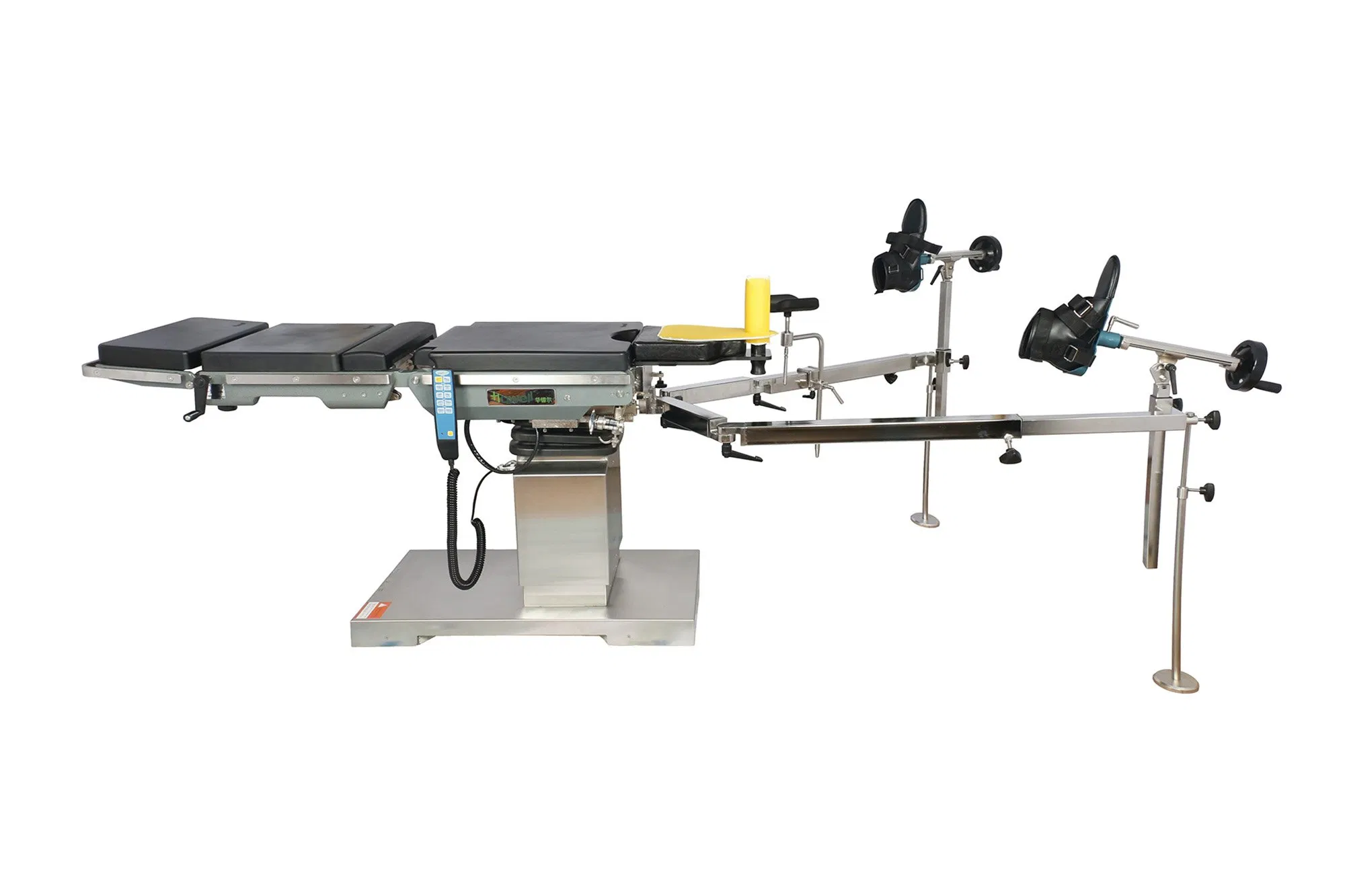

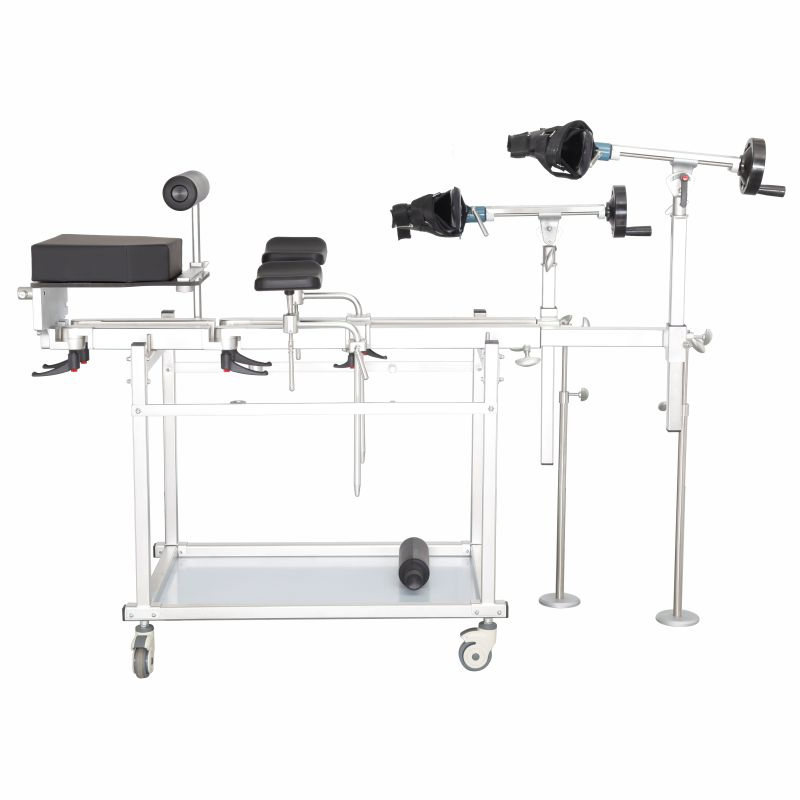

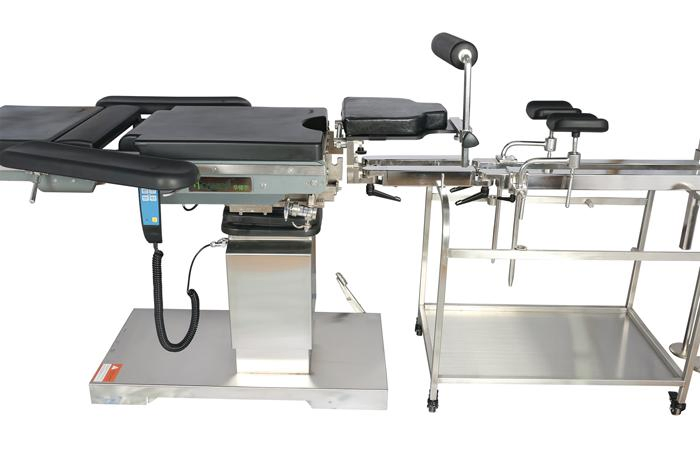

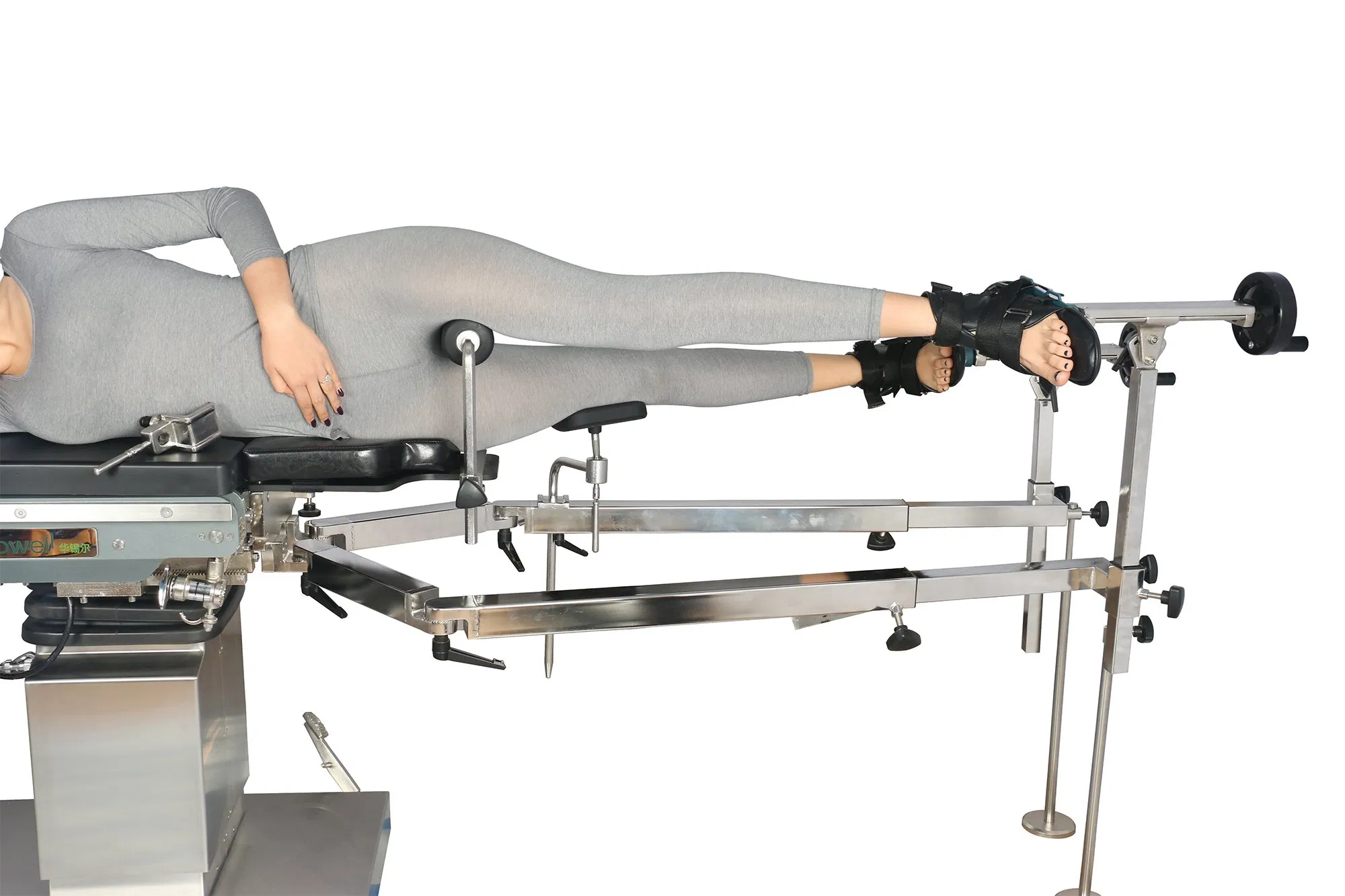

Medical Stainless Steel Traction Frame C-Arm Compatible Operation Bed Extend Leg Traction Frame for Orthopedic
Medical Stainless Steel Traction Frame C-Arm Compatible Operation Bed Extend Leg Traction Frame for Orthopedic
Medical Stainless Steel Traction Frame C-Arm Compatible Operation Bed Extend Leg Traction Frame for Orthopedic
Medical Stainless Steel Traction Frame C-Arm Compatible Operation Bed Extend Leg Traction Frame for Orthopedic
Medical Stainless Steel Traction Frame C-Arm Compatible Operation Bed Extend Leg Traction Frame for Orthopedic
1 / 5
Medical Stainless Steel Traction Frame C-Arm Compatible Operation Bed Extend Leg Traction Frame for Orthopedic
Medical Stainless Steel Traction Frame C-Arm Compatible Operation Bed Extend Leg Traction Frame for Orthopedic
Medical Stainless Steel Traction Frame C-Arm Compatible Operation Bed Extend Leg Traction Frame for Orthopedic
Medical Stainless Steel Traction Frame C-Arm Compatible Operation Bed Extend Leg Traction Frame for Orthopedic
Medical Stainless Steel Traction Frame C-Arm Compatible Operation Bed Extend Leg Traction Frame for Orthopedic

Medical Stainless Steel Traction Frame C-Arm Compatible Operation Bed Extend Leg Traction Frame for Orthopedic

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO. HE-F06 Certification ISO13485, ISO
Group Adult C Arm Compatible Yes
Material Stainless Steel Loading Capacity 160kg
Application Hospital / Orthopedic Surgery Production Capacity 5000 Pieces/Month
★

Product Description

Medical Stainless Steel Traction Frame C-arm Compatible Operation Bed Extension

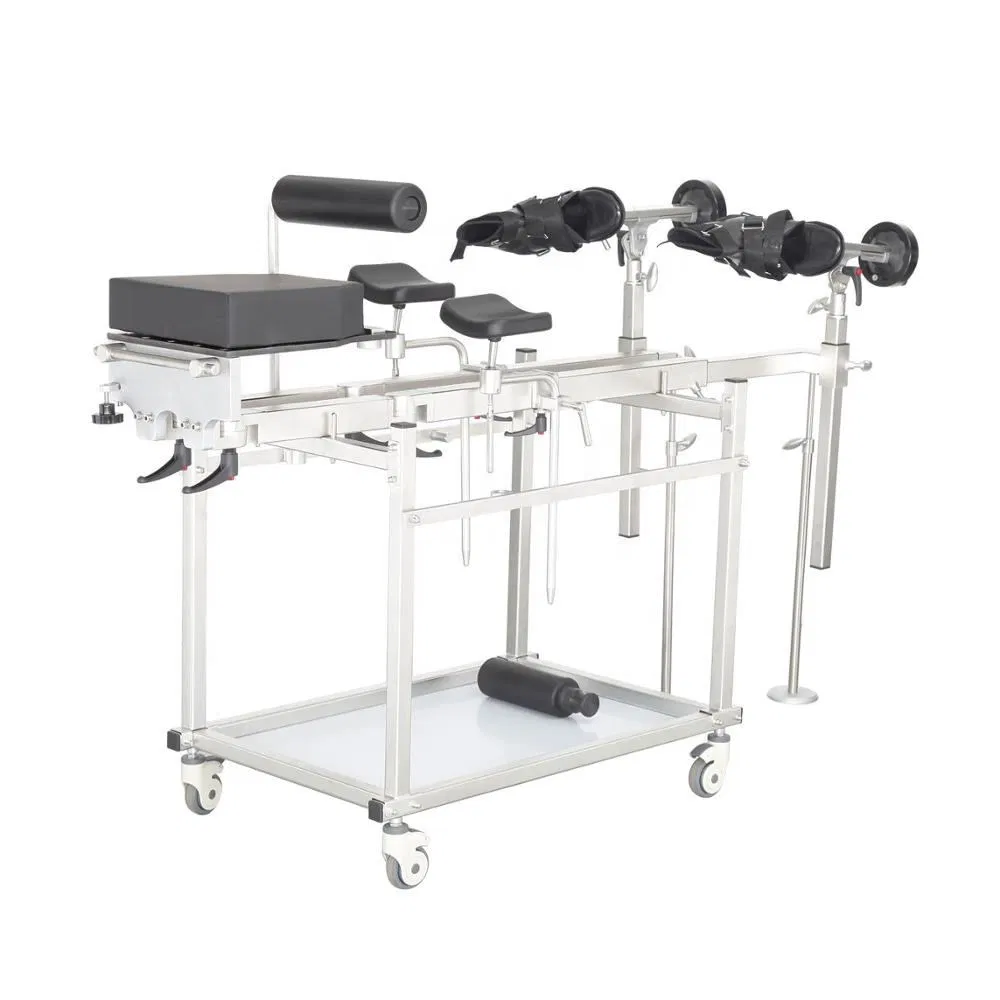

Traction Frame Overview

The docking-type traction frame is designed for orthopedic and trauma surgery. Featuring quick installation, it combines with C-arm and X-ray machines to achieve unobstructed fluoroscopy. The two-joint design allows for outward unfolding and inward folding at appropriate angles to meet specific surgical positioning requirements.

1

Advantages and Characteristics

  • Double joints with retractable traction arm and gyroscopic pelvic frame set.
  • Pelvic frame features three optional positions (left, center, right) to avoid fluoroscopy obstruction.
  • Adjustable height with a 30cm stroke to adapt to men, women, and children.
  • Traction rod supports large angle changes and telescopic design with 360-degree rotation ankle fixers.
  • Made of high-quality 304 stainless steel for easy cleaning and durability.
  • Equipped with universal brake wheels for easy movement and stable positioning.
  • Ideal for trauma surgery, hip joint fluoroscopy, femoral plate surgery, and intramedullary nail surgery.
2

Technical Parameters

Traction Range 1150 - 1650mm
Max Load Capacity 160kg
Max Traction Force 400N
Telescopic Displacement 500mm
Traction Stroke 210mm
Abduction Width 120 - 770mm
Weight 35kg (50kg with trolley)
📷

Detailed Photos

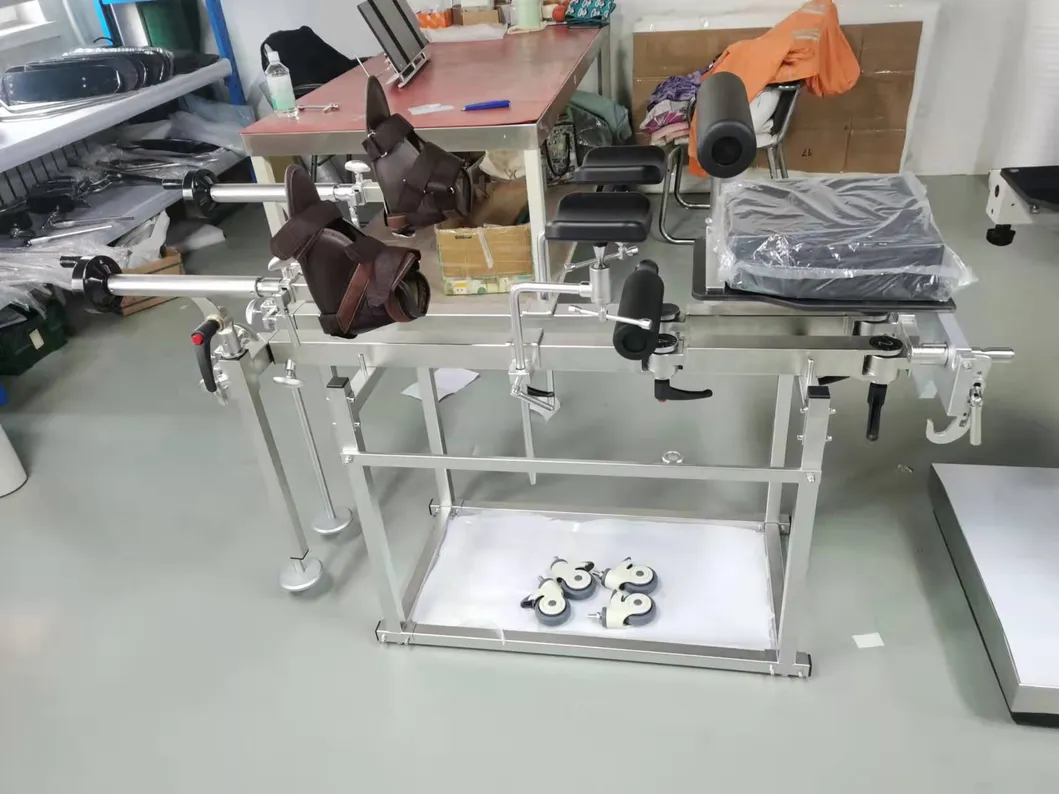

Detail 1

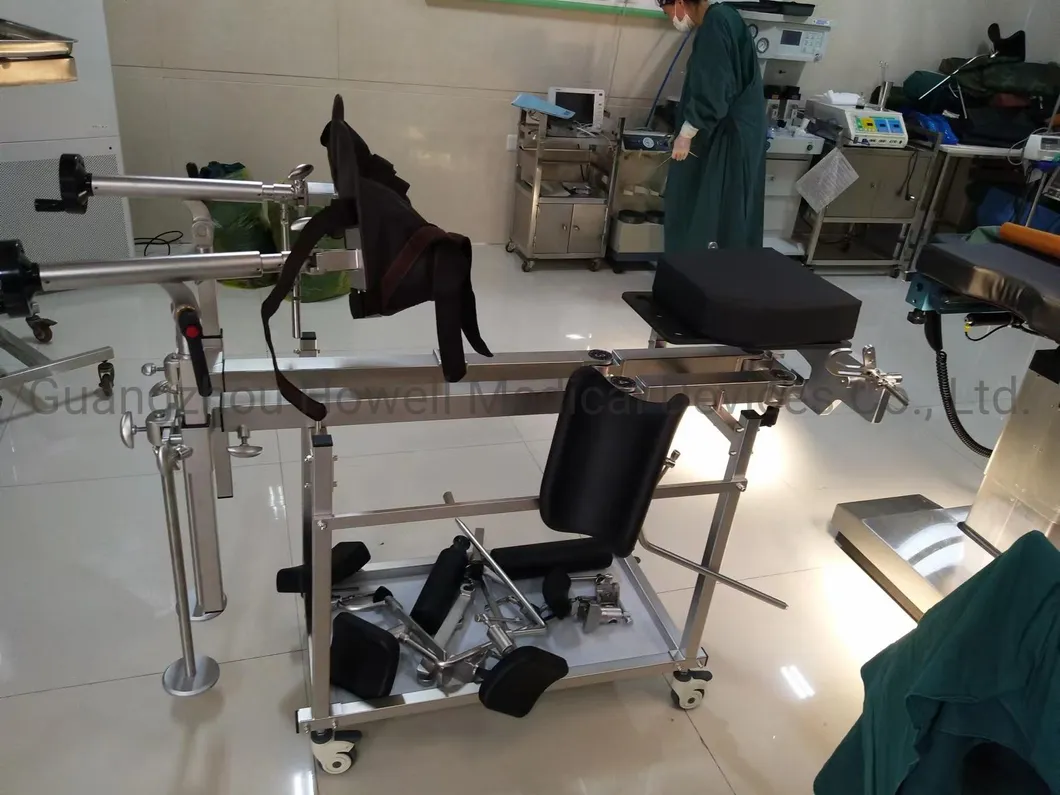

Detail 2

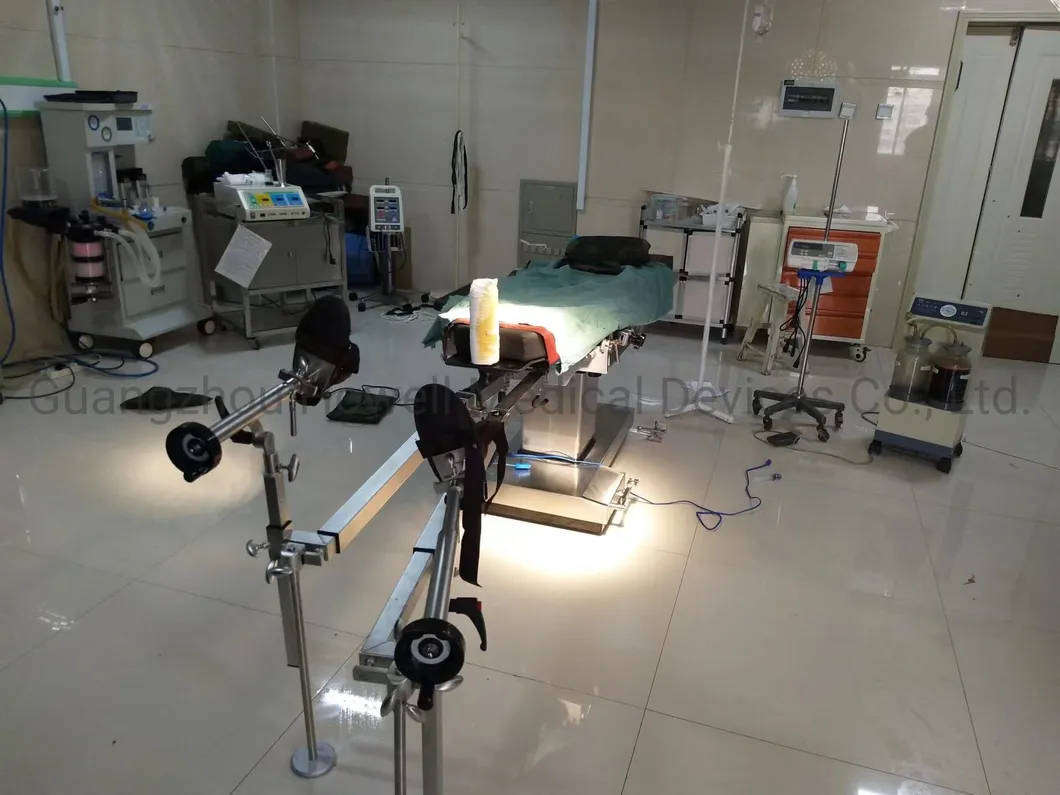

Detail 3
🏭

Production & Quality

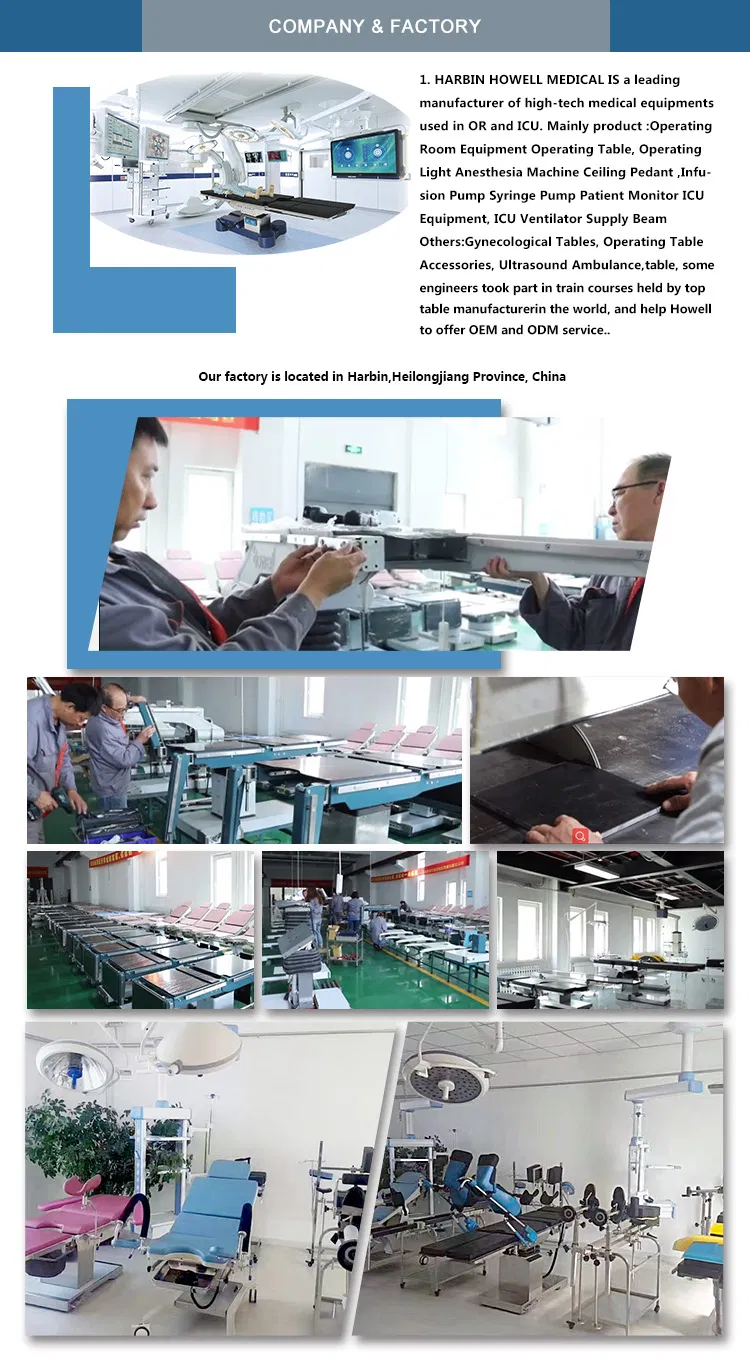

Production Image 1
Production Image 2
Workshop
✔

Certifications & Packing

Certification
Packing
?

Frequently Asked Questions

What is the maximum weight capacity of the traction frame?
The HE-F06 traction frame is designed to support a maximum loading capacity of 160kg, making it suitable for a wide range of adult patients.
Is this equipment compatible with C-arm imaging?
Yes, the frame is specifically constructed for C-arm and X-ray machine compatibility, ensuring unobstructed fluoroscopy during orthopedic procedures.
What material is used in the construction?
The traction frame is manufactured from high-quality 304 stainless steel, providing a smooth, easy-to-clean surface that meets medical hygiene standards.
Which types of surgeries is this frame suitable for?
It is ideal for various lower limb orthopedic surgeries, including femoral intramedullary nail surgery, hip joint replacement, and tibia/fibula traction surgery.
How adjustable is the traction system?
The system offers a traction range of 1150-1650mm, a telescopic displacement of 500mm, and the ability to fold at various angles for flexible surgical positioning.
Is the frame easy to relocate within the hospital?
Yes, it features universal brake wheels, allowing for smooth movement and secure positioning within the operating theater.
