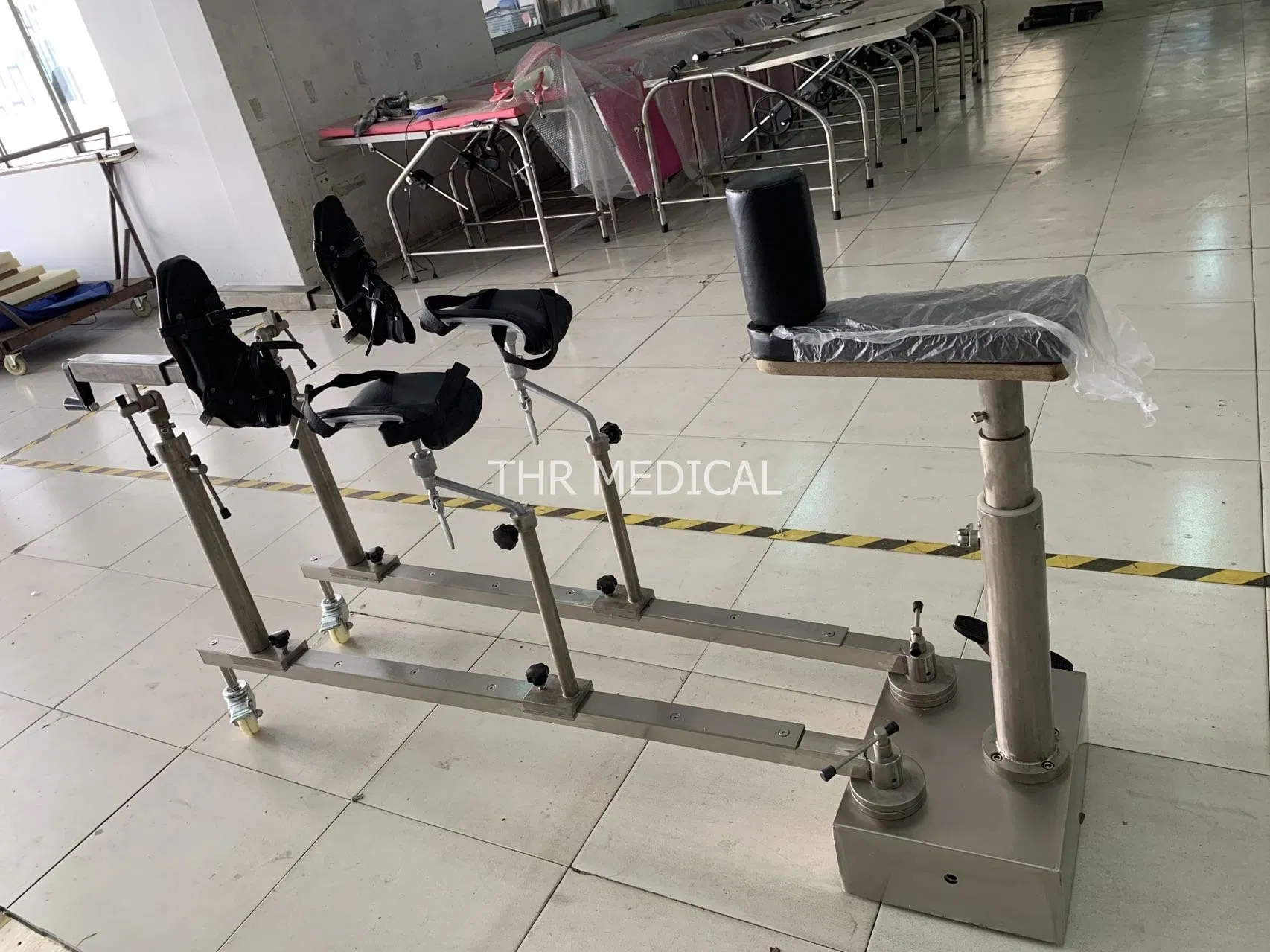

Orthopedic Traction Frame for Surgery Operation (THR-TB005)
Orthopedic Traction Frame for Surgery Operation (THR-TB005)
Orthopedic Traction Frame for Surgery Operation (THR-TB005)
Orthopedic Traction Frame for Surgery Operation (THR-TB005)
Orthopedic Traction Frame for Surgery Operation (THR-TB005)
1 / 5
Orthopedic Traction Frame for Surgery Operation (THR-TB005)
Orthopedic Traction Frame for Surgery Operation (THR-TB005)
Orthopedic Traction Frame for Surgery Operation (THR-TB005)
Orthopedic Traction Frame for Surgery Operation (THR-TB005)
Orthopedic Traction Frame for Surgery Operation (THR-TB005)

Orthopedic Traction Frame for Surgery Operation (THR-TB005)

Customization: Available
Type: Orthopedic Traction Frame
Kind: Orthopedics
Send Inquiry

Product Description

📋 Basic Information
Model NO.
THR-TB005
Certification
CE, ISO13485
Group
Adult
Main Body Width
≥400mm
Minimum Height
750mm
Lifting Stroke
≥250mm
Pedal Extension
≥1000mm
Pedal Angle Range
≥90°
Production Capacity
1000 Piece/Month
📑 Product Description

Orthopedic Traction Frame For Surgery Operation

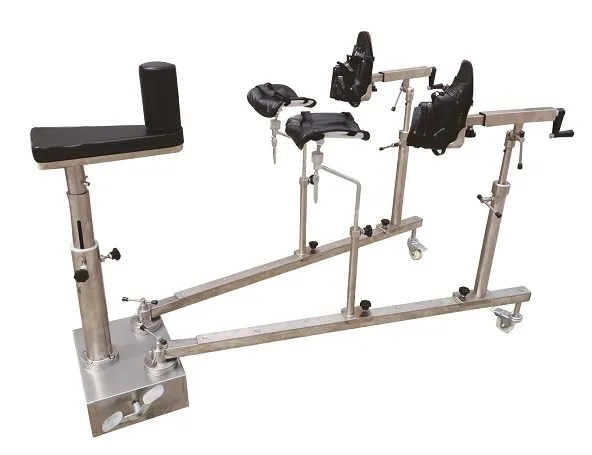

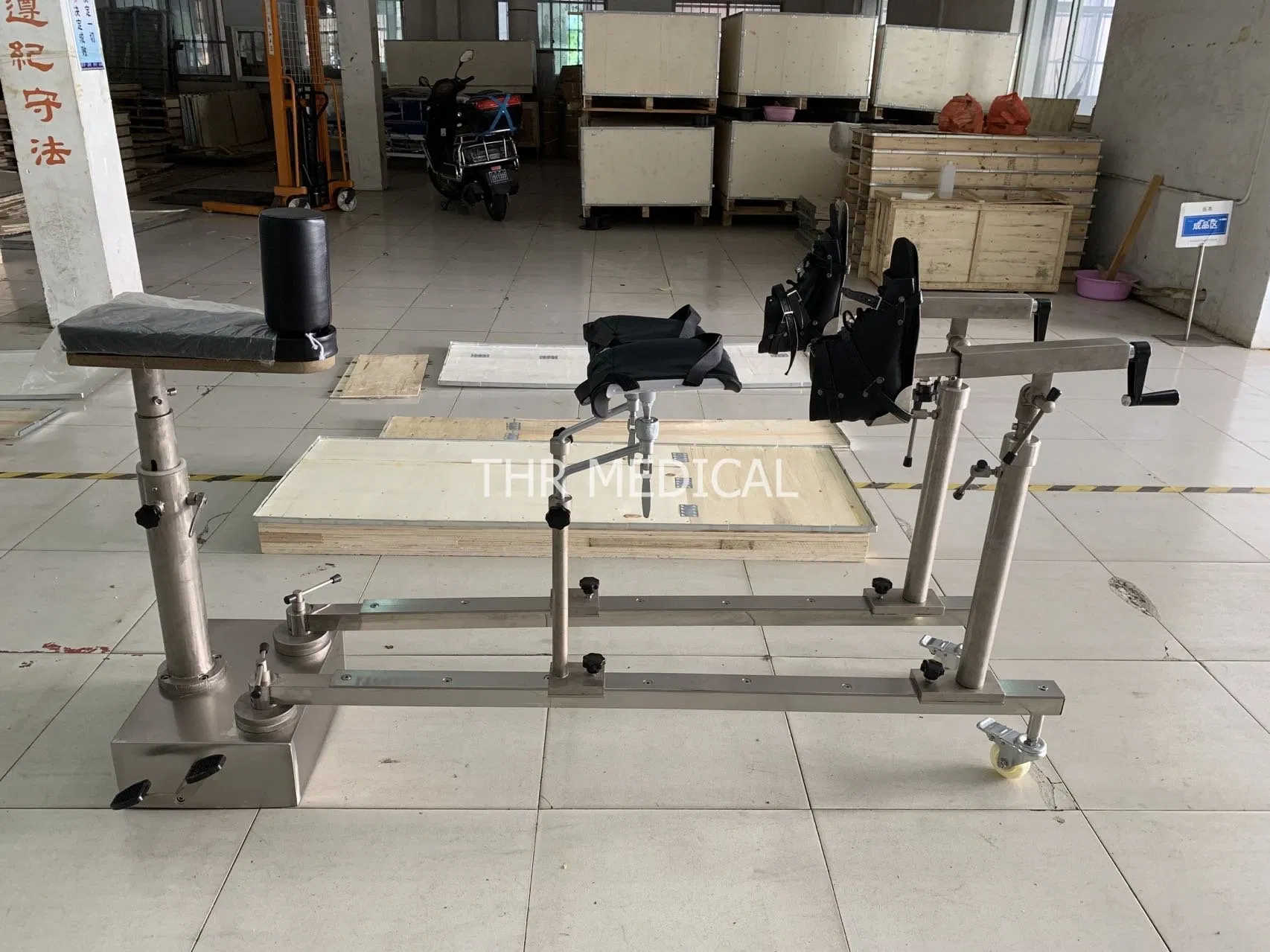

Orthopedic Traction Frame Main

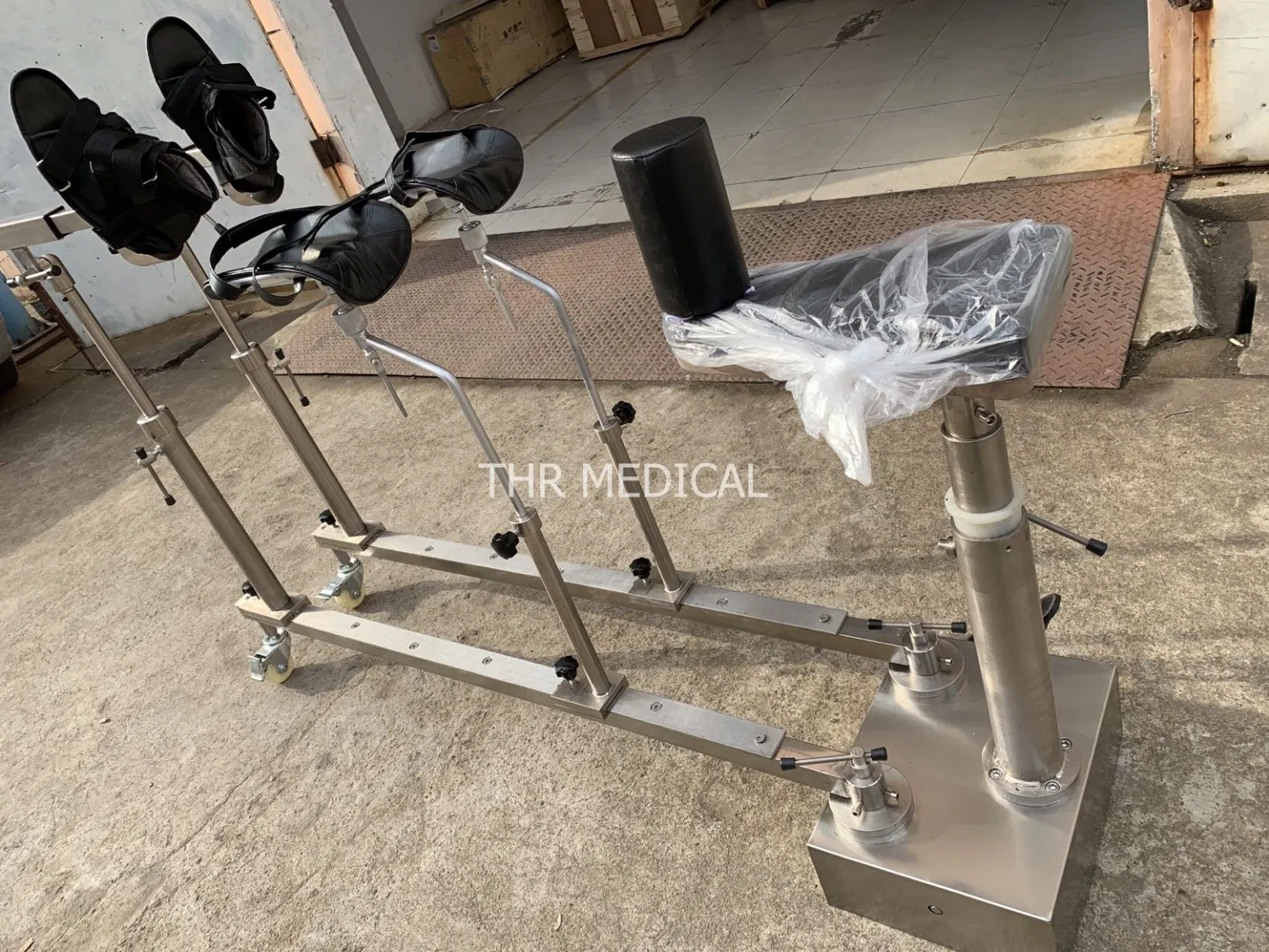

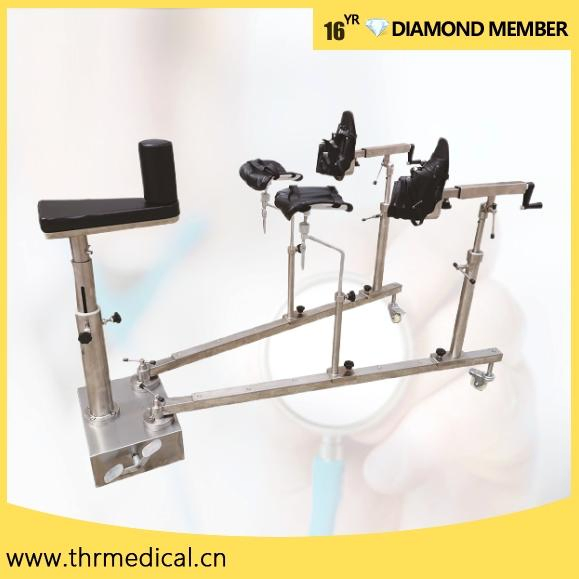

The orthopedic traction frame is composed of a table, a column and a base. It is designed to be matched with different manufacturers of operating beds to meet the rigorous requirements of orthopedic surgery.

✔Made of high-quality stainless steel for maximum durability.
✔Pelvic frame features three optional connection positions (left, middle, right) to avoid obstruction during hip arthroscopy.
✔Fully compatible with C-arm imaging systems with complete see-through capability.
✔Lifting column accommodates side sleeper or knee joint frames with a 25 cm stroke.
✔Telescopic traction bar with 360° rotating ankle fixer for flexible surgical application.
✔Equipped with 3 universal wheels (2 with brakes) and a landing control mechanism for stable positioning.
⚙ Technical Parameters & Configuration
Main length
≥1900mm
Main body width
≥400mm
Minimum height
750mm
Lifting stroke
≥250mm
Pedal extension
≥1000mm
Pedal adjustment
≥200mm

Basic Configuration Included:

  • Tie shoes * 1
  • Leg bracket * 1
  • Seat cushion * 1
📷 Product Details Gallery
Traction Frame Detail 1

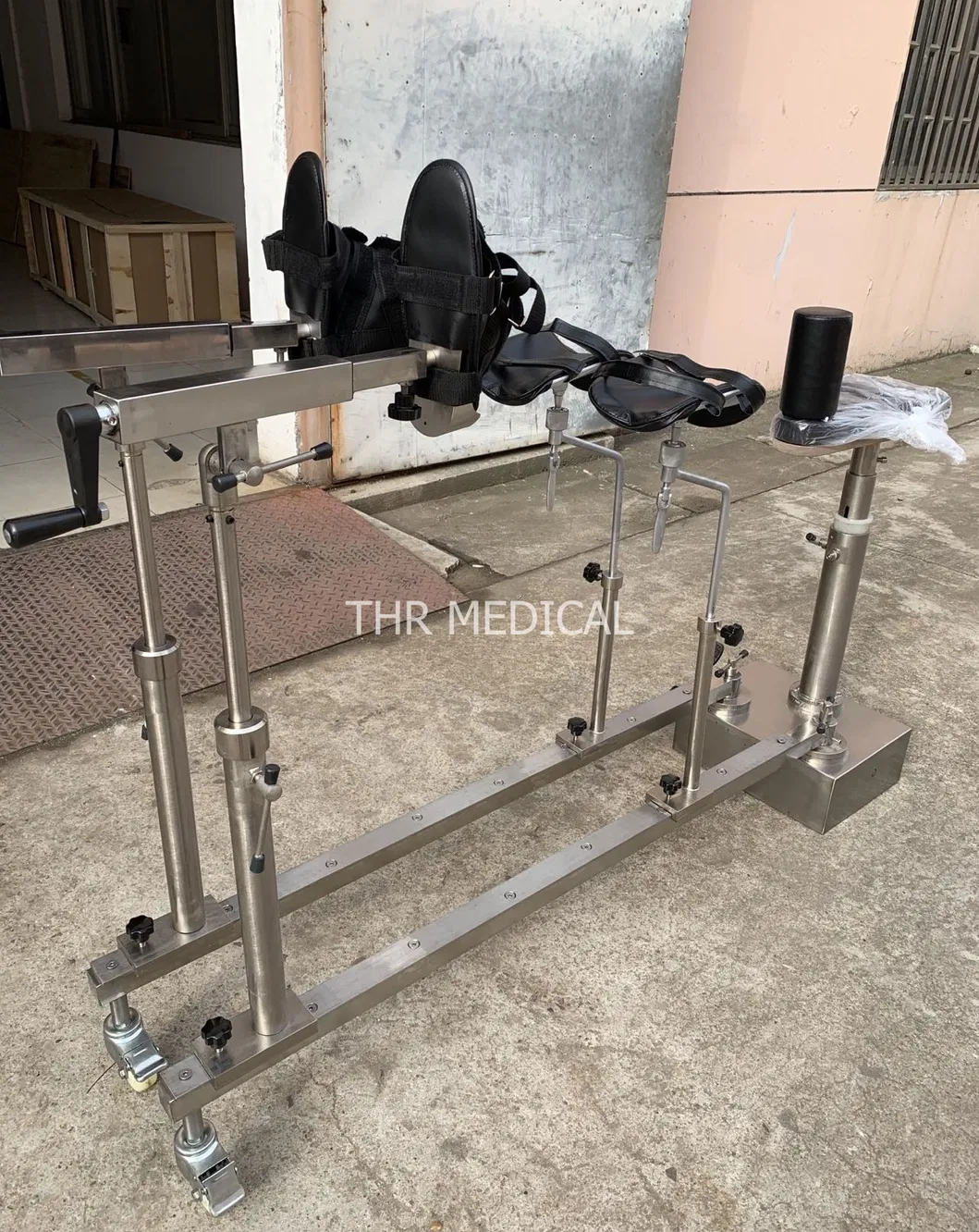

Traction Frame Detail 2
Traction Frame Detail 3
Traction Frame Detail 4

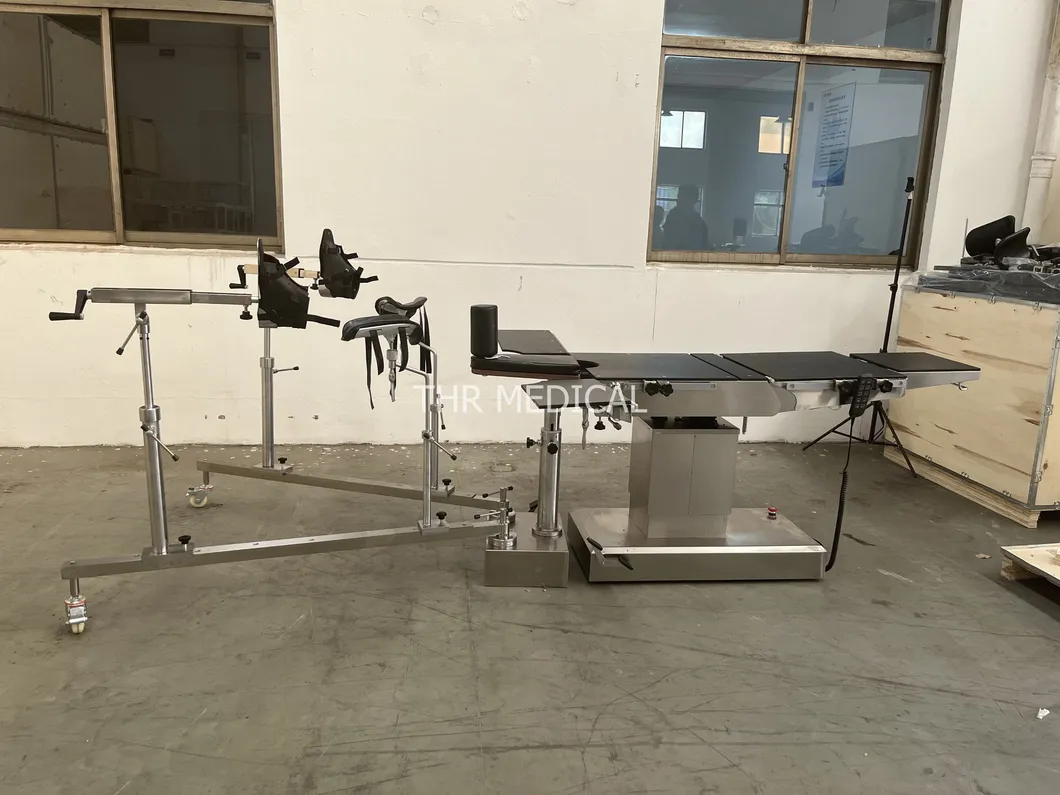

Traction Frame Detail 5
🏭 Manufacturing & Workflow
Workflow 1
Workflow 2
Workflow 3
Workflow 4
Frequently Asked Questions
Q1: Can this traction frame be used with any operating bed?
Yes, the THR-TB005 is designed with a universal interface that allows it to be matched with operating beds from various manufacturers.
Q2: Is the equipment compatible with C-arm X-ray machines?
Absolutely. The frame is constructed to ensure complete radiolucency, allowing the C-arm to provide clear imaging during orthopedic procedures.
Q3: What material is used for the construction of the frame?
The frame is made from high-quality stainless steel, ensuring it is durable, corrosion-resistant, and easy to sanitize.
Q4: How adjustable is the traction bar and ankle fixer?
The traction bar features a telescopic design with significant angle adjustments. The ankle fixer can be rotated 360° or removed to install other specialized accessories.
Q5: Is it suitable for both male and female patients of different sizes?
Yes, with a 25cm lifting stroke and adjustable pelvic frame positions, it can be customized to accommodate patients of various physical statures.
Q6: How is the stability of the frame ensured during surgery?
The base is equipped with a landing control mechanism and heavy-duty wheels with brakes to ensure absolute stability once positioned in the operating room.

Related Products

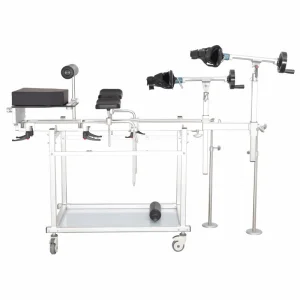

Medical Equipment Orthopedic Traction Frame Price

Medical Equipment Orthopedic Traction Frame Price

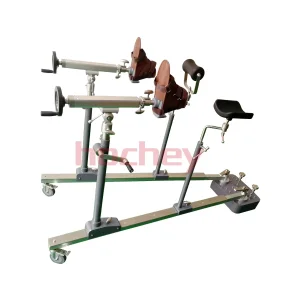

Medical Equipment Multipurpose Traction Frame for Femur Fracture Surgery Orthopedic Table

Medical Equipment Multipurpose Traction Frame for Femur Fracture Surgery Orthopedic Table

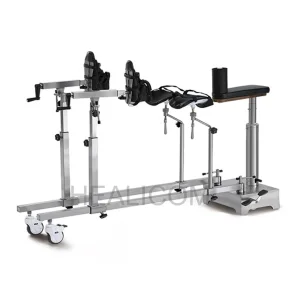

Hgk-08 Multi-Purpose Stainless Steel Orthopedics Traction Frame for Operation Table

Hgk-08 Multi-Purpose Stainless Steel Orthopedics Traction Frame for Operation Table

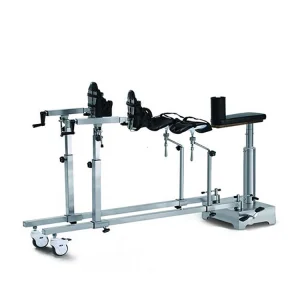

Ysot-Gk08 Medical Equipment Orthopedic Traction Frame

Ysot-Gk08 Medical Equipment Orthopedic Traction Frame

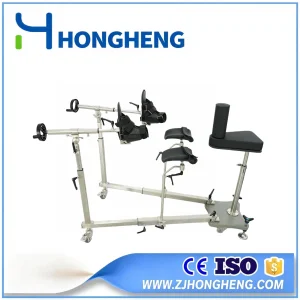

Stainless Steel Hospital Surgical Equipment Floor Type Operation Orthopedic Traction Frame

Stainless Steel Hospital Surgical Equipment Floor Type Operation Orthopedic Traction Frame

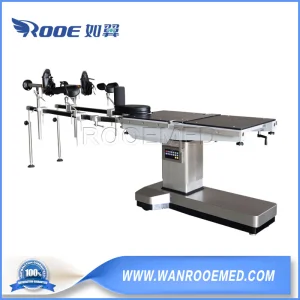

Aota202 Carbon Fiber Surgical Operation Table Extension Device Orthopedic Traction Frame for Various Positions

Aota202 Carbon Fiber Surgical Operation Table Extension Device Orthopedic Traction Frame for Various Positions

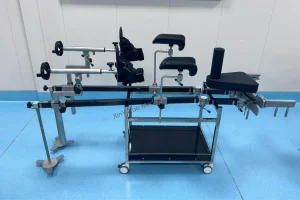

Double Joint Carbon Fiber Orthopedic Traction Frame for Operating Table

Double Joint Carbon Fiber Orthopedic Traction Frame for Operating Table

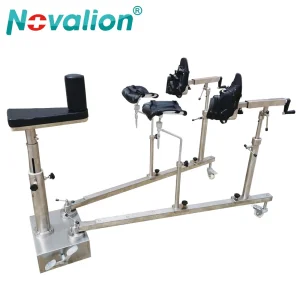

Universal Orthopedic Attachment Leg Traction Frame for Operation Table

Universal Orthopedic Attachment Leg Traction Frame for Operation Table
High Quality Stainless Steel Orthopedic Operation Table Frames Orthopedics Traction Frame

High Quality Stainless Steel Orthopedic Operation Table Frames Orthopedics Traction Frame

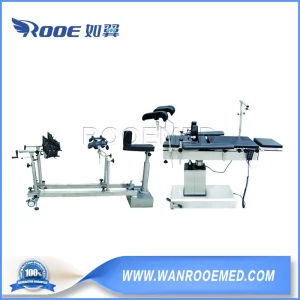

Aota200 Stainless Steel Orthopedic Leg Support Traction Frame for Operation Table
