Hospital Medical Equipment Orthopedic Extension Orthopedic Traction Frame with Low Price

Customization:	Available
Certification:	CE, ISO13485
Group:	Adult

Basic Information

LCD Display	Without LCD Display
Model No.	He-F06
Keywords	Orthopedic Traction Table
C Arm Compatible	Yes
Material	304 Stainless Steel
Warranty	1 Year
HS Code	9402900000
Production Capacity	600 Sets/Month

Product Description

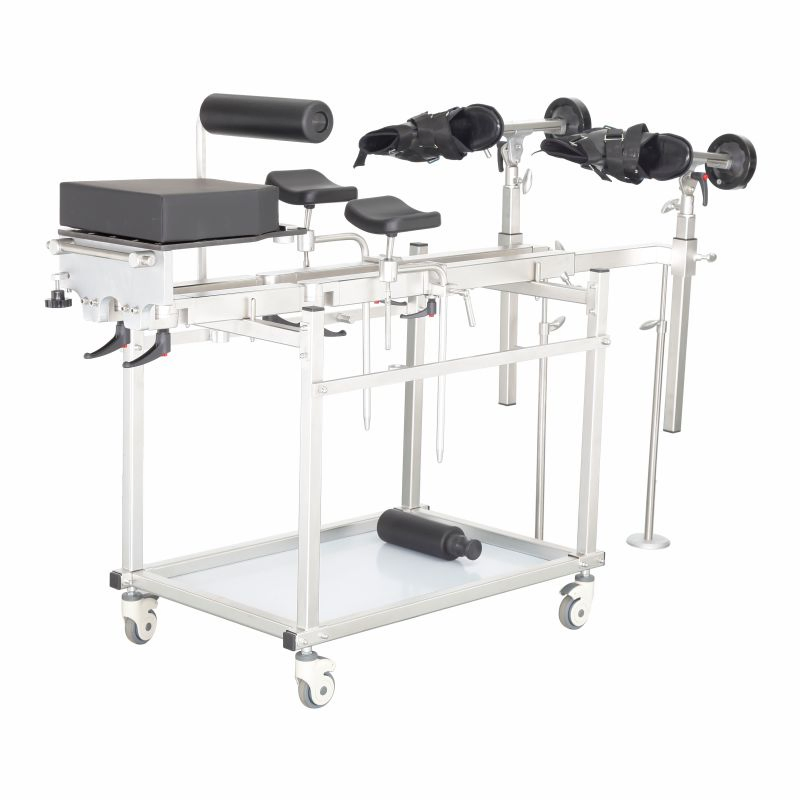

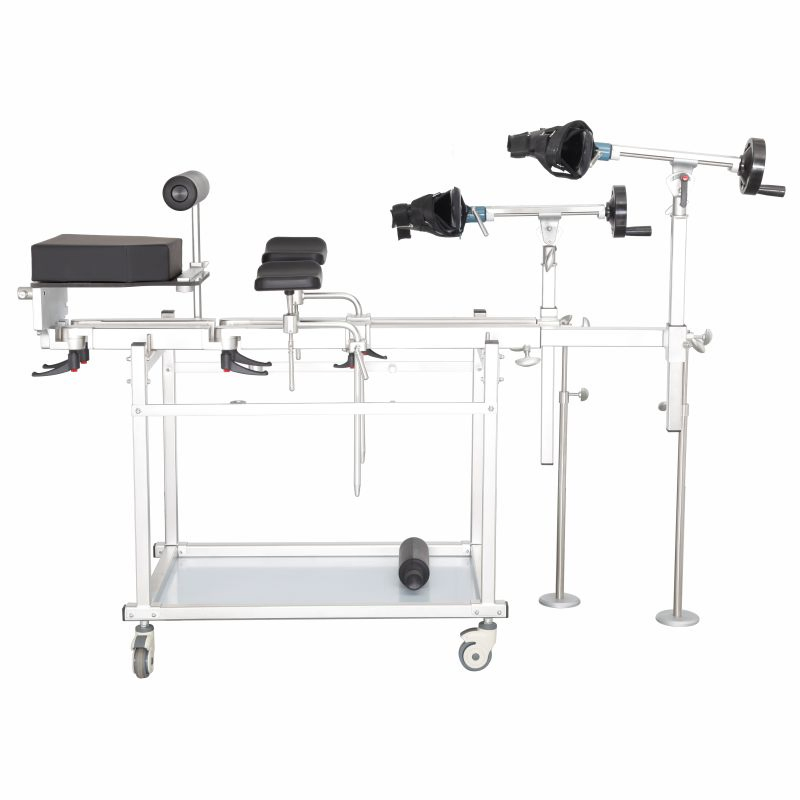

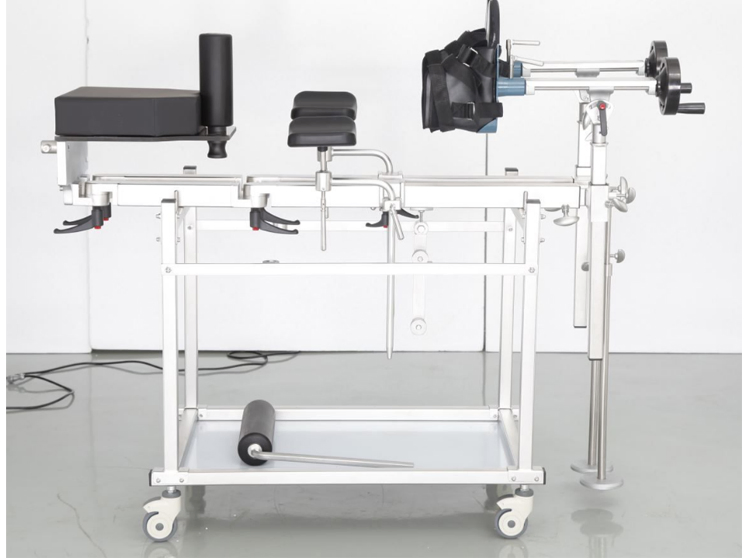

Professional Medical Devices Orthopedic Traction Frame

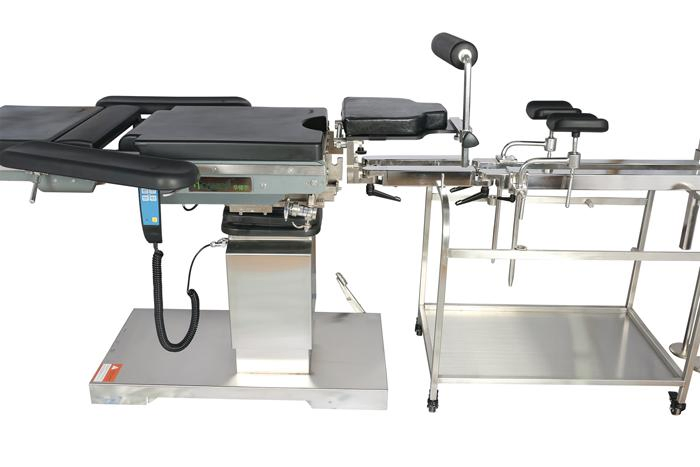

The F-06 type traction frame is designed for orthopedic and trauma surgery. Featuring quick installation, it combines seamlessly with C-arm and X-ray machines for unobstructed fluoroscopy. Its two-joint design allows it to unfold or fold at any angle to meet diverse surgical position requirements.

🔷

Double Joint Design: Retractable traction arm and gyroscopic pelvic frame set with three optional positions (left, center, right) to avoid obstruction during hip fluoroscopy.

🔷

Adjustable Height: Lifting column adapts to men, women, and children with a 30 cm stroke range.

🔷

Flexible Application: Traction rod supports large angle changes and features a telescopic design with a 360-degree rotating ankle fixer.

🔷

Premium Material: Constructed from 304 stainless steel, ensuring a smooth, easy-to-clean, and durable surface.

Main Technical Parameters:

Traction Range	1150-1650mm
Max Load Capacity	160kg
Max Traction Force	400N
Telescopic Displacement	500mm
Traction Stroke	210mm
Abduction Width	120-770mm
Equipment Weight	35KG (Traction Frame) / 50KG (With Trolley)

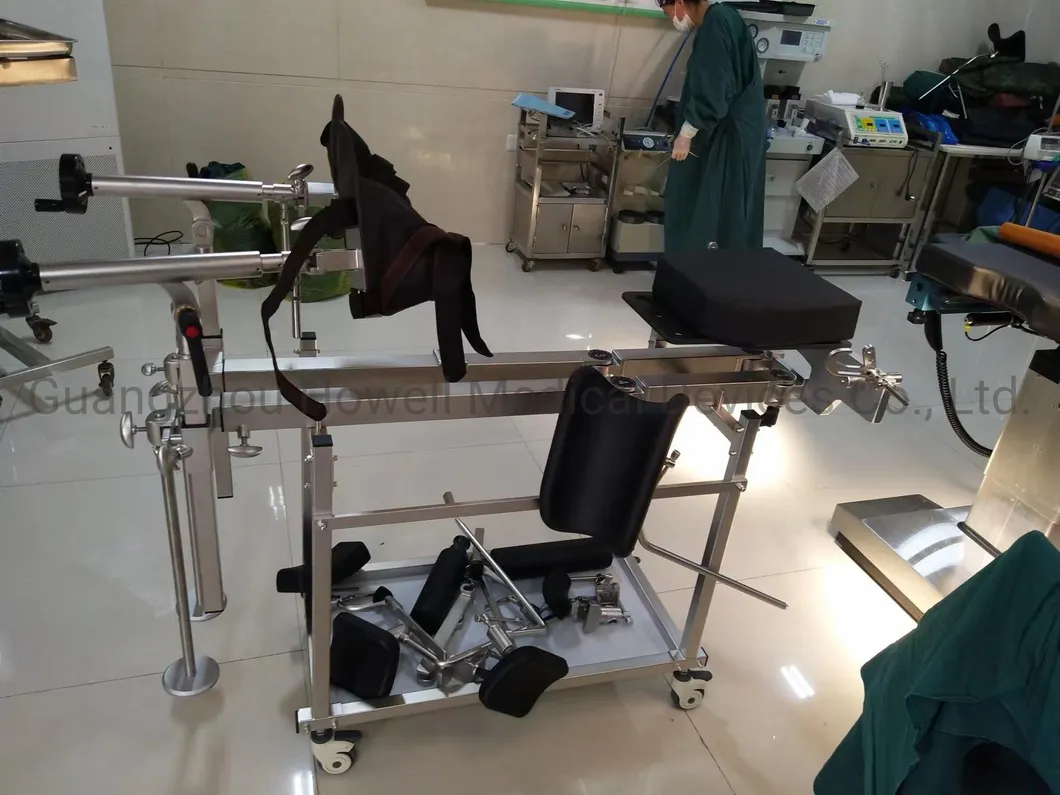

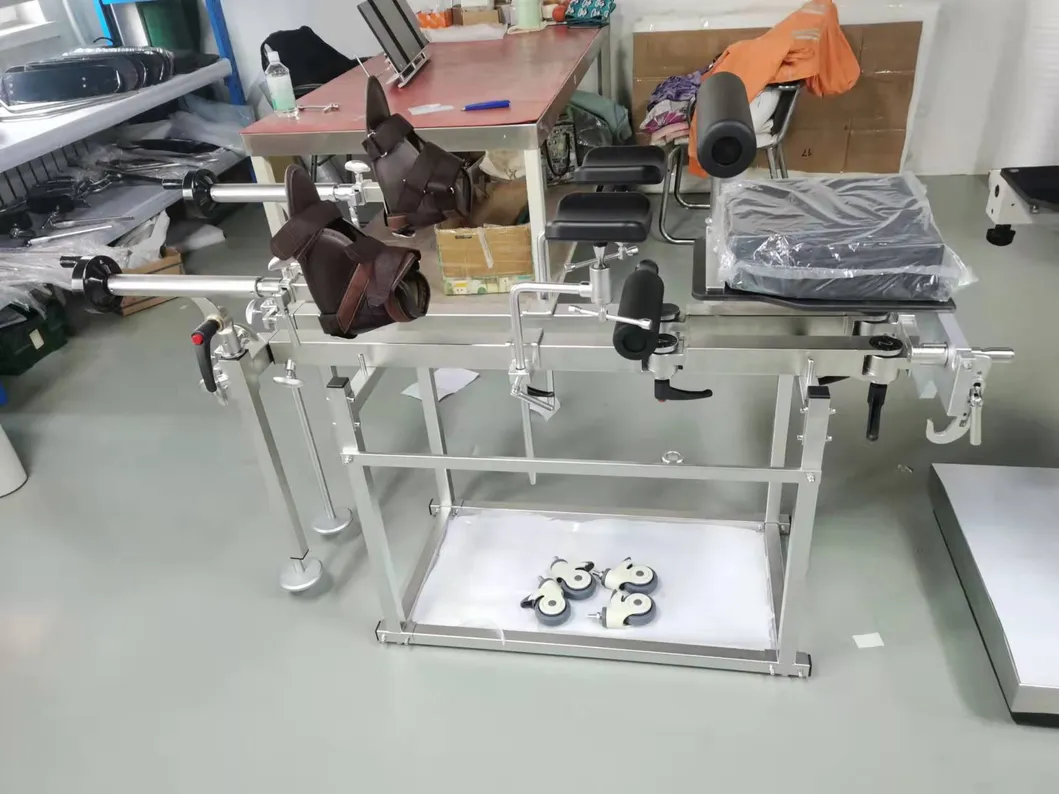

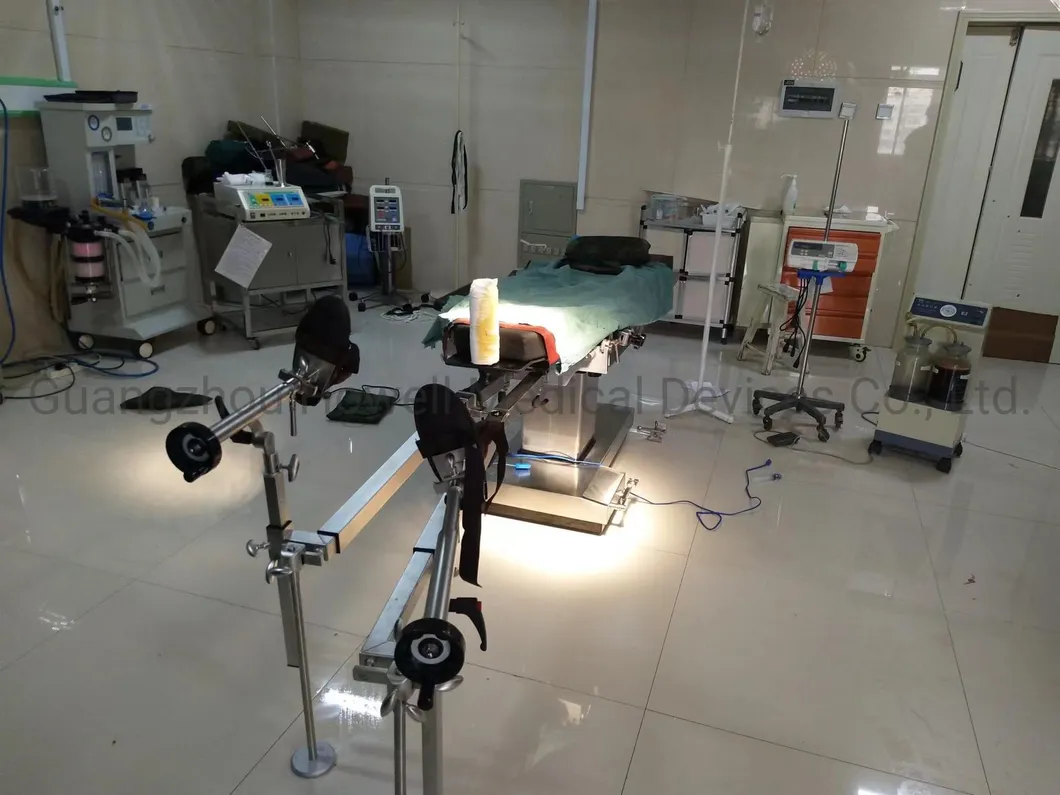

Detailed Product Photos

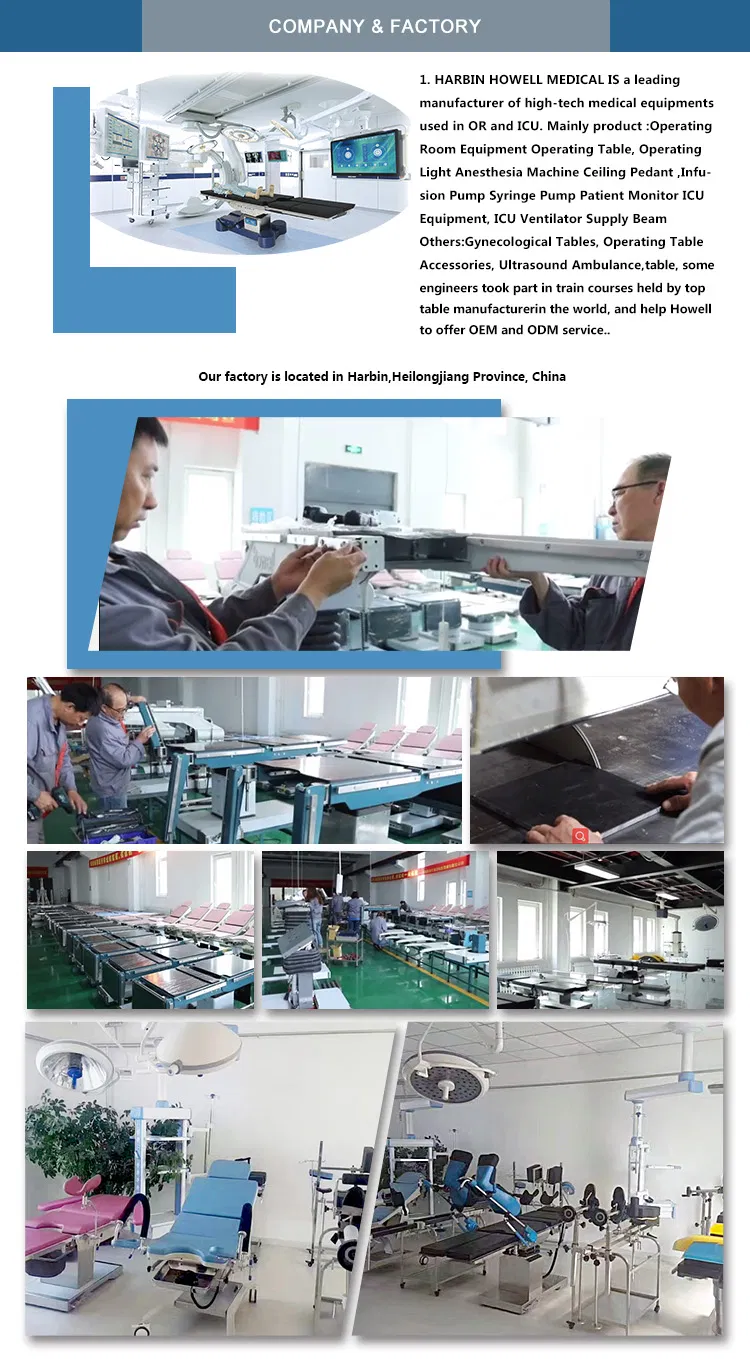

Production & Certification

Frequently Asked Questions

What surgical procedures is this traction frame suitable for?

It is ideal for trauma and orthopedic lower limb surgeries, including hip joint X-rays, femoral plate surgery, intramedullary nail surgery, and total hip replacements.

Is the equipment compatible with C-arm imaging?

Yes, the design allows for an open irradiation area, making it fully compatible with C-arm X-ray machines for unimpeded fluoroscopy.

What is the maximum weight capacity of the frame?

The orthopedic traction frame has a maximum load capacity of 160kg and can generate a maximum traction force of 400N.

What materials are used in construction?

The frame is made of high-quality 304 stainless steel, which provides stability, durability, and a surface that is easy to disinfect.

How do you ensure the quality of the medical devices?

We maintain strict quality control with a pre-production sample provided before mass production and a final inspection of every unit before shipment.

Does the traction frame support pediatric patients?

Yes, the adjustable lifting column and telescopic rods allow the frame to adapt to the bone structures of men, women, and children of various sizes.
