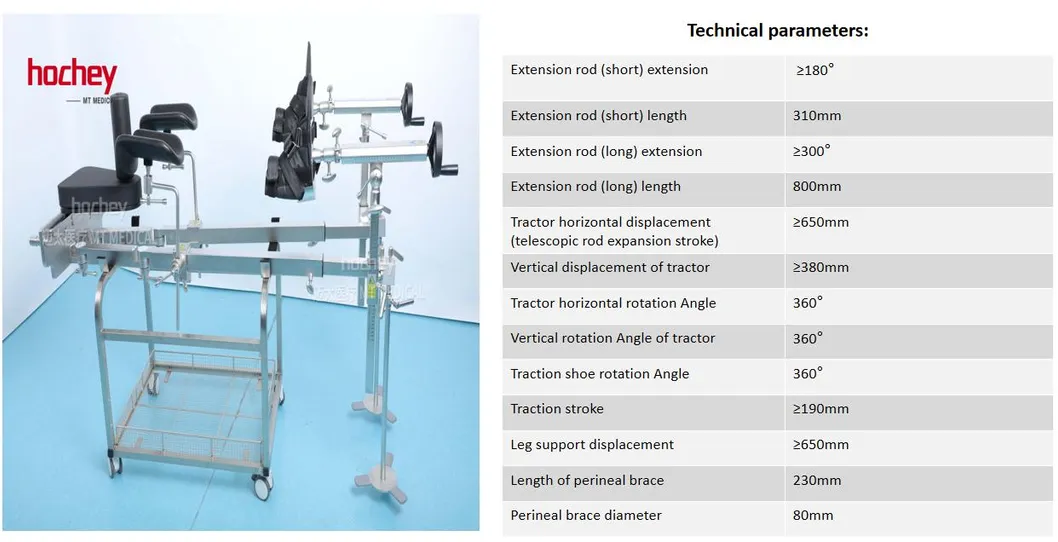

| Certification | CE, FDA, ISO13485 |
| Product Name | Suspended Orthopedics Traction Frame |
| Model No. | Ota-Q2 |
| Extension Rod (Short) Extension | More Than 180 Degree |
| Extension Rod (Short) Length | 310mm |
| Extension Rod (Long) Extension | More Than 300 Degree |
| Extension Rod (Long) Length | 800mm |
| Tractor Horizontal Displacement | More Than 650mm |
| Vertical Displacement of Tractor | More Than 380mm |
| Tractor Horizontal Rotation Angle | 360 Degree |
| Vertical Rotation Angle of Tractor | 360 Degree |
| Traction Shoe Rotation Angle | 360 Degree |
| Traction Stroke | More Than 190mm |
| Leg Support Displacement | More Than 650mm |
| Transport Package | Wooden Case |
| Origin | China |

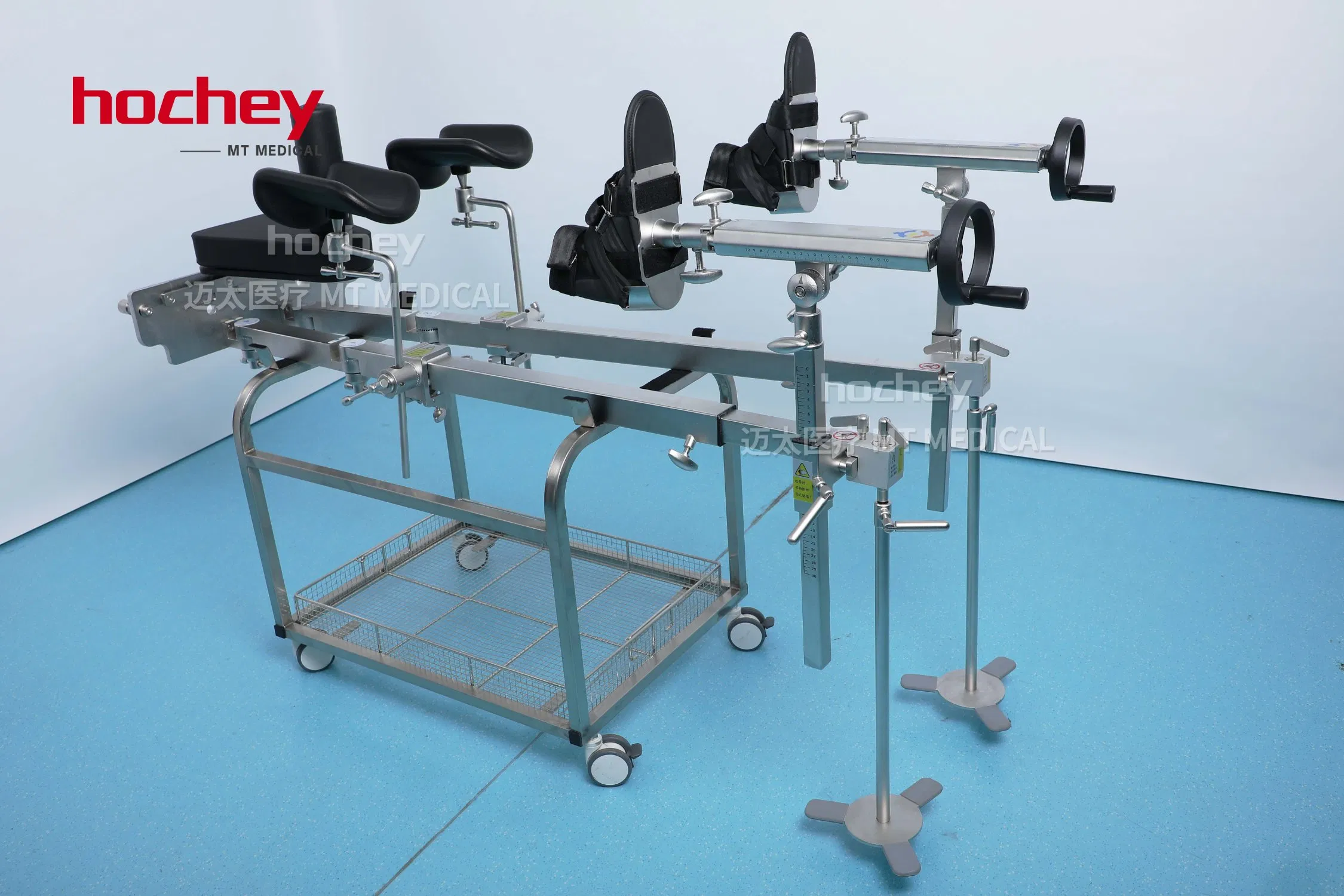

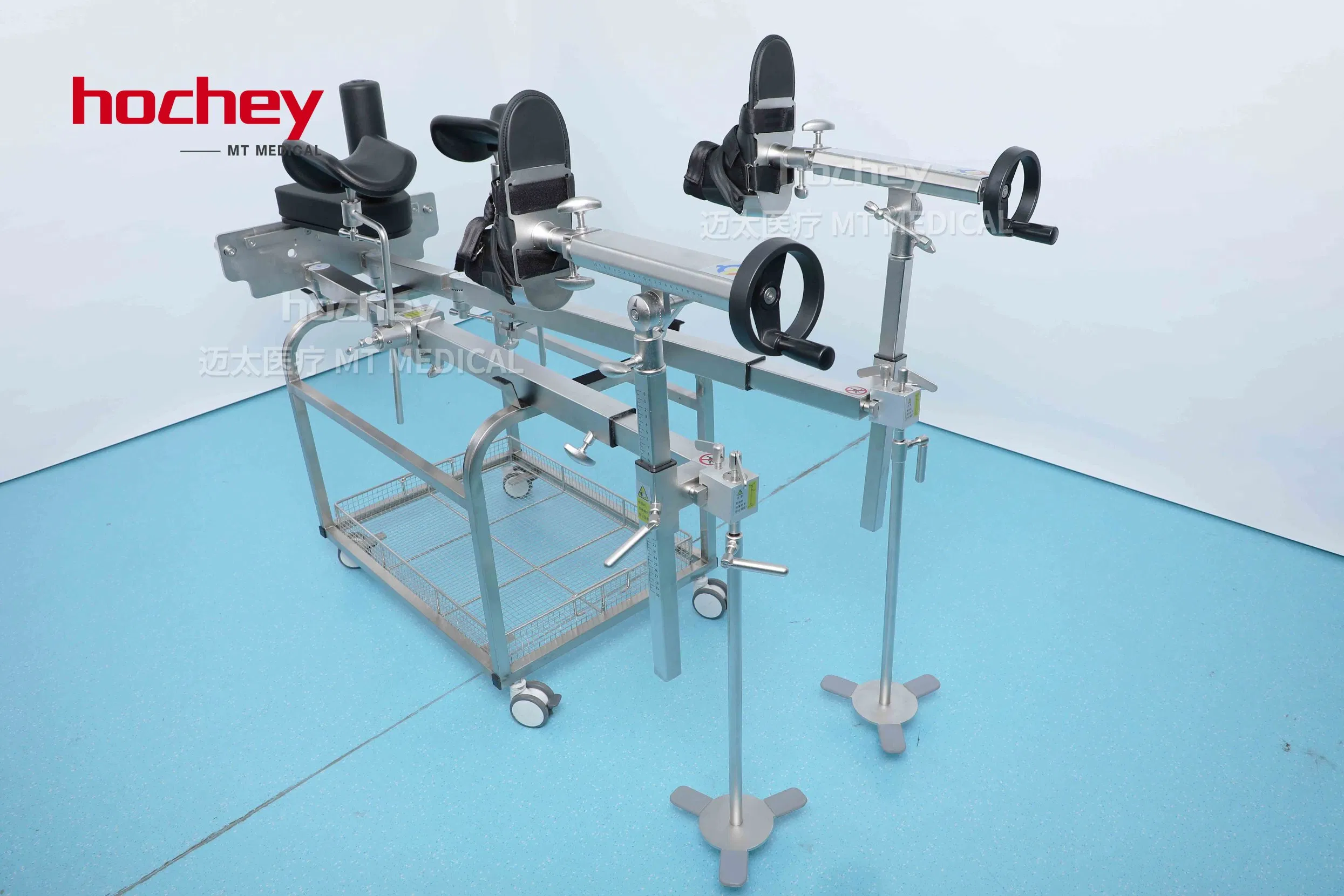

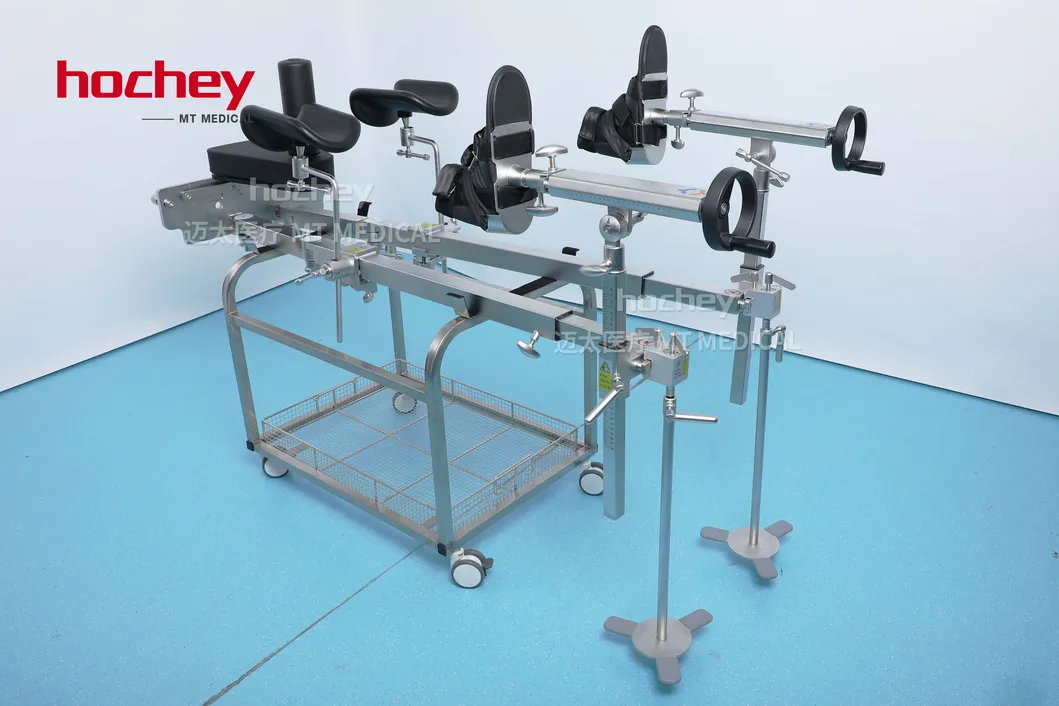

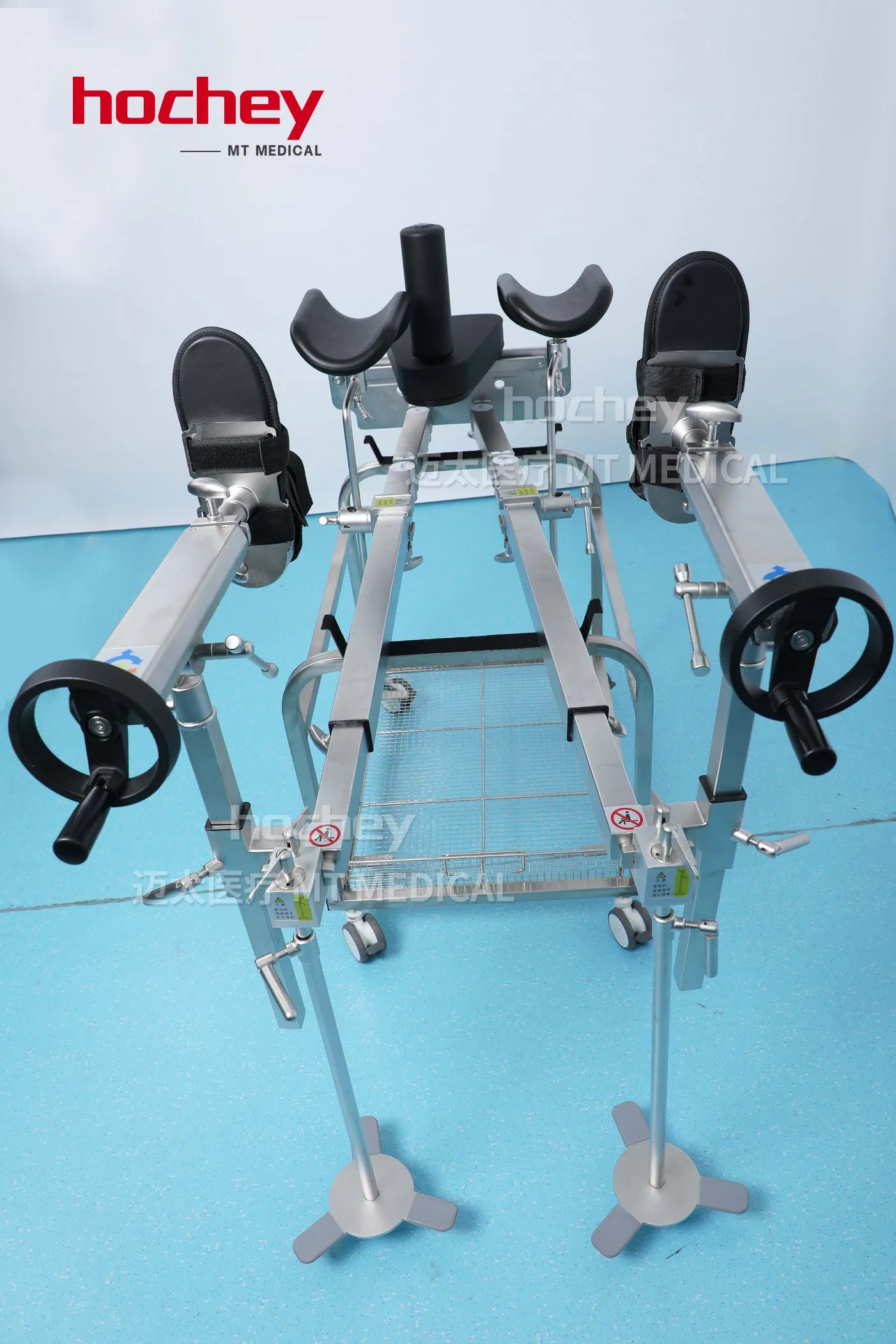

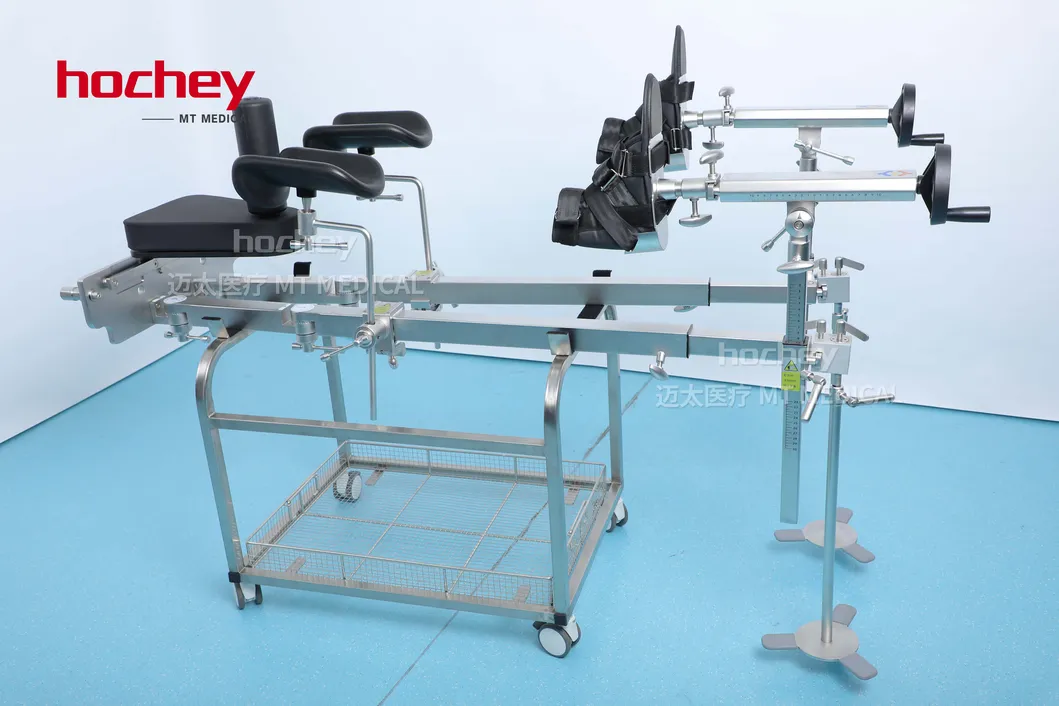

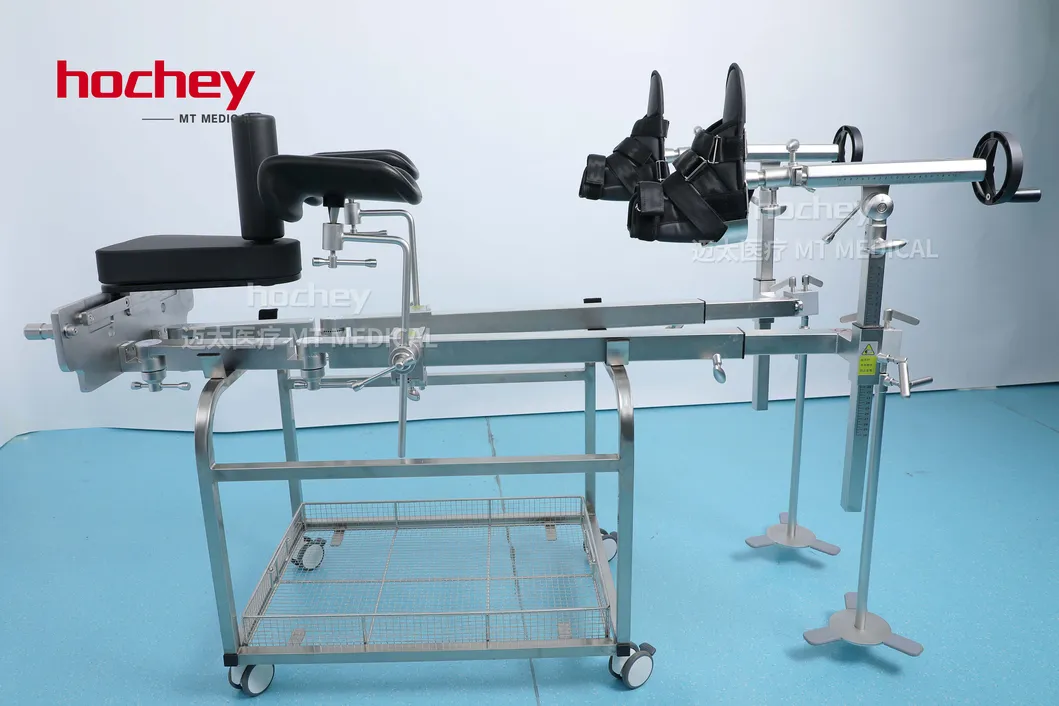

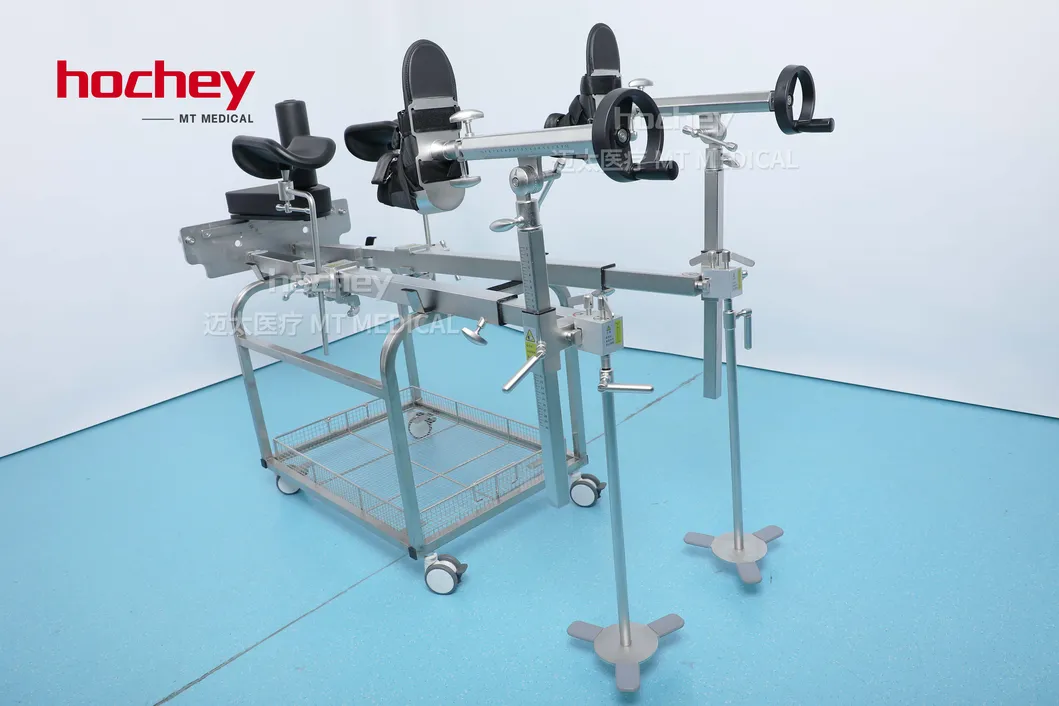

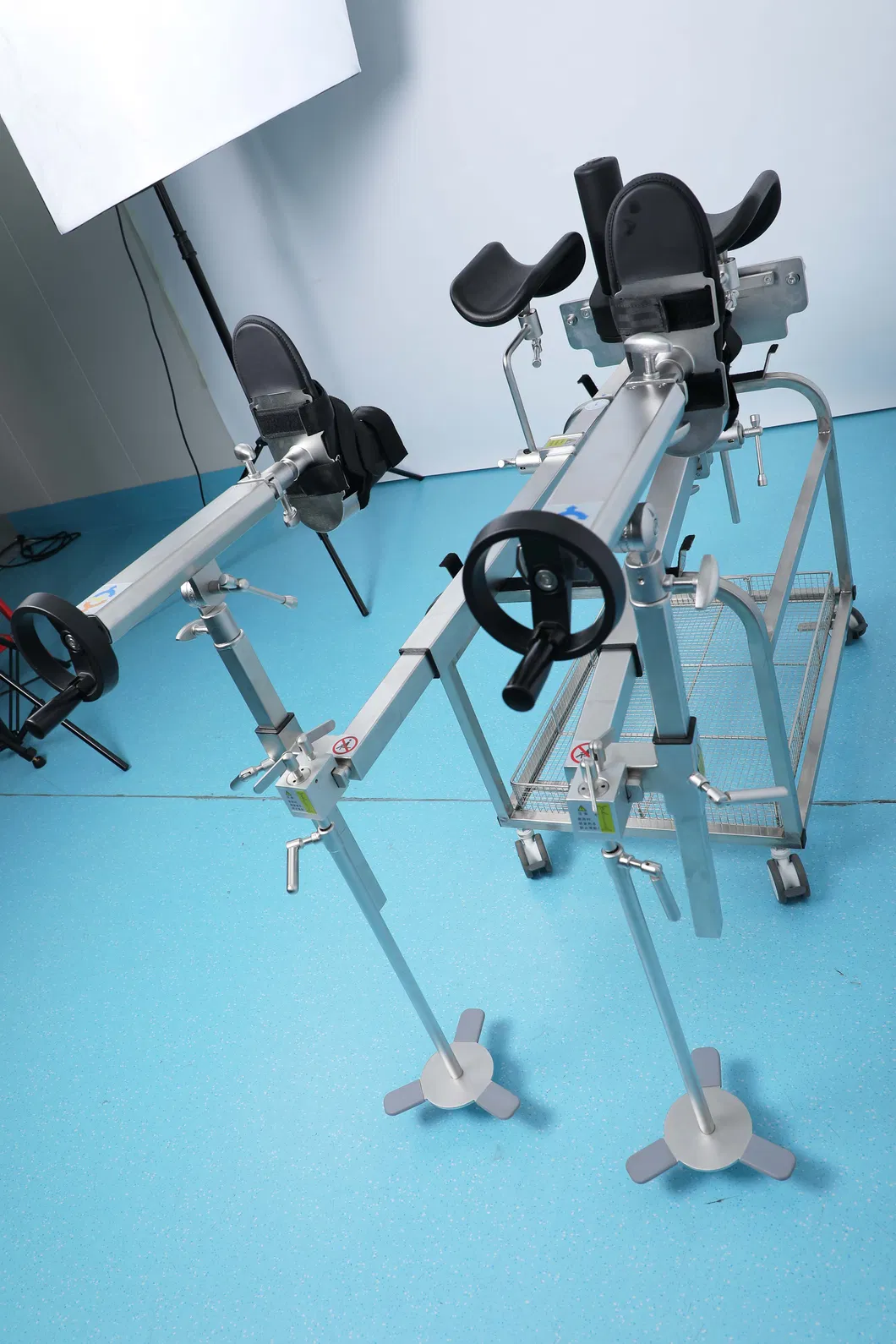

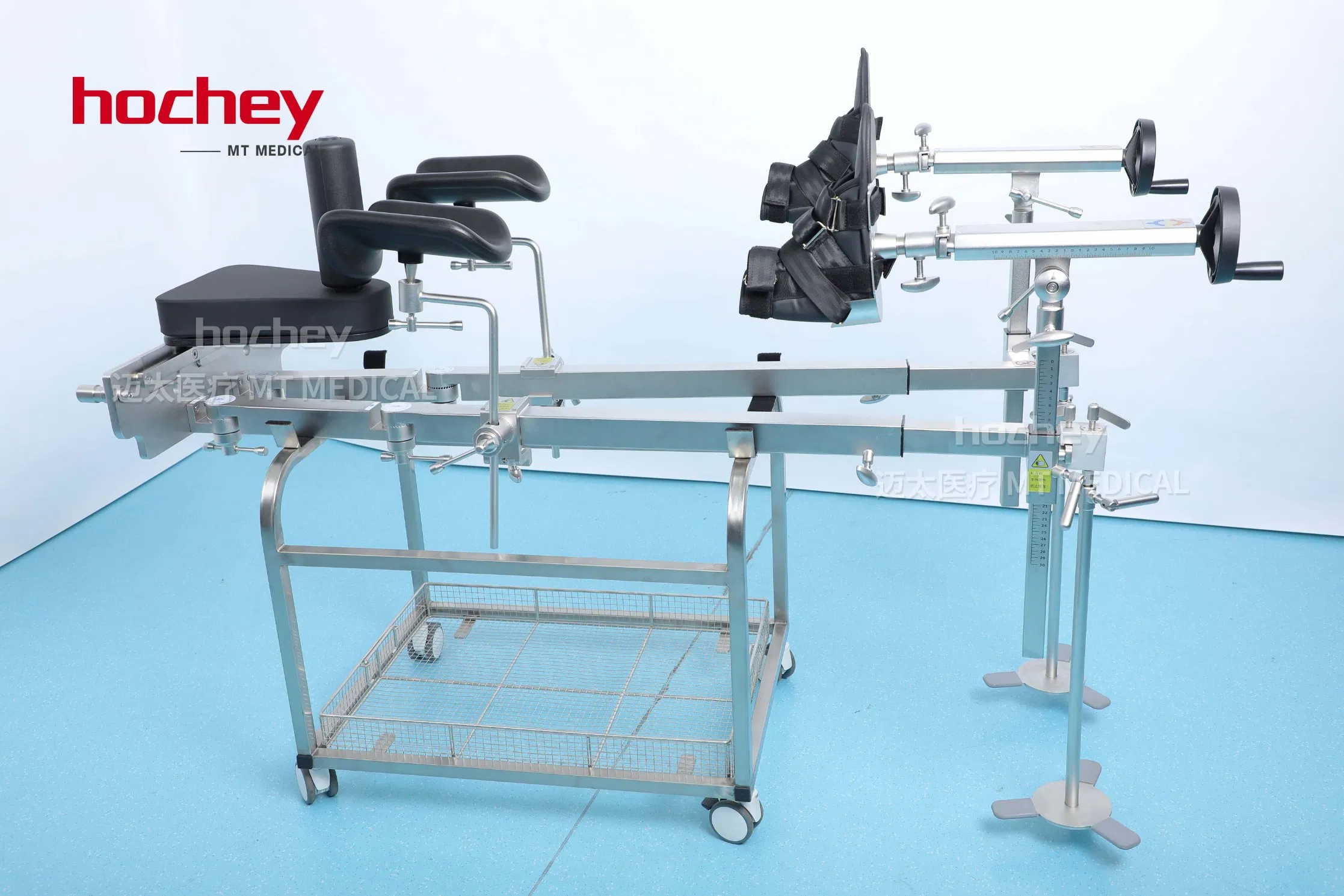

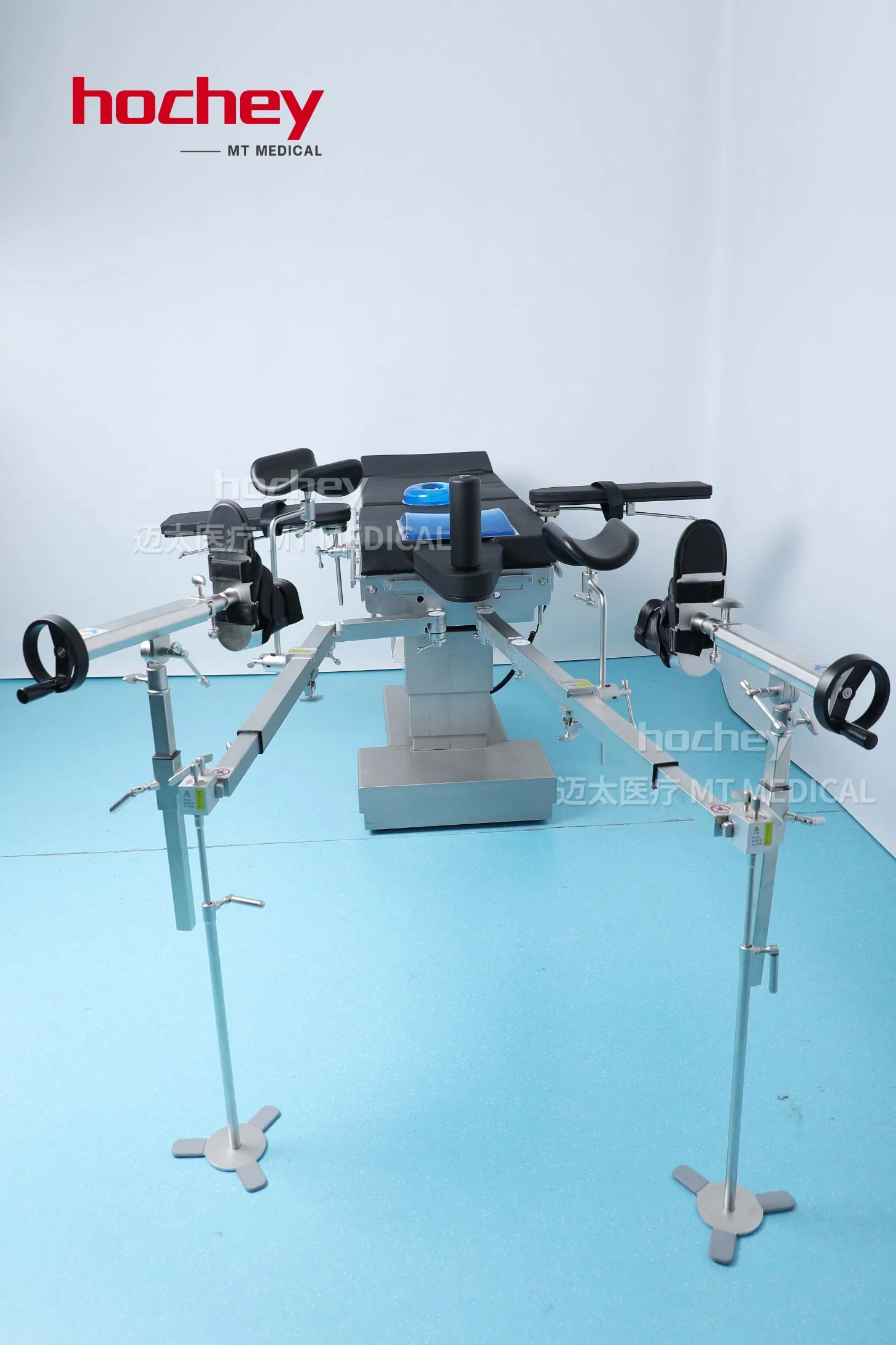

Suspended orthopedics traction frame
The whole traction frame is made of 304 stainless steel, the key Angle adjustment parts are tightened by end teeth, and the key parts are formed by precision casting. The traction frame is double-joint design and has a telescopic extension rod, which can be converted from multiple angles to ensure a wide field of view during surgery.

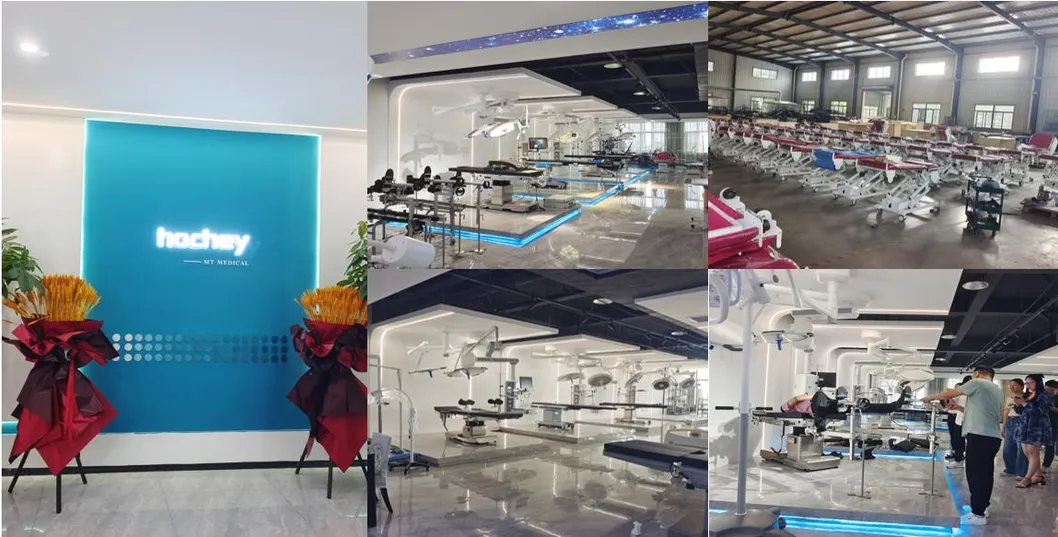

The company has more than 100,000 square meters workshops. From 1998, we are working to research and develop Operation table, Operation lamp, Ceiling pendant, Hospital bed, patient monitor, medical stretcher, medical trolley, x-ray film viewer, medical cabinet, and other medical furnitures.
Our products were sold to the middle east, Southeast Asia, the Commonwealth of the Independent States, Africa, South America and some European markets. Striving for technical innovation and guarding life is our core mission.
