Medical Wall Mount Bracket for Patient Monitor Use

1 / 5

Medical Wall Mount Bracket for Patient Monitor Use

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

PM-1001

Application

Clinical, Hospital, Patient Ward

Material

Aluminum Alloy

Weight

2kg

Bearing Capacity

20kg

Rail Size

360*100mm

Arm Size

250mm or Customized

Origin

China

Key Features

High-grade aluminum alloy construction with oxidation surface treatment for durability.
Full range of motion: supports up and down moving, as well as left and right turning.
Adjustable tray angle (more than 11°) with two movable plates to accommodate various monitor sizes.
Tray offers 360° rotation with professional damping for smooth positioning.
Compact design with a 360*100mm rail and standard 250mm arm.
Robust load-bearing performance, supporting equipment over 20kg.

Item Specification	Detail Details
Product Name	Wall Mounting Bracket
Model Number	PM-1001
Structure	Single-side Bracket
Standard	Standard Industrial Grade
Material	Premium Aluminum Alloy
Movement Direction	Up/Down Moving, Left/Right Turning

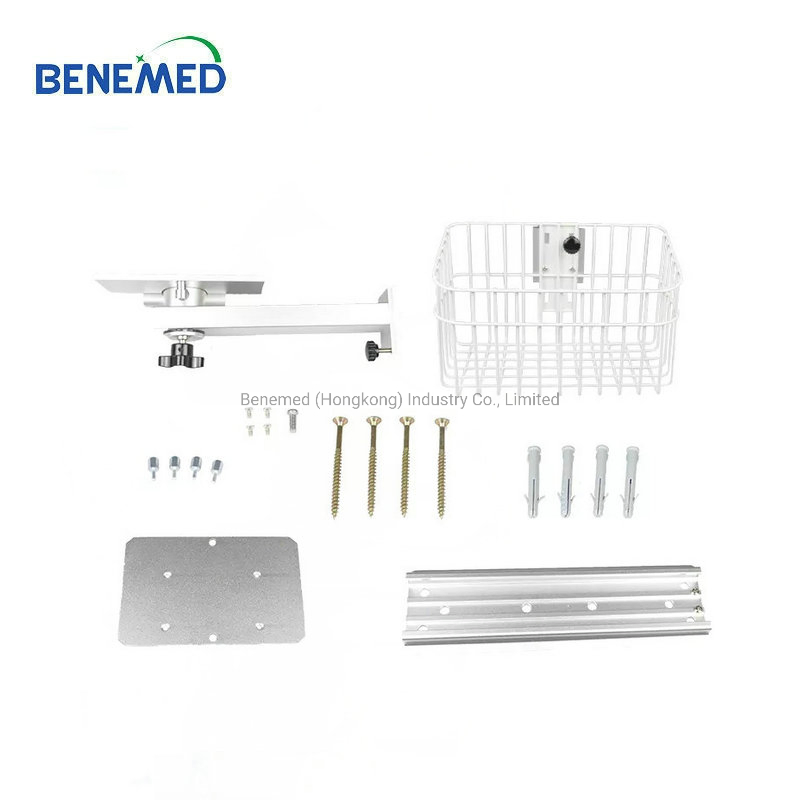

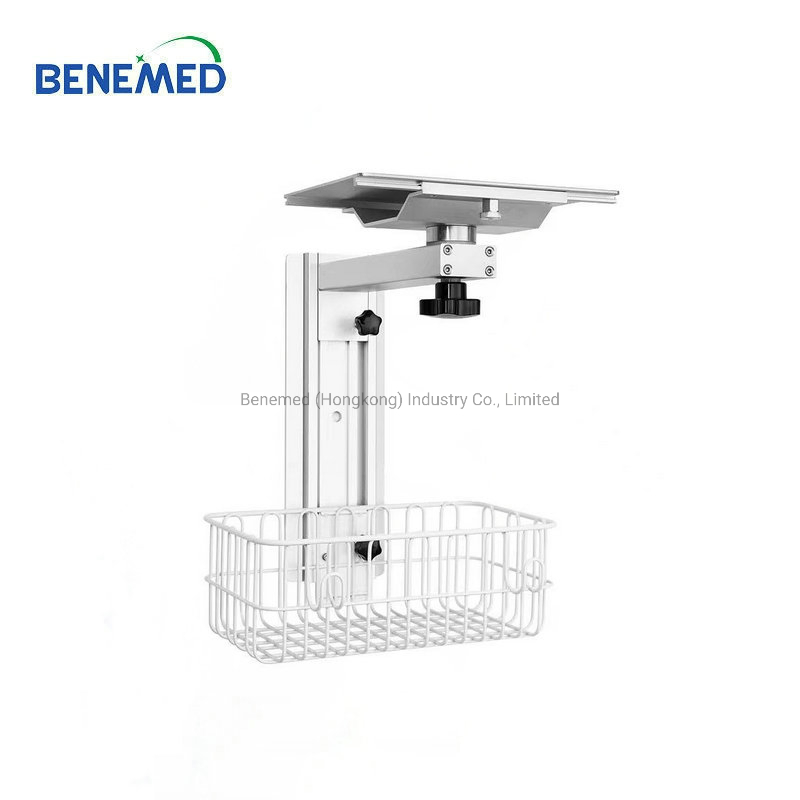

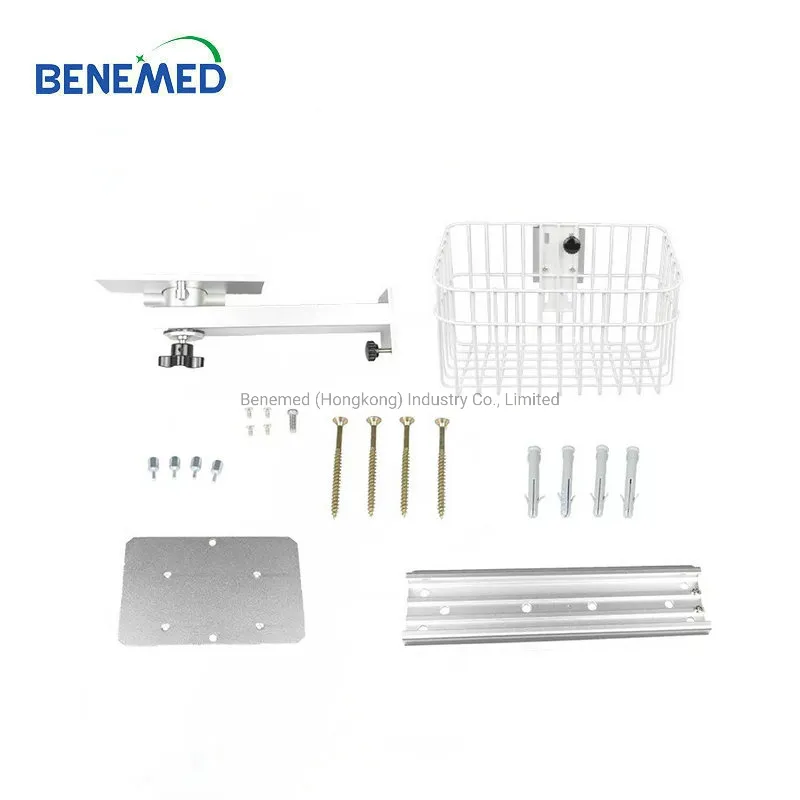

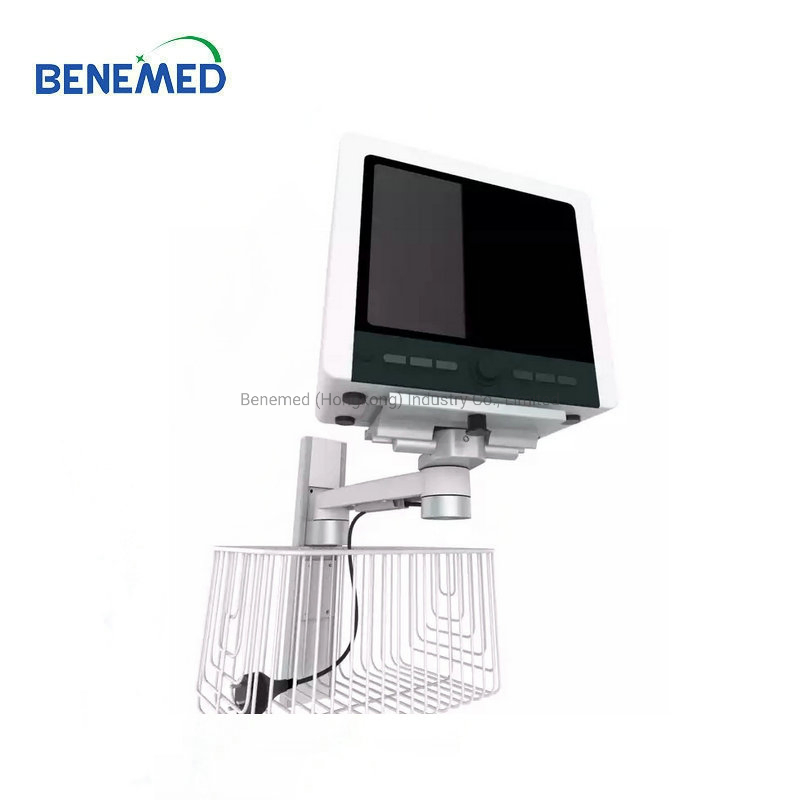

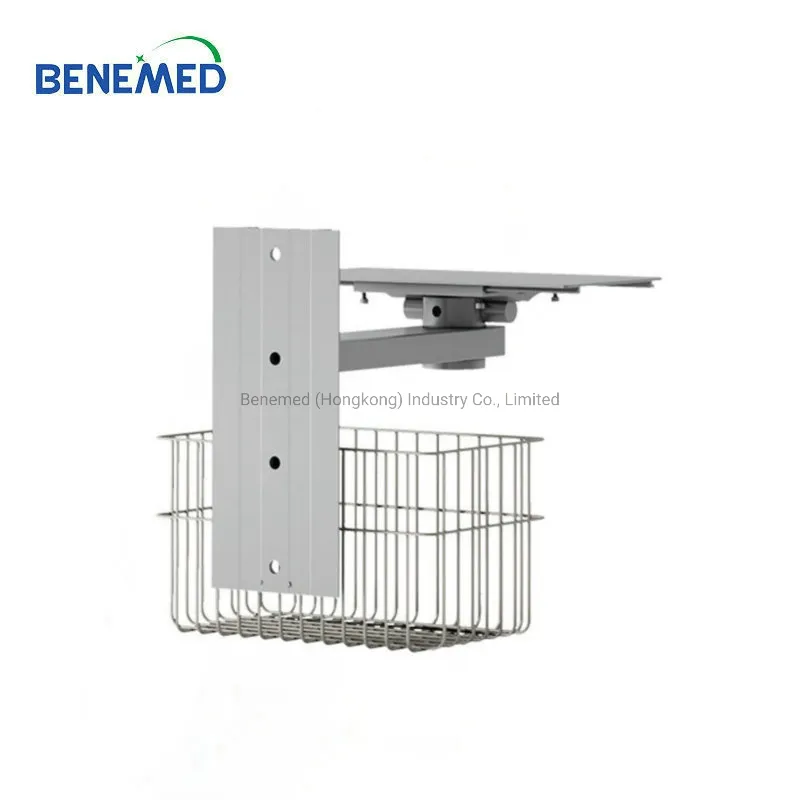

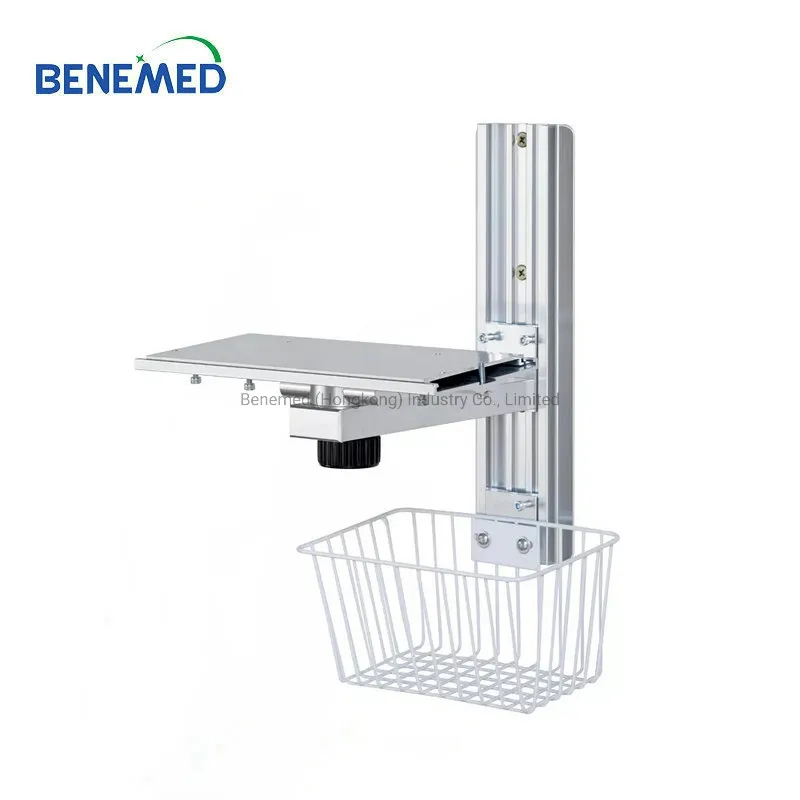

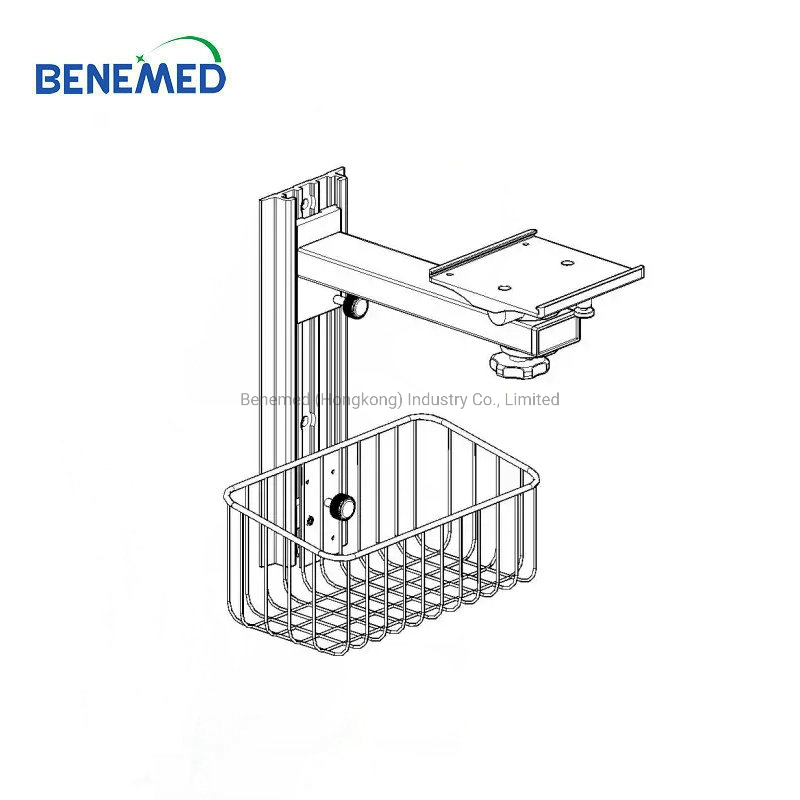

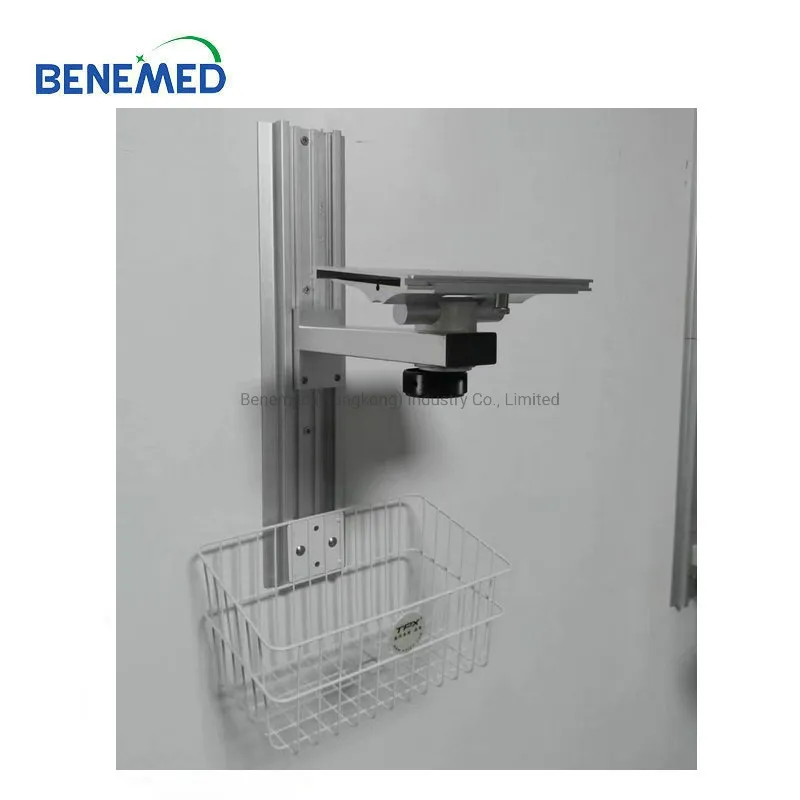

Product Visuals

Frequently Asked Questions

Q1: What materials are used in the construction of this bracket? A: The bracket is made of high-quality aluminum alloy with an oxidation surface treatment for superior strength and corrosion resistance.

Q2: What is the maximum weight capacity for this monitor mount? A: This model is designed to support a bearing load of more than 20kg, making it suitable for most medical patient monitors.

Q3: Can the tray be adjusted for different monitor sizes? A: Yes, the tray features an angle adjustment of more than 11° and includes two movable plates to accommodate monitors of various dimensions.

Q4: Does the bracket allow for full rotation? A: Yes, the tray supports 360° rotation and includes a damping system to ensure smooth and stable movement.

Q5: What are the primary applications for the PM-1001 model? A: It is primarily used in clinical environments, hospitals, and patient wards for securely mounting patient monitoring equipment.

Q6: Are the arm and tray sizes customizable? A: Yes, while standard sizes are provided (Arm: 250mm, Tray: 290/220mm), they can be customized according to specific clinical requirements.
