Basic Information
Material
Rigid Carbon Steel with Powder Coating
Motor
24V, 8000n (Moteck)
Battery
Lead Acid Battery
Using Time
60 Times After Fully Charging
Specification
1200x670x1330mm
Technical Specifications
- Product Size: 1200x670x1330mm (LxWxH)
- Maximum Fork Range: 790mm
- Lifting Range: 550mm (lowest) to 1660mm (highest)
- Input Power: DC24V
- Net Weight: 45kg
- Noise Level: <50dB
- Operation Note: This model cannot work while it is charging.
| SN5778 Detailed Data |
| Endurance |
Generally 60 times after full charged |
| Max Speed |
8.1mm/s at no load |
| Width Adjusting |
600-790mm |
| Basement Height |
120mm |
| Front/Rear Wheel |
3 inch / 4 inch (Castor with Brake) |
| Frame Color |
Red, Blue, Silver, Black (Optional) |
| Packing Size |
1250x650x340 cm |

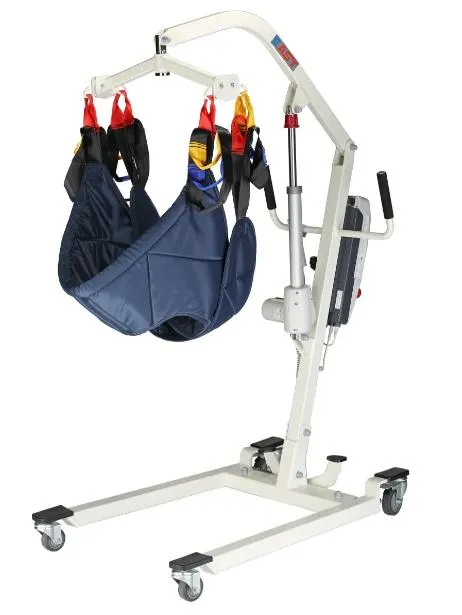

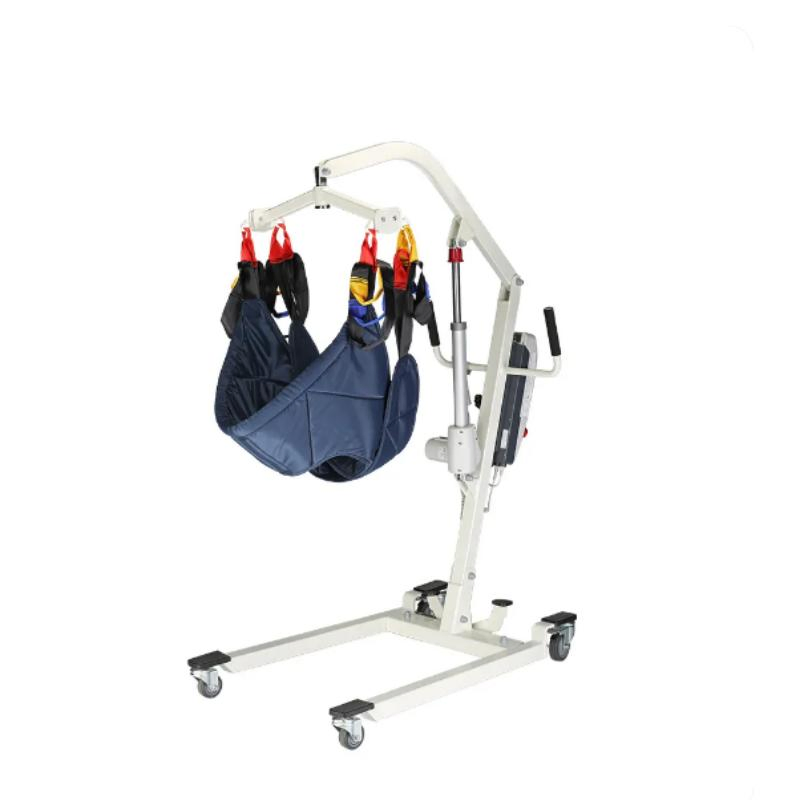

Product Display
Frequently Asked Questions
What is the maximum weight capacity of the SN5778?
The SN5778 rigid heavy-duty mechanical lift is designed to handle a maximum bearing capacity of 180kgs.
How many times can it be used on a single full charge?
Under normal conditions, the lead-acid battery can sustain lifting up and down not less than 60 times after a full charge.
Can the device be operated while it is connected to the charger?
No, for safety reasons, this specific model is designed so that it cannot work while it is charging.
What is the lifting range and speed?
The lifting range is between 550mm (lowest) and 1660mm (highest), with a maximum speed of 8.1mm/s at no load.
Is the lift noisy during operation?
The system operates quietly with a noise level of less than 50dB, ensuring a comfortable environment for patients.
What are the main materials used in construction?
The frame is constructed from rigid carbon steel with a high-quality powder coating for durability and strength.
